TSD 1024x768 resolution 15 inch IPS TFT LCD display for automotive

  • Model Name: TST150XGLH-I03
  • LCD Type: 15 inch TFT LCD display
  • Resolution: 1024x768
  • Viewing angle: All o'clock
  • Brightness: 800 cd/m2
  • Surface treatment: Anti-Glare
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -40 ~ +80℃





Description:



TST150XGLH-03 is aTFT Liquid Crystal Display lAV module with LED Backlight units and 20 pins LVDSinterface.This module supports 1024 x 768 XGA mode and can display 16.7M/262k colors.

The PsWG is to establish a set of displays with standard mechanical dimensions and select electricalinterface requirements for an industry standard 15.0” XGA LCD panel and the LED driving device forBacklight is built in PCBA.

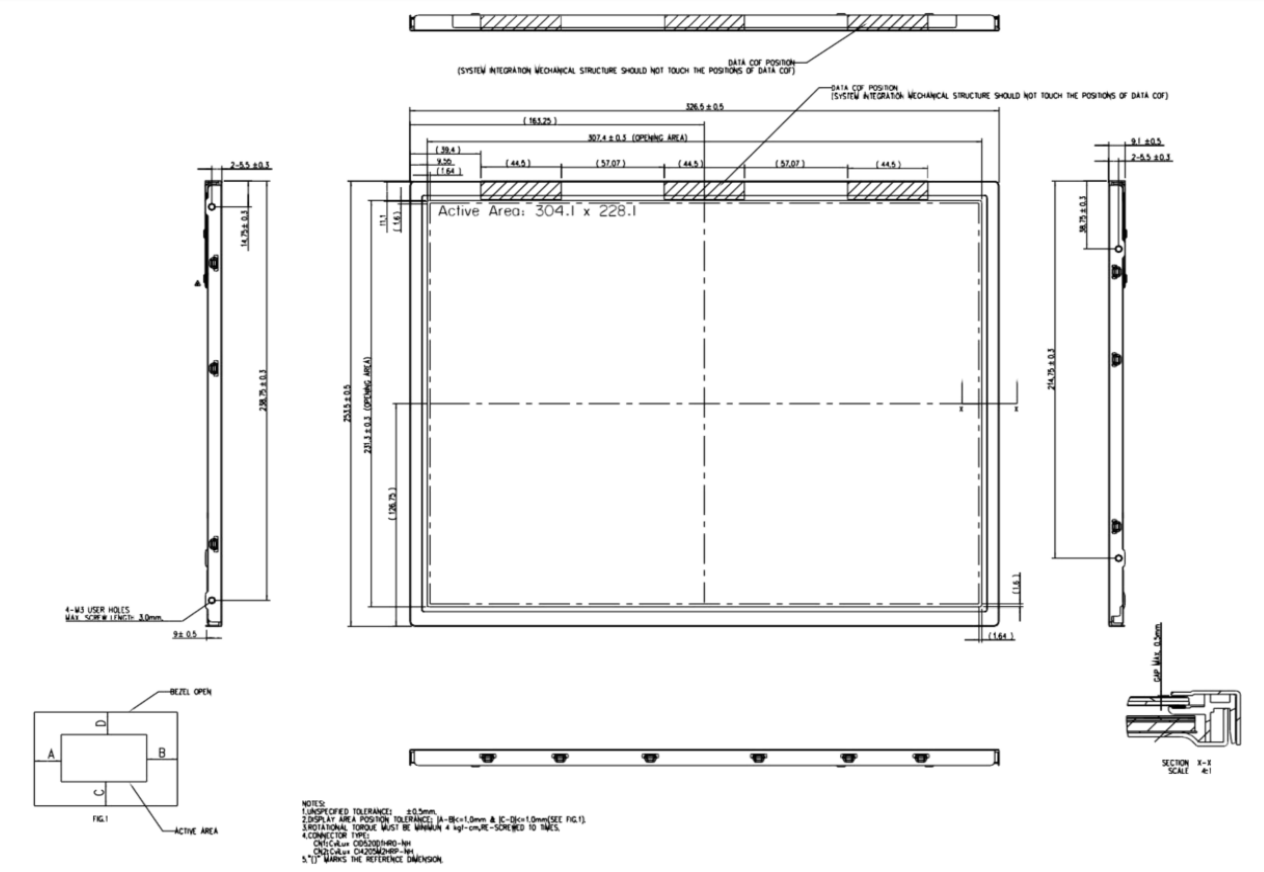

Drawing:



15 inch LCD


Specifications:



General Specification
Part No.  TST150XGLH-03
Outline Dimension(mm)  326.50x253.5x9.1mm
Active Area(mm) 304.1x228.1mm
Resolution(dots) 1024x768
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -40 ~ +80°C
Number of Pixel(pixels) 1024(H)xRGBx768(V)
Touch panel  without
Brightness 800 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 15 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface LVDS
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 VCC Power Supply +3.3V(typical)
2 VCC Power Supply +3.3V(typical)
3 NC No connection
4 LR/UD

Reverse Scan Control
H or NC = Normal Mode.

L = Horizonta/ Vertical Reverse Scan.

5 RX0- LVDS Differential Data Input (Negative)
6 RX0+ LVDS Differential Data Input (Postive)
 7 GND Ground
 8 RX1- LVDS Differential Data Input (Negative)
 9 RX1+ LVDS Differential Data Input (Positive)
10 GND Ground
11 RX2- LVDS Differential Data Input (Negative)
12 RX2+ LVDS Differential Data Input (Positive)
13 GND Ground
14 RXCLK- LVDS Differential Data Input (Negative)
15 RXCLK+ LVDS Differential Data Input (Positive)
16 GND Ground
17 RX3- LVDS Differential Data Input (Negative)
18 RX3+ LVDS Differential Data Input (Positive)
19 NC No connection
20 SEL68 LVDS6/8 bit selectfunction control,
High → 6bit Input Mode
Low or NC → 8bit Input Mode




Features:

  •
  •  XGA (1024 x 768 pixels) resolution
    - DE (Data Enable) only mode
    - LVDS Interface with 1pixel/clock
    - PSWG (Panel Standardization Working Group)
    - Wide operating temperature. - RoHS compliance
  •


  • Applications:

  • -TFT LCD Monitor
    - Factory Application
    - Amusement - Vehicle
