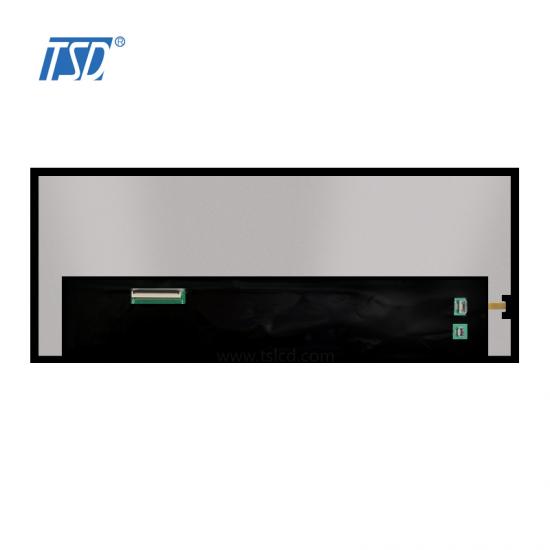

TSD 1920x720 resolution 15 inch IPS TFT LCD display for automotive

  • Model Name: TST150FHHH-05
  • LCD Type: 15 inch TFT LCD display
  • Resolution: 1920x720
  • Viewing angle: All o'clock
  • Brightness: 1100 cd/m2
  • Surface treatment: Anti-Glare
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -40 ~ +90℃





Description:



TST150FHHH-05 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a Backlight, a driving circuit.This TFT LCD has a 15.0 inch diagonally measured active display area with 1920 horizontal by 720 vertical pixel resolution.




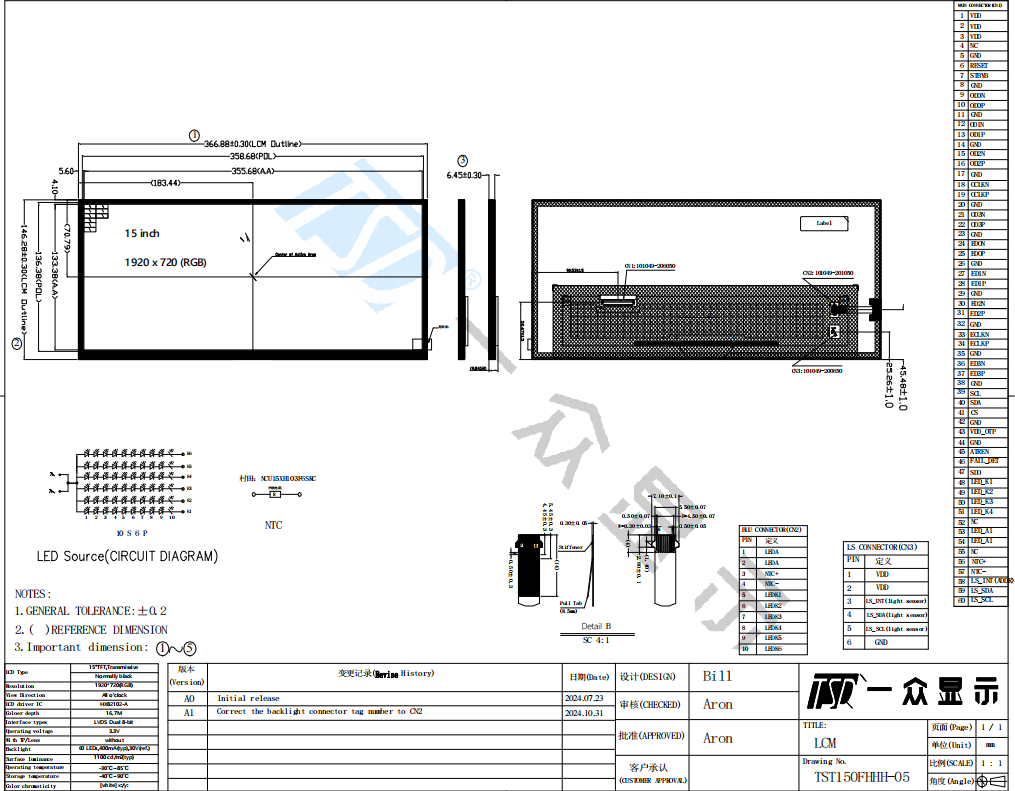

Drawing:



15 inch lcd


Specifications:



General Specification
Part No.  TST150FHHH-05
Outline Dimension(mm)  366.88x146.28x6.45mm
Active Area(mm) 355.68x133.38mm
Resolution(dots) 1920x720
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 1920(H)xRGBx720(V)
Touch panel  without
Brightness 1100 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 15 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface LVDS
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 VDD Power Supply +3.3V(typical)
2 VDD Power Supply +3.3V(typical)
3 VDD Power Supply +3.3V(typical)
4 NC

No connection

5 GND Ground
6 RETX Reset
7 STBYB Standby mode
8 GND Ground
9 RXO_0N LVDS input data 0 pair of port
10 RXO_0P LVDS input data 0 pair of port
11 GND Ground
12 RXO_1N LVDS input data 1 pair of port
13 RXO_1P LVDS input data 1 pair of port
14 GND Ground
15 RXO_2N LVDS input data 2 pair of port
16 RXO_2P LVDS input data 2 pair of port
17 GND Ground
18 RXO_CKN LVDS input data CLK pair of port
19 RXO_CKP LVDS input data CLK pair of port
20 GND Ground
21 RXO_3N LVDS input data 3 pair of port
22 RXO_3P LVDS input data 3 pair of port
23 GND Ground
24 RXO_0N LVDS input data 0 pair of port
25 RXO_0P LVDS input data 0 pair of port
26 GND Ground
27 RXE_1N LVDS input data 1 pair of port
28 RXE_1P

LVDS input data 1 pair of port

29 GND Ground
30 RXE_2N LVDS input data 2 pair of port
31 RXE_2P LVDS input data 2 pair of port
 32 GND Ground
 33 RXE_CKN LVDS input data CLK pair of port
 34 RXE_CNP LVDS input data CLK pair of port
35 GND Ground
36 RXE_3N LVDS input data 3 pair of port
37 RXE_3P LVDS input data 3 pair of port
38 GND Ground
39 LCM_SCL LCM SCL for IIC
40 LCM_SDA LCM SDA for IIC
41 LCM_CS Chip select for SPI
42 GND Ground
43 VDD_OTP No connect
44 GND Ground
45 ATREN
Enable auto reload OTP/EEPROM every 60 frames.
When stop reload or changing register values by SPI/I2C, ATREN should be kept 0
46 Fail_DET Panel fail mode detection signal
47 NC No connection
48 LEDK1 Cathode1
49 LEDK2 Cathode2
50 LEDK3

Cathode3

51 LEDK4 Cathode4
52 NC No connection
53 LEDA1 LED power (Anode)
54 LEDA2 LED power (Anode)
55 NC No connection
56 NTC+ NTC_Anothe
57 NTC- NTC_Cathode
58 LS-INT(ADDR) Light sensor
59 LS_SDA Light sensor
60 LS_SCL Light sensor




Features:

  •
  • - 1920 x 720 resolution
    - DE (Data Enable) only mode
    - LVDS Interface
    - PSWG (Panel Standardization Working Group)
    - Wide operating temperature
  • - RoHS compliance
  •


  • Applications:

  • -TFT LCD Monitor
    - Factory Application
    - Amusement
  • - Vehicle
