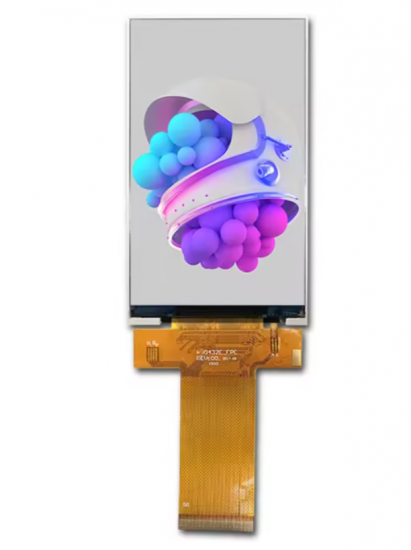

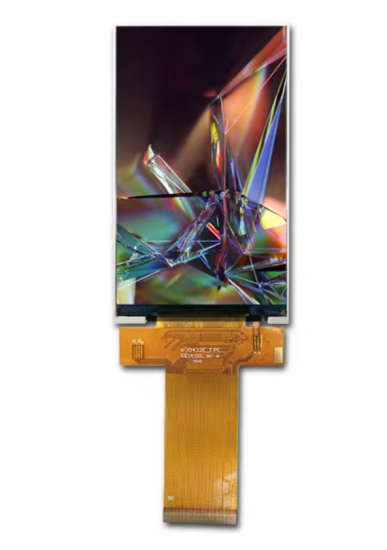

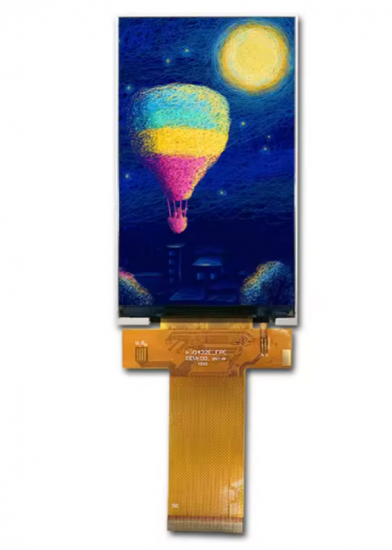

TSD Custom 2.2 Inch TFT LCD

Model Name:TST022HVVS-05

LCD Type: Normally Black, IPS

Resolution: 320xRGB×240

Viewing angle:ALL

Brightness:300

Driver IC:ST77903

Interface:RGB

Touch Screen:Yes

Operating Temperature:-20~-70

Storage Temperature:-30~-80

Description:



TST022HVVS-05 is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and capacitive touch screen. The active display area is a 21.72x52.42 measurement on the diagonal, with an active resolution of 200xRGB×480. This 2.2 inch LCD can be used to display pictures and text .

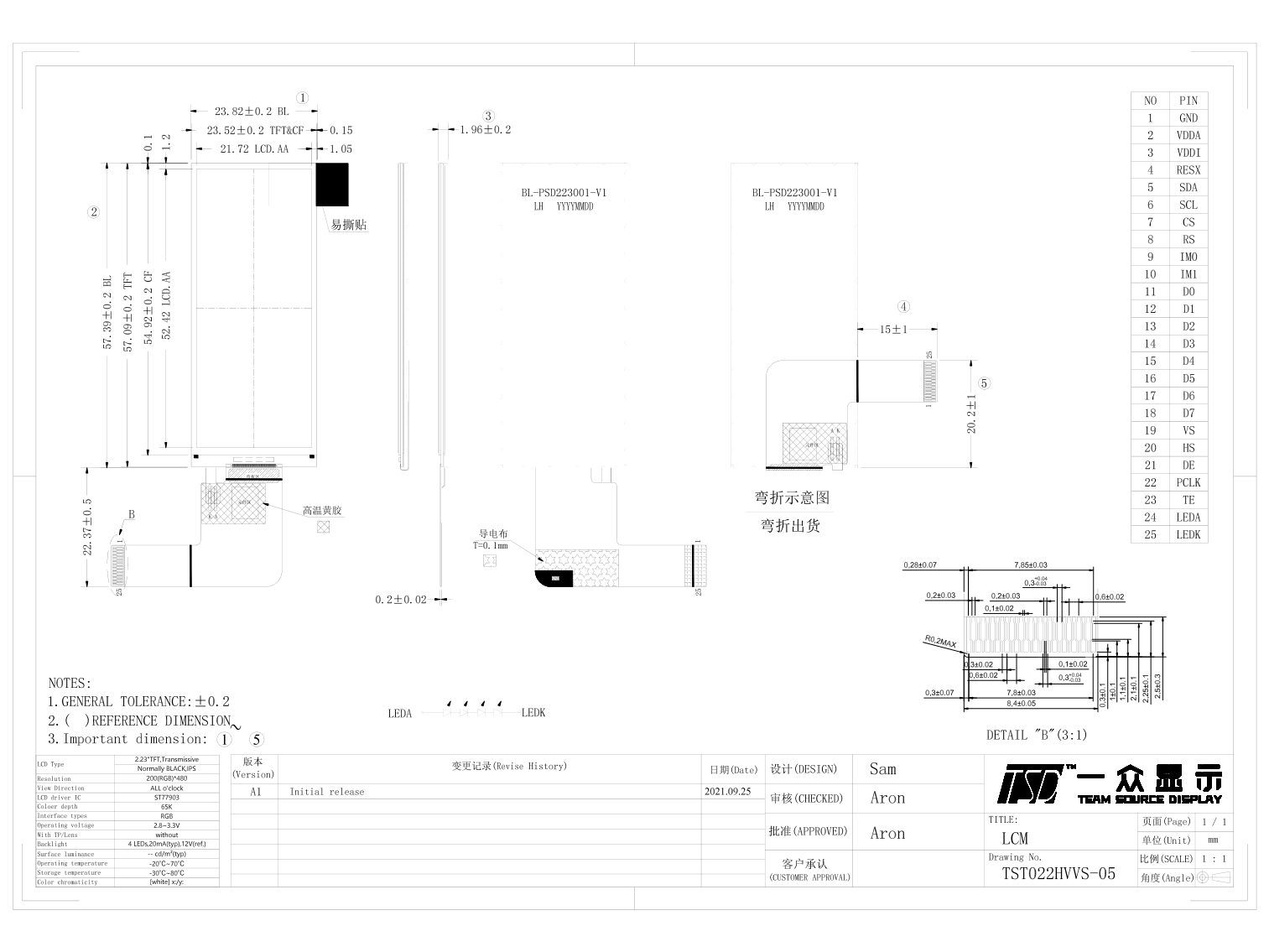

Drawing:



Specifications:



General Specification

Part No.

TST022HVVS-05

Outline Dimension(mm)

23.82x57.39x1.96

Active Area(mm)

21.72x52.42

Resolution(dots)

200xRGB×480

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Color depth

65K

Touch panel

No

Driver IC

ST77903

Display mode

Normal Black,IPS

Surface treatment

-

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

RGB

Module lifetime(Hours)

50,000-100,000





Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.



Security Products: elevator controller, electronic indicator.
