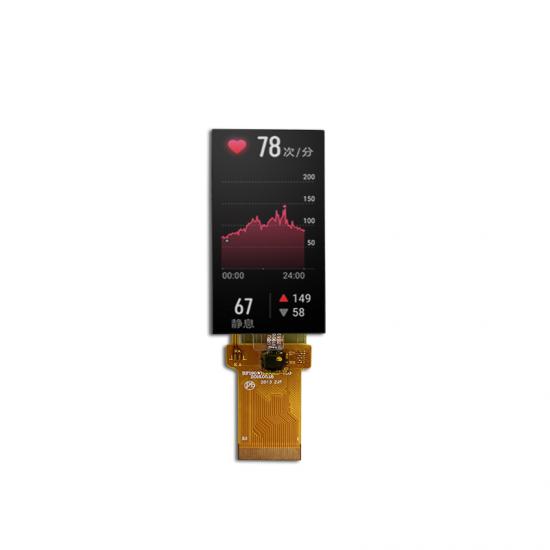

TSD High resolution 200x480 resolution 2.2 inch IPS TFT LCD display

  • Model Name: TST022HVVS-05
  • LCD Type: 2.23 inch TFT LCD display
  • Resolution: 200x480
  • Viewing angle: All o'clock
  • Brightness: 300 cd/m2
  • Driver IC: ST77903
  • Interface: RGB
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST022HVVS-05 is 2.23 inch 200x480 resolution RGB interface LCD display module, without standard capacitive touch panel. Backlight is 300 nits, White LEDs is 4, backlight current is 20mA and backlight voltage is 12V, which could be customized. For this 2.23 inch TFT LCD module, driver IC is ST77903, viewing direction is free, all o'clock, color depth is 65K, white backlight and transmissive mode.

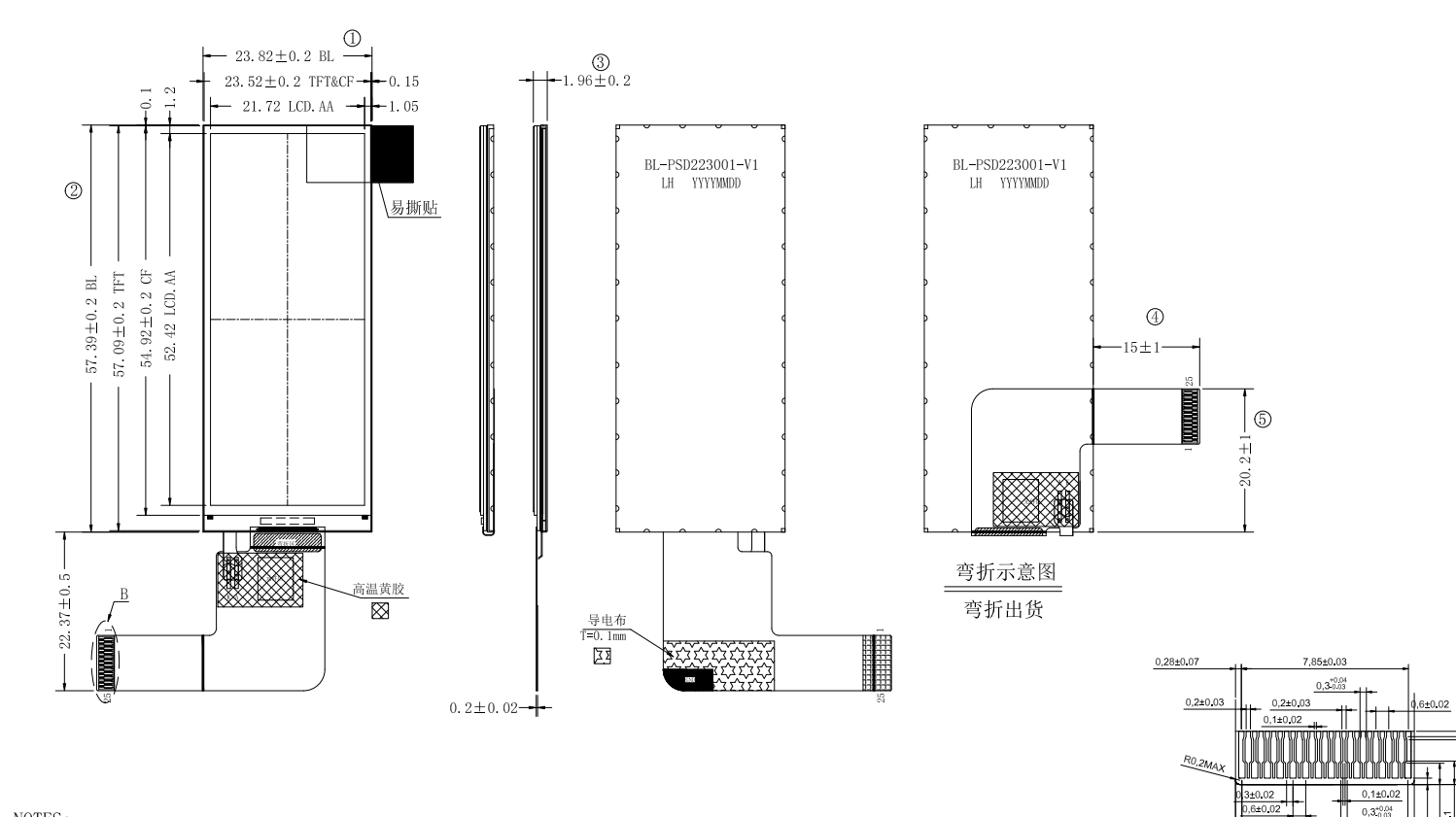

Drawing:




Specifications:



General Specification
Part No.  TST022HVVS-05
Outline Dimension(mm)

23.82x57.39x1.96

Active Area(mm) 21.72x52.42
Resolution(dots) 200x480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 200xRGBx480(V)
Touch panel  w/o CTP
Driver IC ST77903
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 2.23 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB
Module lifetime(Hours) 20,000-30,000





Pins Description
Pin No.  Symbol
1 GND
2 VDDA
3 VDDI
4 RESX
5 SDA
6 SCL
7 CS
8 RESET
9 IM0
10 IM1
11 D0
12 D1
13 D2
14 D3
15 D4
16 D5
17 D6
18 D7
19 VS
20 HS
21 DE
22 PCLK
23 TE
24 LEDA
25 LEDK




Applications:



For our 2.23 inch LCD display TST022HVVS-05, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 2.23" contains 200x480 dots and can display up to 65k colors.
