800x480 resolution 4.3 inch ips lcd display with RGB interface

Inquiry now Data sheet

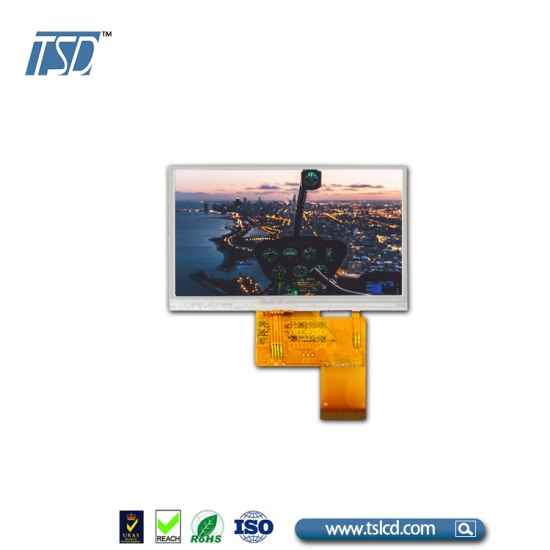

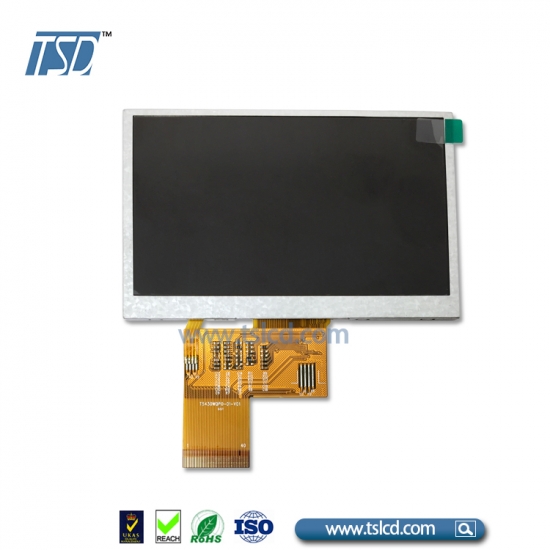

800x480 resolution 4.3 inch ips lcd display with RGB interface

Specification
Part No.	TST043WVBS-79
Outline Dimension(mm)	105.50x67.20x2.95
Active Area(mm)	95.04x53.86
Resolution(dots)	800RGB480
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Number of Pixel(pixels)	800RGB(H)xRGBx480(V)
Touch panel	without
Driver	ST7262E43
Pixel arrangement	RGB Vertical stripe
Display mode	IPS, 4.3 inch IPS TFT
Brightness	400~440 nits
View direction	ALL
Weight(g)	TBD
Power Consumption(w)	Panel	0.226(Typ.)
	B/L system	1.674(Typ.)
Interface	RGB
Module lifetime(Hours)	20,000-30,000

Get A Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 800x480 resolution 4.3 inch ips lcd display with RGB interface

Tags :

Related products

High brightness 800x480 resolution 4.3 inch ips lcd display

TSD 4.3 inch 800x480 TFT LCD with CTP

Model Name: TST043WVBS-139C LCD Type: 4.3 inch TFT LCD display Resolution: 800x480 Viewing angle: All o'clock Brightness: 800 cd/m2 Driver IC: ST7262E43 Touch IC: FT5446DQS Interface: RGB 24 bit Touch Screen: with capacitive touch panel Operating Temperature: -30 ~ +80℃ Storage Temperature: -30 ~ +80℃

TSD 4.3 inch 800x480 TFT LCD Module

Model Name: TST043WVBS-139 LCD Type: 4.3 inch TFT LCD display Resolution: 800x480 Viewing angle: All o'clock Brightness: 800 cd/m2 Driver IC: ST7262E43 Interface: RGB 24 bit Touch Screen: without capacitive touch panel Operating Temperature: -30 ~ +80℃ Storage Temperature: -30 ~ +80℃

TSD 5 inch 720*1280 res MIPI interface IPS vertical type

Model Name: TST050HDBS-128 LCD Type: 5 inch TFT LCD display Resolution: 720*1280 Viewing angle: IPS all viewing angle Brightness: 380 cd/m2 Driver IC: ST7703 Interface: MIPI Touch Screen: without Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃

IPS 3.5 inch 320x480 380 nits 700:1 MCU/SPI+RGB interface TFT lcd display with touch panel

LCD Size: 3.5''(Normal, IPS). Brightness can be designed per customer's needs FPC Design: Customized Interface and Pins definition/Customized FPC Shape and Material LCD Viewing Angle: Full range of IPS LCD Options Super-wide viewing angle Glare or Anti-glare Polarizer O-film solution Backlight(BL) design: Customized Outline Dimension BL Frame Material: Meta/Plastic/Metal & Plastic integrated/Lifetime up to 30K hours high brightness up to 380 nits Customized CTP 0.96-50 inch: Slide, Single-touch in-cell, on-cell, G+G, G+F, GGG industry or automotive CTP solutions with OCA, OCR optical bonding

TSD 480 x272 resolution 4.3 inch touch lcd display SSD1963 board with MCU interface

Model Name: TSM043WQHS-99C LCD Type: 4.3 inch IPS TFT display Resolution: 480x272 Viewing angle: All o'clock Brightness: 650 cd/m2 Driver IC: SSD1963 Interface: MCU Touch Screen: with Capacitive touch panel Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃

TSD 1.3 inch 240x240 TFT lcd for smart watch

Model Name: TST013QVHS-07 LCD Type: 1.3 inch TFT LCD display Resolution: 240x240 Viewing angle: All o'clock Brightness: 550 cd/m2 Driver IC: ST7789V3 Interface: 4 wire SPI interface Touch Screen: without Capacitive touch panel Operating Temperature: -10 ~ +60℃ Storage Temperature: -20 ~ +70℃

TSD Full HD high resolution 1080*1920 resolution 5.5 inch IPS TFT LCD display with MIPI interface

Model Name: TST055FHIH-10 LCD Type: 5.5 inch TFT LCD display Resolution: 1080*1920 Viewing angle: IPS all viewing angle Brightness: 430 cd/m2 Driver IC: HX8399-A Interface: MIPI Touch Screen: without Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
