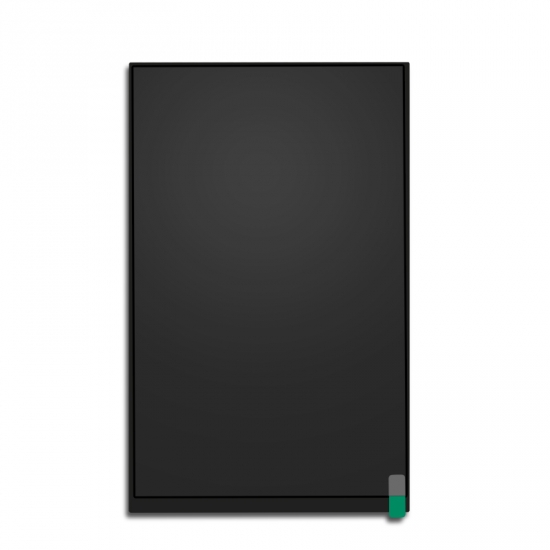

TSD 1200x1920 resolution 8.0 inch IPS TFT LCD display with MIPI interface

  • Model Name: TST080WUM-NL0
  • LCD Type: 8 inch TFT LCD display
  • Resolution: 1200*1920
  • Viewing angle: IPS all viewing angle
  • Brightness: 390 cd/m2
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST080WUM-NL0 is 8 inch 1200*1920 resolution LCD display with mipi interface, standard brightness is 390cd/m2. For this 8 inch TFT LCD module,   viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, Contrast is 900:1. this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. This 8 inch tft lcd is suitable used in handheld device machine.



Specification
Part No. TST080WUM-NL0
Outline Dimension(mm) 114.6x 184.1x 2.15
Active Area(mm) 107.64 x 172.224
Resolution(dots) 1200*RGB*1920
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1200RGB(H)xRGBx1920(V)
Touch panel without, available to custom
Dot Pitch 0.0299(W)x0.0897(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 8.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface MIPI
Module lifetime(Hours) 50,000-100,000

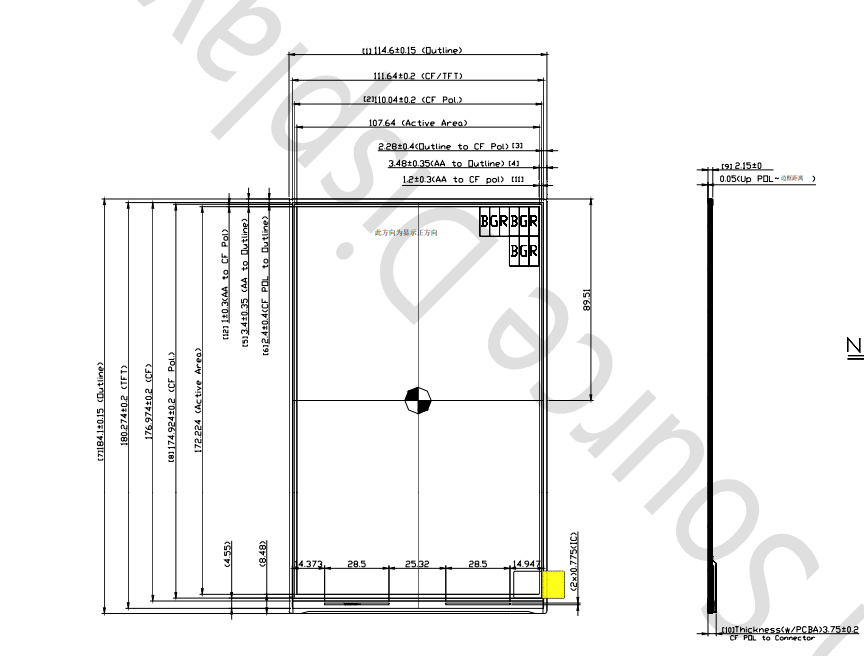

Drawing:

Interface Description:

Pin No.  Symbol Description
1-4 VCC Power supply(3.3V)
5-6 NC No connect
7 LED PWMIN PWM input
8 LED PWMOUT PWM output
9-10 NC No connect
11 GND Ground.(0V)
12 D0+ MIPI input data pair D0+
13 D0- MIPI input data pair D0-
14 GND Ground.(0V)
15 D1+ MIPI input data pair D1+
16 D1- MIPI input data pair D1-
17 GND Ground.(0V)
18 CLK+ MIPI input clock pair CLK+
19 CLK- MIPI input clock pair CLK-
20 GND Ground.(0V)
21 D2+ MIPI input data pair D2+
22 D2- MIPI input data pair D2-
23 GND Ground.(0V)
24 D3+ MIPI input data pair D3+
25 D3- MIPI input data pair D3-
26-27 GND Ground.(0V)
28 ID ID PIN(pull down to GND with 0ohm)
29 STBYB Standby mode select
30-32 LB1-LB3 LED-
33-37 NC No connect
38-39 LED_vout LED+

Applications:

For our 8 inch LCD display TST080WUM-NL0, it's widely using in handheld device.

Product Features:

1. 8 inch 1200*1920 res. with 39pins MIPI interface

2. IPS lcd : full viewing angle

3.high definition FHD

4.high contrast 900:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
