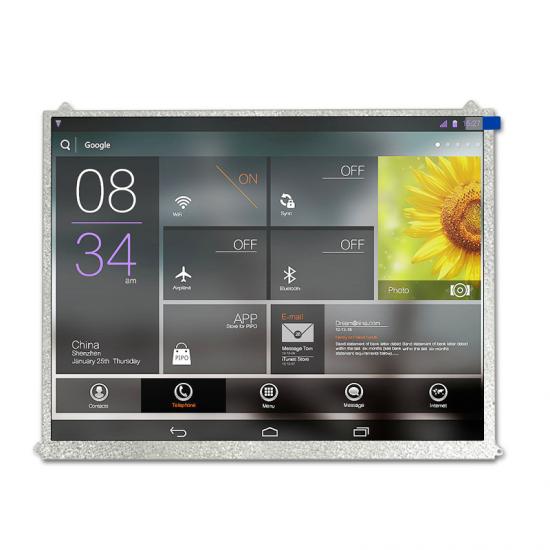

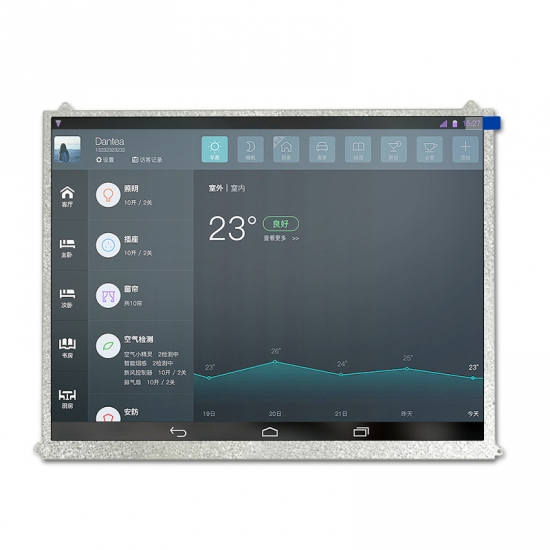

TSD 1024×768 resolution 9.7 inch IPS TFT Lcd panel with LVDS interface

  • Model Name: TST097XGVH-02
  • LCD Type: 9.7 inch TFT LCD display
  • Resolution: 1024*768
  • Viewing angle: IPS all viewing angle
  • Brightness: 280 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST097XGVH-02  is 9.7 inch 1024*768 resolution LCD display with LVDS interface, standard brightness is 280cd/m2. For this 9.7 inch TFT LCD module,   viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, outline size is 210.20x164.20x2.85mm. AA area is 196.61x147.46.Contrast is 1000:1. this lcd module can be with resistive or capacitive touch panel, customized design are also welcome..



Specification
Part No. TST097XGVH-02
Outline Dimension(mm) 210.20x164.20x2.85
Active Area(mm) 196.61x147.46
Resolution(dots) 1024xRGBx768
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1024RGB(H)xRGBx768(V)
Touch panel 94% transmittance RTP
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,IPS, 9.7 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface LVDS
Module lifetime(Hours) 50,000-100,000

Drawing:

Interface Description:

Pin No.  Symbol I/0 Description
1 GND P Power ground
2-3 VDD P Power for Digital Circuit
4-7 NC - No connect
8 LVDS_0N I -LVDS differential data input
9 LVDS_0P I +LVDS differential data input
10 GND P Ground
11 LVDS_IN I _LVDS differential data input
12 LVDS_1P I +LVDS differential data input
13 GND P Green data,G7 is MSBGO is LSB
14 LVDS_2N I -LVDS differential data input
15 LVDS_2P I +LVDS differential data input
16 GND P Power ground
17 LVDS_CLKN I -LVDS Differential Clock Input
18 LVDS_CLKP I +LVDS Differential Clock Input
19 GND P Power ground
20 NC - No connect
21-22 LED+ - LED Anode
23 NC - No connect
24-29 LED- - LED Cathode
30 NC - No connect

Applications:

For our 9.7 inch LCD display TST097XGVH-02 , it's widely using in industrail machine even some automotive grade application..

Product Features:

1. 9.7 inch 1024*768 res. with 30pins LVDS interface

2. IPS lcd : full viewing angle

3.high contrast 1000:1

4.Ratio 4:3

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
