Description:
TST070WSIE-160C is 7 inch 1024*600 resolution LCD display with MIPI interface, standard brightness is 1500cd/m2. For this 7 inch TFT LCD module, Driver IC is EK79001+EK73215, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. This 7 inch tft lcd is suitable used in industrial grade application.
| Specification | ||
| Part No. | TST070WSIE-160C | |
| Outline Dimension(mm) | 164.9*100*3.5 | |
| Active Area(mm) | 154.21*85.92 | |
| Resolution(dots) | 1024*RGB*600 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 1024RGB(H)xRGBx600(V) | |
| Touch panel | with CTP | |
| Dot Pitch | 0.0642(W)x0.1790(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal white,IPS, 7.0 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL | |
| Brightness | 1500 cd/m2 | |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface | MIPI | |
| Module lifetime(Hours) | 50,000-100,000 | |

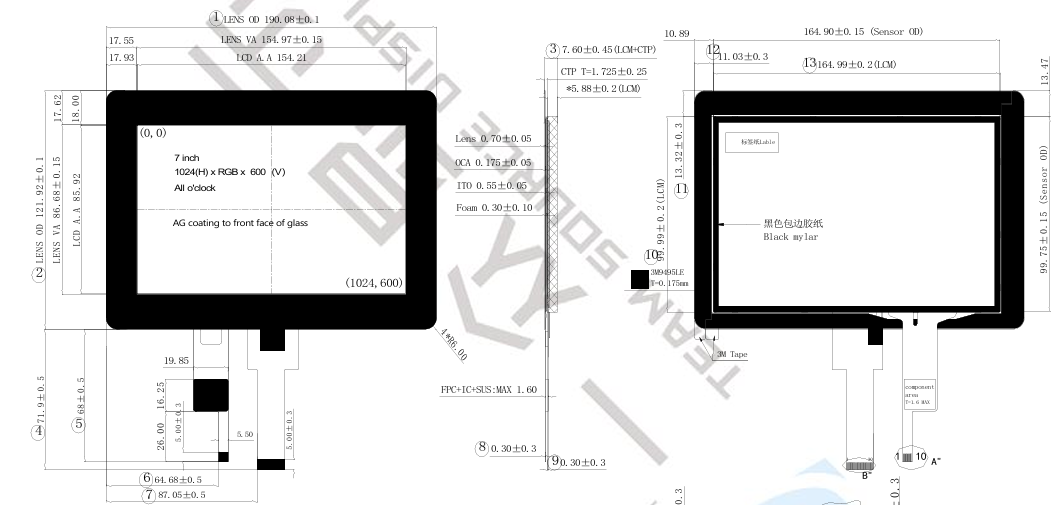

Drawing:
Interface Description:
| Pin No. | Symbol |
| 1 | LEDA |
| 2 | LEDA |
| 3 | VGH |
| 4 | VGL |
| 5 | UPDN |
| 6 | SHLR |
| 7 | LEDK |
| 8 | LEDK |
| 9 | AVDD |
| 10 | GND |
| 11 | MIPI DP3 |
| 12 | MIPI DN3 |
| 13 | GND |
| 14 | MIPI DP2 |
| 15 | MIPI DN2 |
| 16 | GND |
| 17 | MIPI CLKP |
| 18 | MIPI CLKN |
| 19 | GND |
| 20 | MIPI DP1 |
| 21 | MIPI DNI |
| 22 | GND |
| 23 | MIPI_DP0 |
| 24 | MIPI_DN0 |
| 25 | GND |
| 26 | STBYB |
| 27 | RESET |
| 28 | VDD1V8 |
| 29 | VDD1V8 |
| 30 | VCOM |
Applications:
For our 7 inch LCD display TST070WSIE-160C, it's widely using in industrial product, Industrial equipment and instruments can be used.
Product Features:
1.7 1024*600 res. with 30 pins MIPI interface
2. IPS lcd full viewing angle
3.high brightness up to 1500nits
4.high contrast 800:1
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
