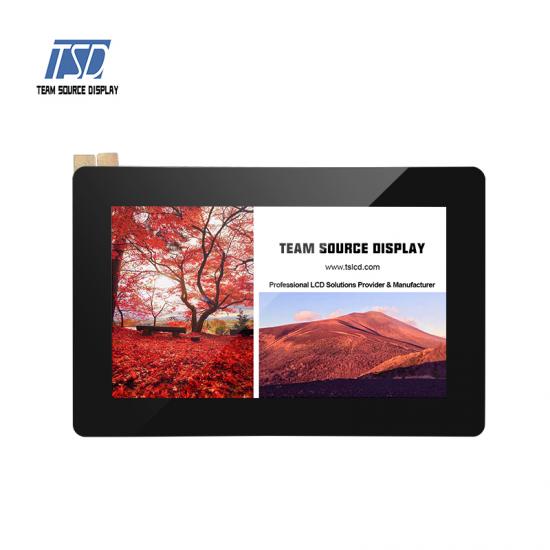

TSD 7 inch 1024*600 resolution TFT LCD display with HDMI Board

  • Model Name: TSM070WSBH-140
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 1024*600
  • Viewing angle: IPS all viewing angle
  • Brightness: 400 cd/m2
  • Interface: HDMI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TSM070WSBH-140 is 7 inch 1024*600 resolution LCD display with HDMI interface, standard brightness is 400cd/m2. For this 7 inch TFT LCD module,  LCD IC is HX8282-A&HX8696-A, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module is with capacitive touch panel, customized design are also welcome. This 7 inch tft lcd is suitable used in industrial grade application.



Specification
Part No. TSM070WSBH-140
Outline Dimension(mm)
179.8(H) x 111.3(V) x5.27(T)
Active Area(mm)  154.21 (H) x 85.92 V)
Resolution(dots) 1024x (RGB) × 600
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1024RGB(H)xRGBx600(V)
Touch panel without
Driver IC EK79001HF+EK73215BCGA
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 7 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system 1.728(Typ.)
Interface HDMI
Module lifetime(Hours) 50,000-100,000

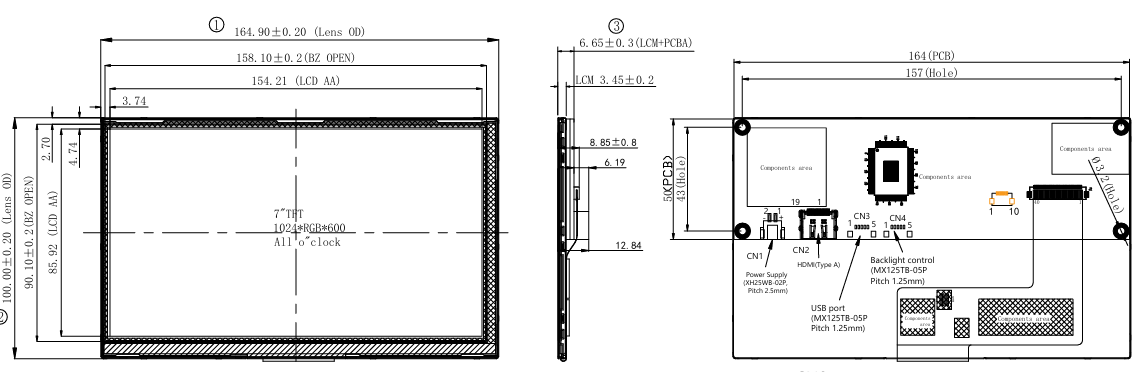

Drawing:

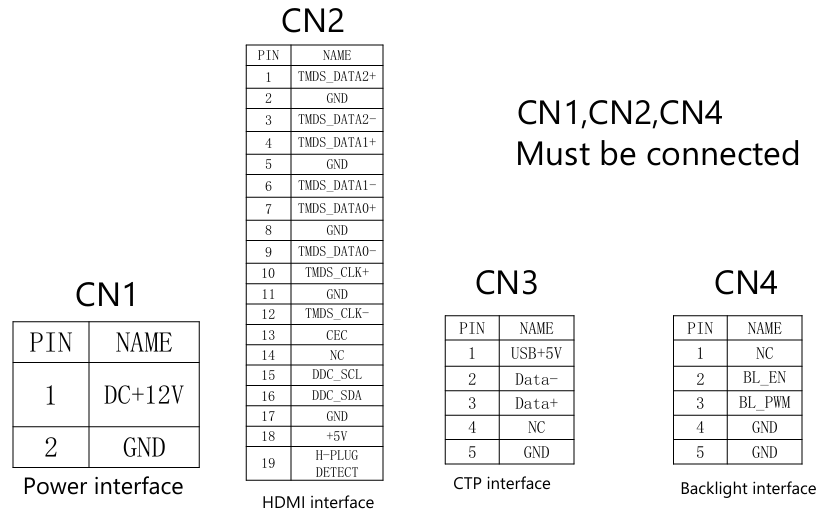

Interface Description:

Applications:



For our 7 inch LCD display TSM070WSBH-140, it's widely using in industrial product, Industrial equipment and instruments can be used.

Product Features:

1.7'' 1024*600 res. HDMI interface

2. IPS lcd full viewing angle

3.high brightness up to 400nits

4.high contrast 800:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
