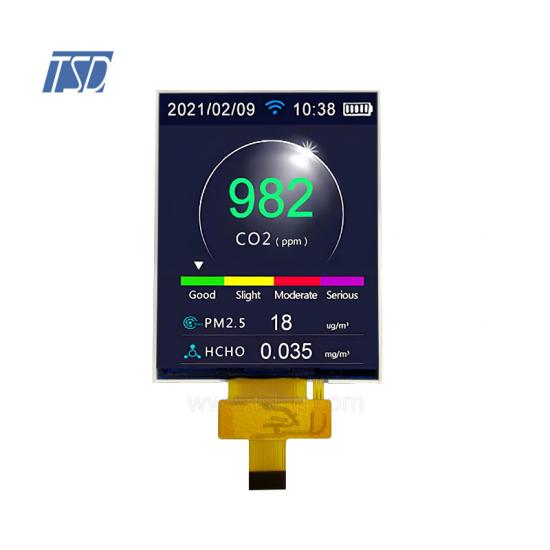

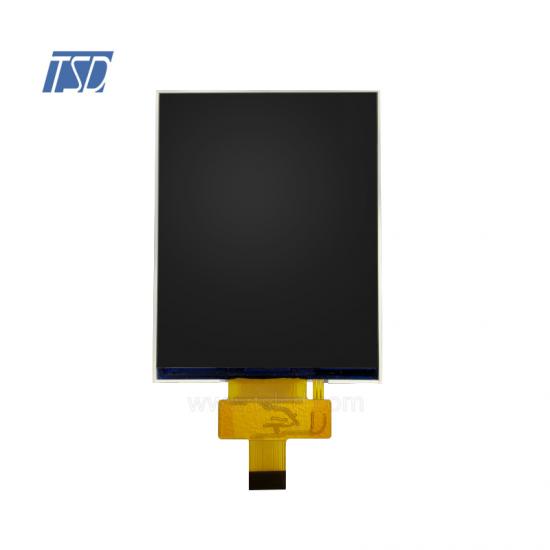

TSD 3.5 inch 240x320 resolution IPS LCD display screen automotive display

  • Model Name: TST035QVBH-115
  • LCD Type: 3.5 inch tft lcd display
  • Resolution: 240x320
  • Viewing angle: All o'clock
  • Brightness: 450 cd/m2
  • Driver IC: HX8277B
  • Interface: SPI+RGB
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -40 ~ +90℃

Description:



TST035QVBH-115 is 240x320 resolution 3.5 inch IPS TFT display, it's in portrait mode screen, all viewing angle with good performance. LCM outline is 64.28x88.02mm. Active area is 53.28x71.04mm. LCD driver IC is Himax HX8277B, with SPI+ 24 bits RGB interface. Backlight is designed with 4 LEDs, 160mA backlight current. Operating temperature is -30 to 85℃, storage temperature is  -40 to +90℃.

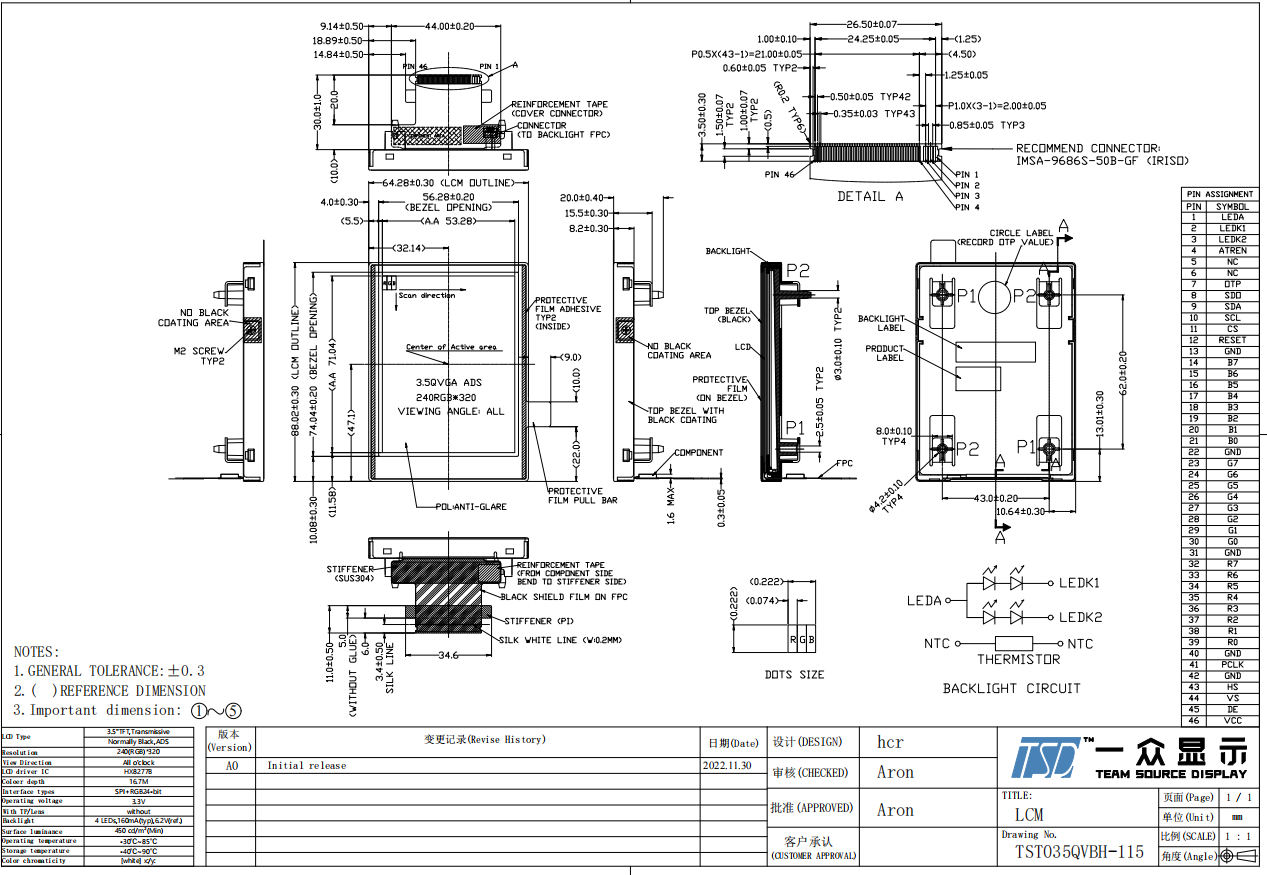

Drawing:




Specifications:



General Specification
Part No.  TST035QVBH-115
Outline Dimension(mm)  64.28x88.02
Active Area(mm) 53.28x71.04
Resolution(dots) 240x320
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 240(H)xRGBx320(V)
Touch panel  without
Driver IC HX8277B
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 3.5 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI+RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 LEDA Backlight  Aothod  pin
2-3 LEDK1-LEDK2 Backlight Cathode pin
4 ATREN ATREN PIN
5 NC No connect
6 NC No connect
7 OTP OTP pin
8 SDO Serial data output
9 SDA Serial data input/output signal
10 SCL Serial clock signal
11 CS Chip select signal
12 RESET Reset signal
13 GND System ground
14~21 B7~B0 Blue data
22 GND System ground
23~30 G7~G0 Green data
31 GND System ground
32~39 R7~R0 Red data
40 GND System ground
41 PCLK Pixel clock
42 GND System ground
43 HS Horizational data
44 VS Vertial data
45 DE Data enable signal
46 VCC Power supply 3.3V




Applications:



Modern technology is developing rapidly, and in-car screen advertising has become increasingly popular. Therefore, wireless communication technology has also been born. For example, the most commonly used is the taxi car screen, which generally sends information through SIM, and SIM needs to activate GPRS. The car is equipped with a car phone. This device is similar to today's mobile phones. The difference is that it can advertise and make money. This type of text message is sent through gprs. Of course, it is also equipped with an alarm system, partly for the safety of the driver!
