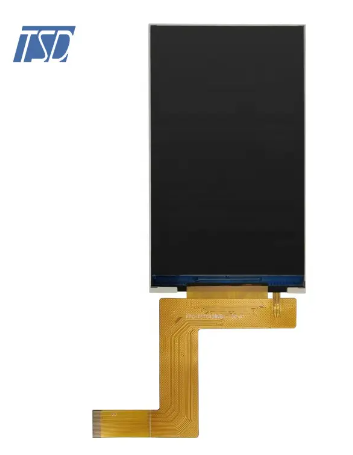

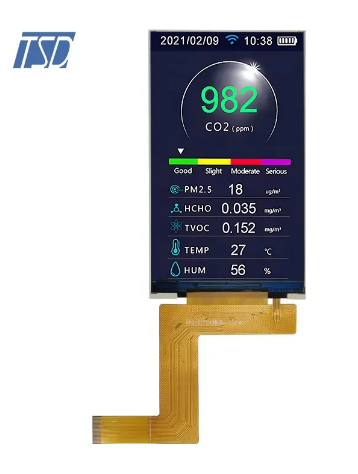

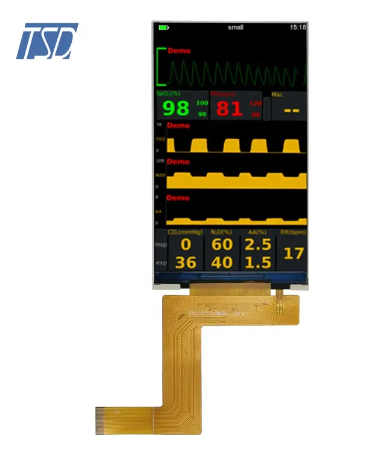

TSD 4.3 Inch TFT LCD Customization lcd panel 480 x (RGB) × 800 resolution

General Specification

Part No.

TST043WVBI-130

Display Size(Diagonal)

4.3 inch

LCD type

TFT,Transmissive,Normally black

Resolution

800x (RGB) × 480

View Direction

ALL o’clock

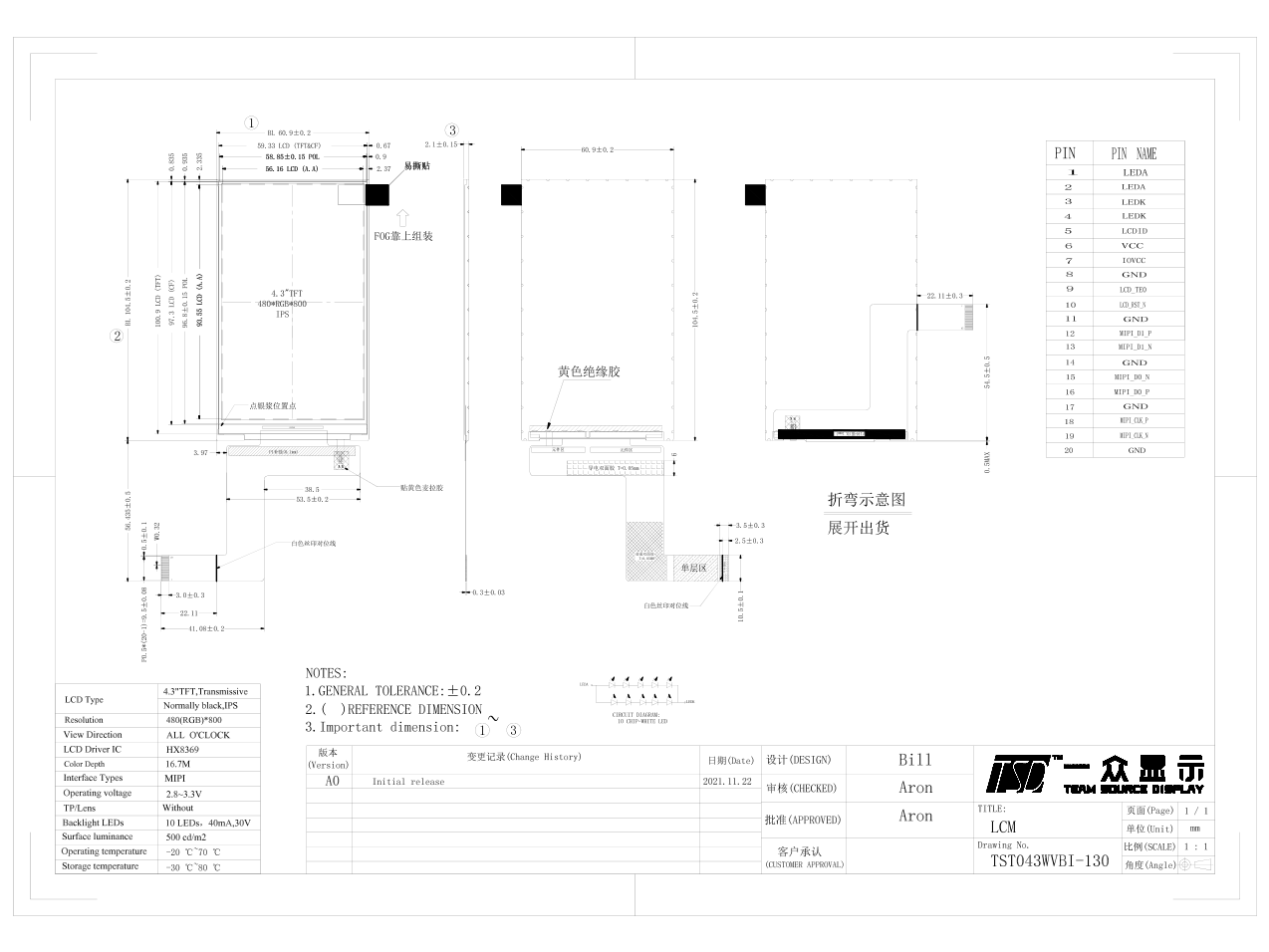

Module Outline

60.9(W) x 104.5(H) x2.1(D)

Active Area

56.16 (W) x 93.55(H)

Viewing Area

ALL o’clock

Back light

10 LEDs ，40mA

Driver IC

HX8369

Interface

RGB24-bit

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-20～70

Storage Temperature

-30～80

Pins Description

Pin No.

Symbol

Description

1

LEDA

LED power supply+

2

LEDA

LED power supply+

3

LEDK

LED power supply-

4

LEDK

LED power supply-

5

LCDID

No connection

6

VCC

Analog voltage

7

VDDIO

I/O suolly voltage

8

GND

System ground

9

LCD-TE0

Tearing effect output

10

LCD-RST-N

External reset input

11

GND

System ground

12

MIPI-D1-P

DSI differential data1

13

MIPI-D1-N

DSI differential data1

14

GND

System ground

15

MIPI-D0-P

DSI differential data0

16

MIPI-D0-N

DSI differential data1

17

GND

System ground

18

MIPI-CLK-P

DSI differential clock+

19

MIPI-CLK-N

DSI differential clock-

20

GND

System ground
