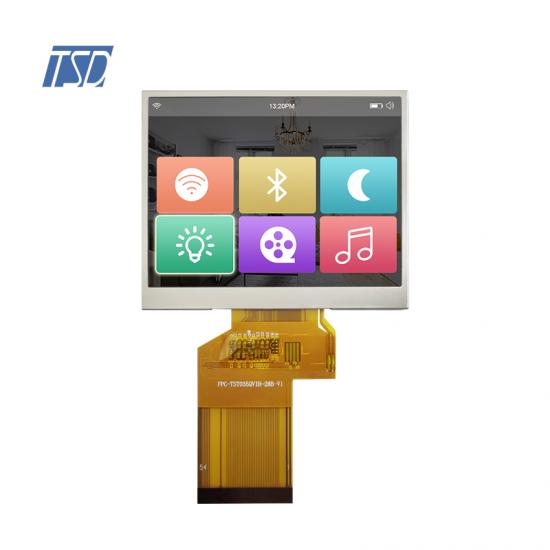

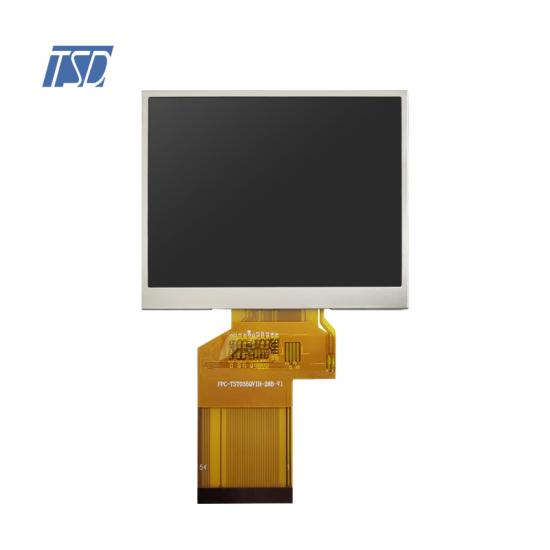

TSD 3.5 inch 320x240 QVGA IPS LCD display with wide temperature range

  • Model Name: TST035QVHS-119
  • LCD Type: 3.5 inch TFT LCD display
  • Resolution: 320x240
  • Viewing angle: All o'clock
  • Brightness: 900 cd/m2
  • Driver IC: ST7272A
  • Interface: RGB24-bit
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST035QVHS-119 is 320x240 resolution 3.5 inch TFT lcd display with wide temperature range. LCD type is a-Si TFT, transmissive, normally black, IPS glass with all o'clock viewing direction. LCD module size is 76.9x63.9x3.05mm, active area is 70.08x52.56mm. Dot size is 0.073x0.219. Color depth is 16.7M. Pixel arrangement is RGB-Stripe. It's with 6pcs LEDs backlight, 20mA current and 18.6V voltage. Surface luminance is 900~1000 cd/m2, which is with a very good performance for outdoor. Operating temperature is -30 to +80℃, storage temperature is also  -30 to +80℃.

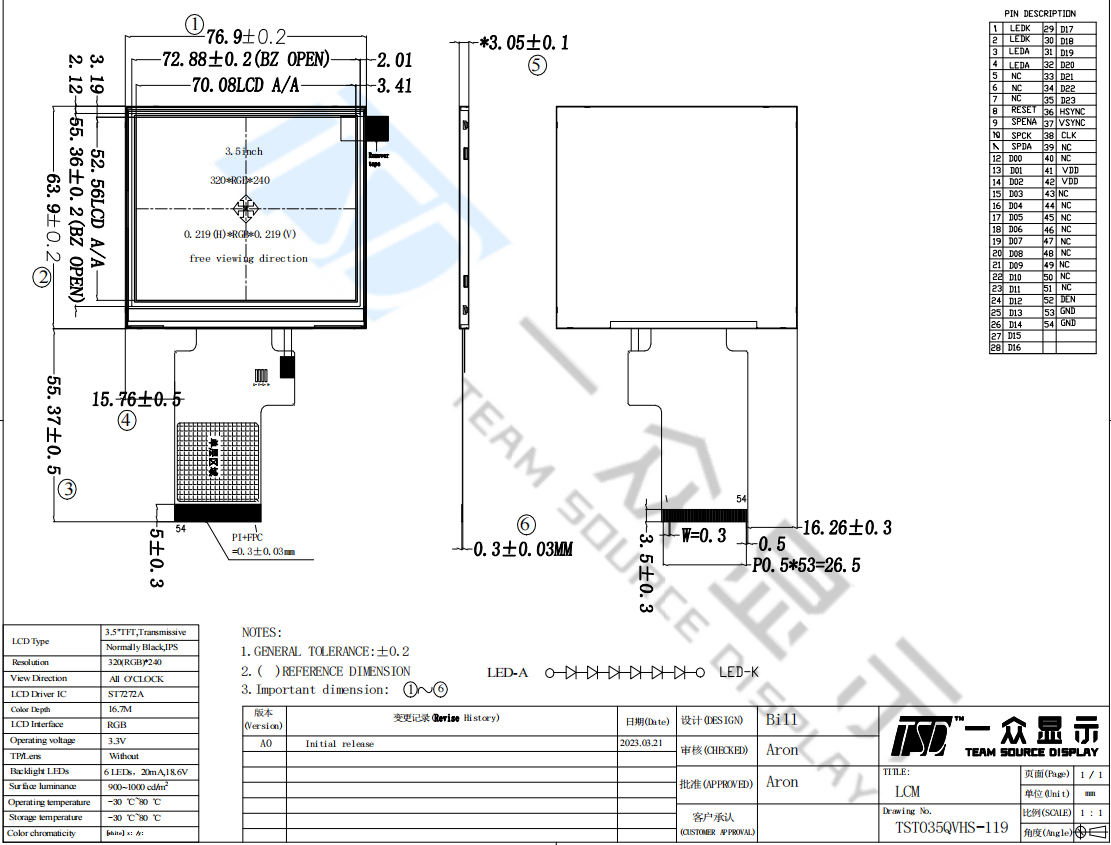

Drawing:




Specifications:



General Specification
Part No.  TST035QVHS-119
Outline Dimension(mm)  76.9x63.9x3.05
Active Area(mm) 70.08x52.56
Resolution(dots) 320x240
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 320(H)xRGBx240(V)
Touch panel  without
Driver IC ST7272A
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 3.5 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 24 bits
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1-2 LEDK1-LEDK2 Cathode of LED backlight
3-4 LEDA1-LEDA2 Cathode of LED backlight
5-7 NC No connect
8 RESET System reset pin. An active low pulse at this pin will reset the IC, connect to VCC in the normal operation.
9 CS Chip selection pin.
10 SCK serial clock input.
11 SDA Data input/ output pin in serial interface.
12-19 B0-B7 Blue data bus: B0-B7
20-27 G0-G7 Green data bus: B0-B7
28-35 R0-R7 Red data bus: R0-R7
36 HSYNC Line synchronization input
37 VSYNC Frame/Ram write synchronization input.
38 DCLK Dot-clock signal and oscillartor source.
39-40 NC No connect
41-42 VDD Power supply for digital voltage
43-47 NC No connect
48 X- The touch panel X left pin
49 Y- The touch panel Y Down pin
50 X+ The touch panel X right pin
51 Y+ The touch panel Y up pin
52 DE Display enable pin from controller
53-54 GND Ground




Applications:



The automotive display is an important part of the car audio and video system. Its function is equivalent to the color TV in the home theater. It can receive the car audio and video signals and play them back on the display. At the same time, it can be used on similar sports tools in the car, which is convenient for use in the car.

For our 3.5 inch 320x240 LCD display TST035QVHS-119, it's widely using for Automotive applications. TSD also have the other different sizes, please contact us to get more details freely.
