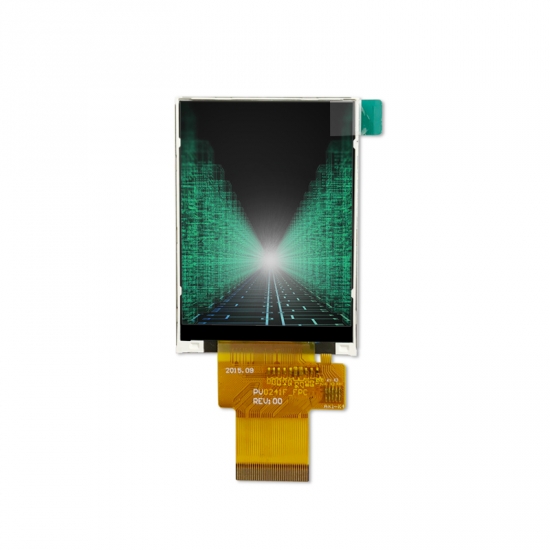

QVGA 240x320 resolution 2 inch ips lcd monitor with MCU interface

Inquiry now

QVGA 240x320 resolution 2 inch ips lcd monitor with MCU interface

Specification
LCD type	2.0 inch IPS tft display module
Display type	2.0" TFT, 262k color
Driver element	a-si TFT Active matrix
Outline Dimension(mm)	42.72x60.26x3.45mm
Resolution(dots)	240RGB320
Viewing Direction	ALL o'clock
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Display mode	Normally white
Surface treatment	Antiglare, Hard-Coating(3H)
Backlight	White LEDs
Weight(g)	TBD
Interface	MCU
Module lifetime(Hours)	50,000-100,000

Get A Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : QVGA 240x320 resolution 2 inch ips lcd monitor with MCU interface

Tags :

Related products

TSD 2.0 inch IPS 240x320 LCD screen

Model Name: TST020QVHS-06 LCD Type: 2.0 inch TFT LCD display Resolution: 240x320 Viewing angle: All o'clock Brightness: 400 cd/m2 Driver IC: ST7789V Interface: 3 wire SPI interface Touch Screen: without Capacitive touch panel Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃

TSD 2.0 inch IPS 3 wire SPI interface TFT lcd display module

Model Name: TST020QVHS-06B LCD Type: 2.0 inch TFT LCD display Resolution: 240x320 Viewing angle: All o'clock Brightness: 350 cd/m2 Driver IC: ST7789V Interface: 3 wire SPI interface Touch Screen: without Capacitive touch panel Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃

TSD 2.0 Inch TFT LCD 240*320 Resolution Ips interface

Model Name:TST020QVHS-07 LCD Type: TFT,Transmissive,Normally black,IPS Resolution: 240 x (RGB) × 320 Viewing angle: ALL o’clock Brightness:300~350 Driver IC: ST7789V Interface: SPI Touch Screen:Without Operating Temperature: -20 ℃~70 ℃ Storage Temperature: -30 ℃~80 ℃

TSD 2.0 Inch TFT LCD Customization lcd panel 240 x (RGB) × 320 resolution

LCD Type: a-Si TFT,Transmissive,Normally black,IPS Resolution: 240 x (RGB) × 320 View Direction: All o’clock LCD driver IC: ST7789V Interface types:3 wire SPI, support 2 lane Operating voltage: 2.8~3.3 With TP/Lens: Without Backlight: 3LEDs, 60mA Surface luminance: 280(Typ) Operating temperature: -20℃~70℃ Storage temperature: -30℃~80℃

TSD 7" TFT LCD display 800×480 resolution high brightness with PCAP

Model Name: TST070MIWN-10C LCD Type: 7 inch TFT LCD display module Resolution: 800x480 Viewing angle: 12 o'clock Brightness: 1000-1200 cd/m2 Driver IC: OTD9960+OTA7001 Interface: RGB 24bit Touch Screen: with CTP Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃

TSD 5.7 inch tft lcd display 640x480 resolution with high brightness

Model Name: TST057VGGH-02 LCD Type: 5.7 inch TFT LCD display module Resolution: 640x480 Viewing angle: 6 o'clock Brightness: 1000 cd/m2 Driver IC: HX8250-A01+HX8678B Interface: RGB 18bit Touch Screen: available with RTP&CTP Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃

4.0 inch IPS TFT 480*800 Resolution Transmissive,Normally black,IPS -

LCD Type: TFT,Transmissive,Normally black,IPS - LCD Size: 3.97 inch Resolution: (W x H) 480 x (RGB) × 800 pixel LCM : (W × H × D ) 57.14(W) x 96.85(H) x 2.1(D) mm Active Area: (W × H) 51.84 (W) x 86.4 (H) mm pixel Pitch : (W × H) 0.108 x 0.108 mm Viewing Direction: ALL o’clock Pixel Arrangement: RGB-stripe Backlight Type: 8 LEDs Surface Luminance: 500 cd/m2 Driver IC: ST7701S Interface Type: MIPI Input Voltage: 2.8 V With/Without TP: without Weight: TBD

TSD 240x240 resolution 1.3 inch IPS round lcd display

Model Name: TST013QVHG-06B LCD Type: 1.3 inch IPS TFT display Resolution: 240x240 Viewing angle: All o'clock Brightness: 450 cd/m2 Driver IC: GC9A01 Interface: SPI Touch Screen: without Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
