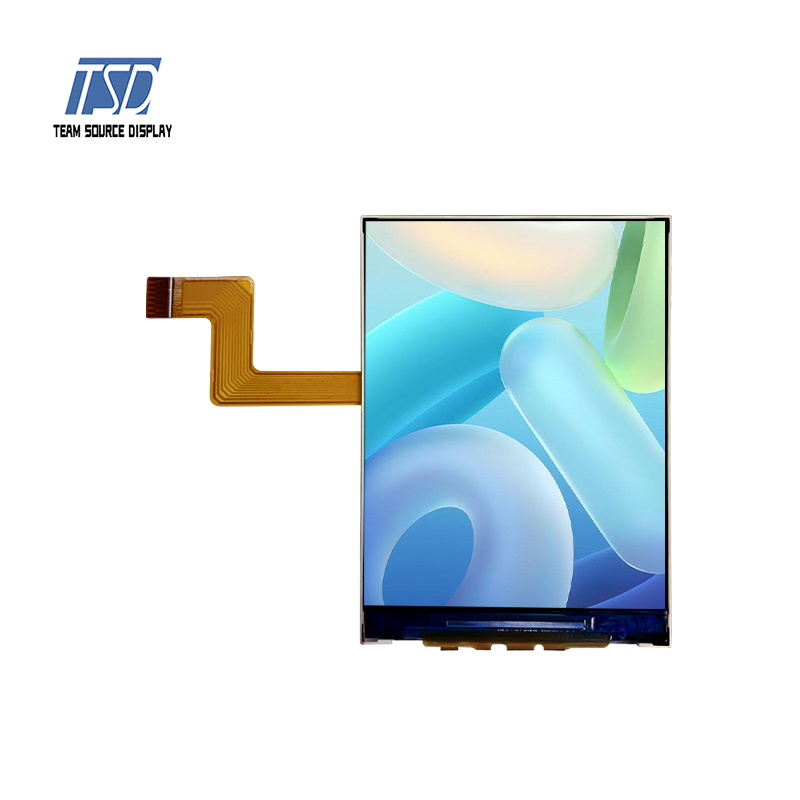

TSD 2.0 inch IPS 3 wire SPI interface TFT lcd display module

  • Model Name: TST020QVHS-06B
  • LCD Type: 2.0 inch TFT LCD display
  • Resolution: 240x320
  • Viewing angle: All o'clock
  • Brightness: 350 cd/m2
  • Driver IC: ST7789V
  • Interface: 3 wire SPI interface
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST020QVHS-06B is 2.0 inch 240x320 resolution 3 wire SPI interface LCD display module, without standard capacitive touch panel. Backlight is 350 nits, White LEDs is 3, backlight current is 60mA and backlight voltage is 3.2V, which could be customized. For this 2.0 inch TFT LCD module, driver IC is ST7789V, viewing direction is free, all o'clock, color depth is 262K, white backlight and transmissive mode.

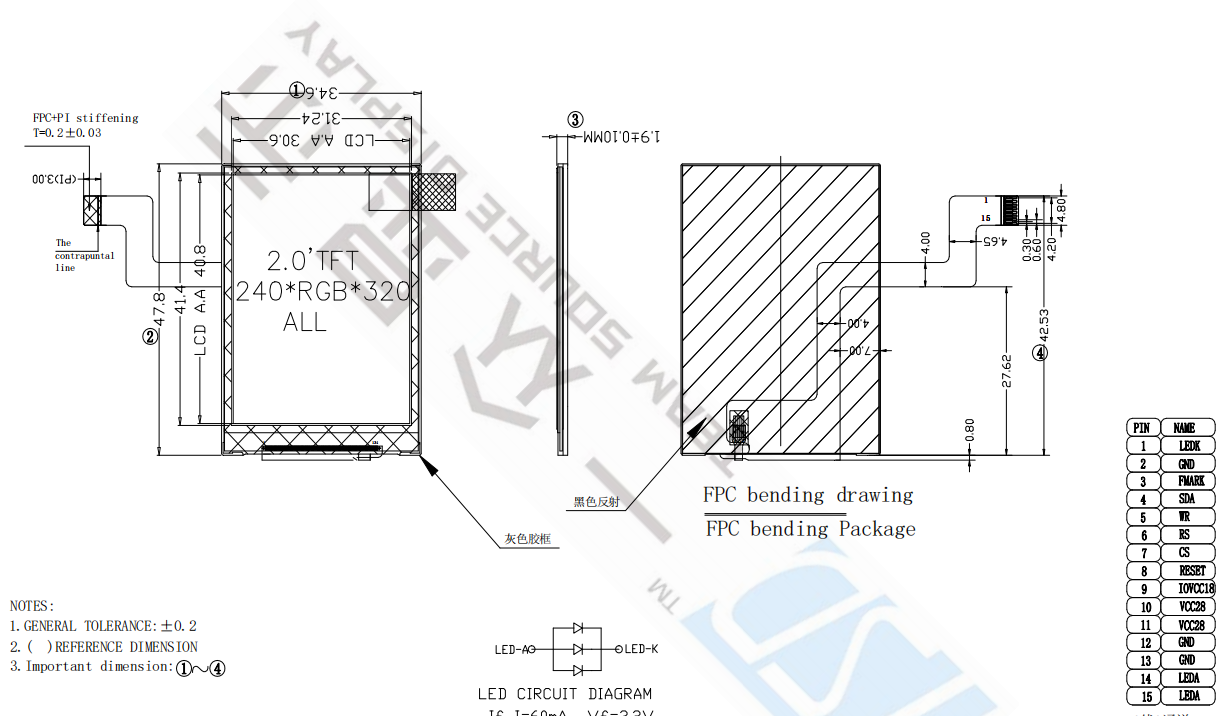

Drawing:




Specifications:



General Specification
Part No.  TST020QVHS-06B
Outline Dimension(mm)

34.6x47.8x1.9

Active Area(mm) 30.6x40.8
Resolution(dots) 240x320
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240(H)xRGBx320(V)
Touch panel  w/o CTP
Driver IC ST7789V
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 2.0 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface 3 wire SPI
Module lifetime(Hours) 20,000-30,000





Pins Description
Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin.
2 GND System Ground. (0V)
3 FMARK Tearing Effect output signal
4 SDA serial interfacedata input pin.
5 WR Second Data lane in 2 data lane serial interface. If not used, please fix this pin at IOVCC or GND.
6 RS/SCL serial interface clock input pin
7 CS Chip select signal
8 RESET reset input signal
9 IOVCC power supply 1.8~3.3V
10 VCC28 power supply 2.5~3.3V
11 VCC28 power supply 2.5~3.3V
12 GND system ground. (0V)
13 GND system ground. (0V)
14 LEDA Backlight A Aothod input pin.
15 LEDA Backlight A Aothod input pin.




Applications:



For our 2.0 inch LCD display TST020QVHS-06B, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 2.0" contains 240x320 dots and can display up to 262k colors.
