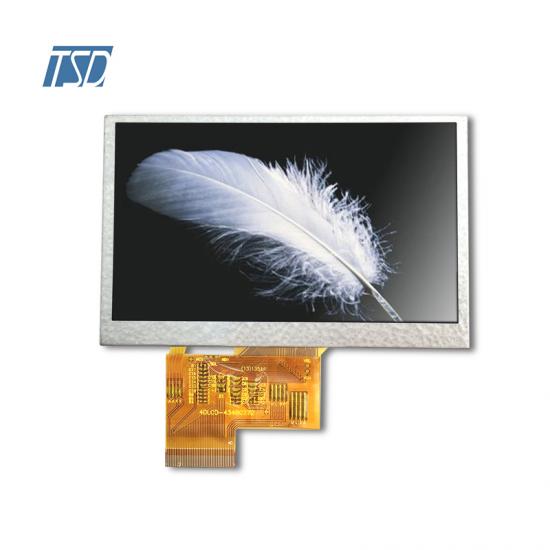

TSD TFT LCD Screen 4.3 inch 800x480 resolution with high luminance for Automotive

  • Model Name: TST043WVBS-139
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Driver IC: ST7262
  • Interface: RGB
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃





Description:



TST043WVBS-139 is 800x480 resolution 4.3 inch tft lcd module with automotive grade, interface type is RGB, 50 pins pin-out, pin pitch is 0.5mm.  LCD driver IC is Sitronix ST7262, it's IPS panel with all viewing angle. Color depth is 16.7M, power voltage VDD is 3.3V typically, 18 LEDs backlight driver. Surface luminace is 1000 cd/m2 high brightness model. Operating temperature is -30 to 80 degree, storage temperature is -30 to 80 degree.




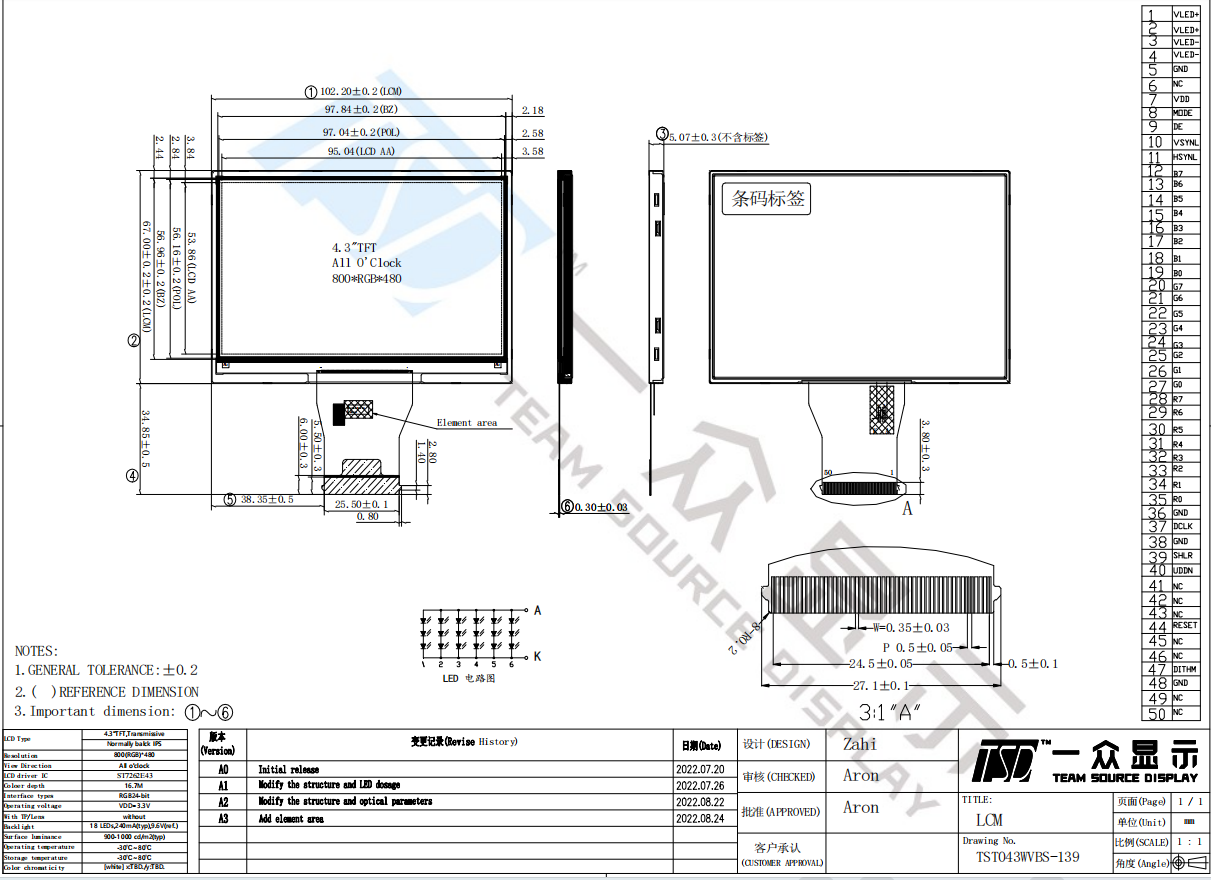

Drawing:



4.3 inch tft lcd module


Specifications:



General Specification
Part No.  TST043WVBS-139
Outline Dimension(mm)  105.5x67.2x3.05
Active Area(mm) 95.04x53.86
Resolution(dots) 800x480
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800(H)xRGBx480(V)
Touch panel  without
Driver IC ST7282
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 VLED+ Power for LED backlight (Anode)
2 VLED+ Power for LED backlight (Anode)
3 VLED- Power for LED backlight (Cathode)
4 VLED- Power for LED backlight (Cathode)
5 GND Power ground
6 NC No connect
7 VDD Power for digital circuit
8 MODE DE/SYNC mode select
9 DE Data input Enable
10 VSYNC Vertical sync input
11 HSYNC Horizontal sync input
12~19 B7~B0 Blue data
20~27 G7~G0 Green data
28~35 R7~R0 Red data
36 GND Power ground
37 DCLK Sample clock
38 GND Power ground
39 SHIR Left/right selection
40 UDDN Up/down selection
41 NC No connection
42 NC No connection
43 NC No connection
44 RESET Global reset pins
45 NC No connect
46 NC No connect
47 DITHB Dithering function
48 GND Power ground
49 NC No connect
50 NC No connect




Applications:



Vehicle-mounted displays need to have at least the following basic qualities:



1. High temperature resistance. Since vehicles may travel in different seasons and at different latitudes, the vehicle-mounted display needs to ensure normal use within a wide temperature range. Therefore, temperature resistance is a basic quality. The current industry requirement is that the entire display screen reaches -40~85℃

2. Long service life. Simply put, in-vehicle displays must support a design and production cycle of at least five years. Due to vehicle warranty, this period should be extended to 10 years. Ultimately, the monitor should last at least as long as the vehicle.

3. High brightness. It is crucial that the driver is able to easily read the information on the display in different ambient light conditions, from bright sunlight to complete darkness.

4. Wide viewing angle. The center display screen should be visible to both the driver and passengers (including rear-seat passengers).

5. High resolution. High resolution means that there are more pixels per unit area and the overall picture is clearer.



For TSD 4.3 inch TFT LCD, it's widely using for two wheels products, any further interests, please contact us freely.

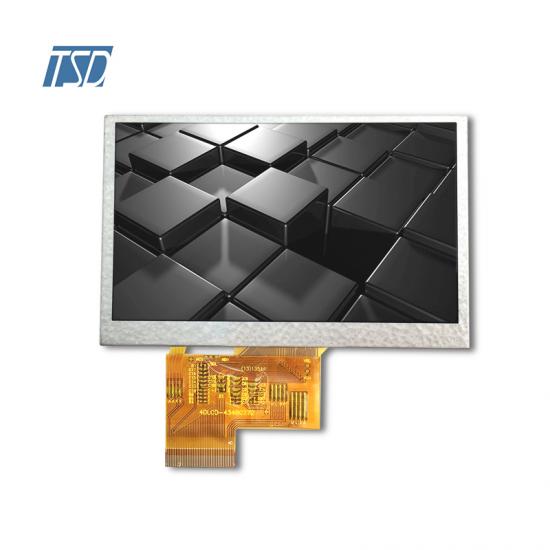

4.3 inch tft lcd module
