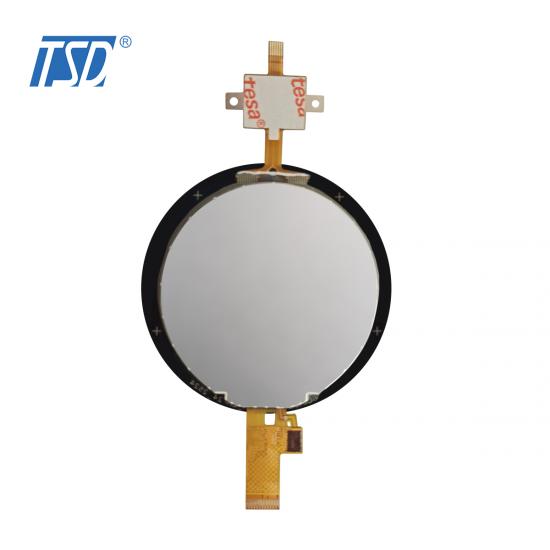

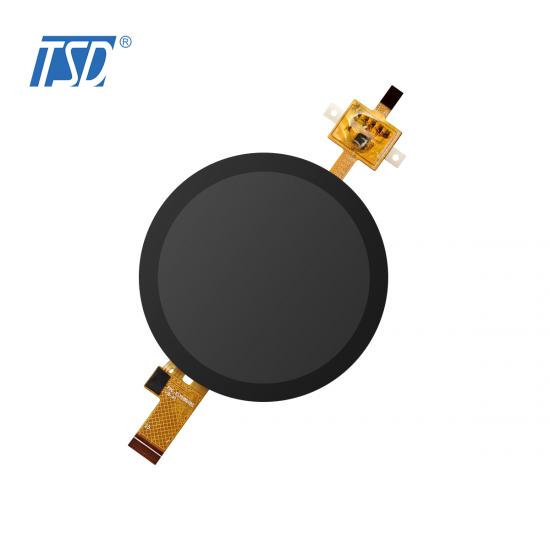

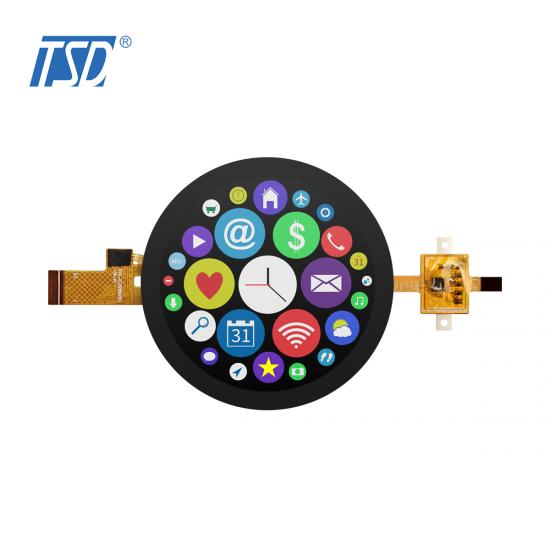

TSD round lcd 360x360 resolution 1.8 inch IPS tft lcd display with MCU/QSPI interface



  • Model Name: TST018QVBS-19C
  • LCD Type: 1.8 inch IPS TFT display
  • Resolution: 360x360
  • Viewing angle: All o'clock
  • Color depth: 262K
  • Driver IC: ST7797
  • Interface: MCU/SPI
  • Touch Screen: with CTP
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST018QVBS-19C is 360x360 high resolution color TFT lcd module, it's using IPS glass with full viewing direction, support MCU and QSPI interface. It's round display with capacitive touch screen, TSD could also make the customization basing on customer's requirements. Driver IC is Sitronix ST77916, backlight is white color with 3pcs in parallel, backlight current is 20mA per pcs of LED. Operating temperature is -20 to 70°C, storage temperature is -30 to 80°C.

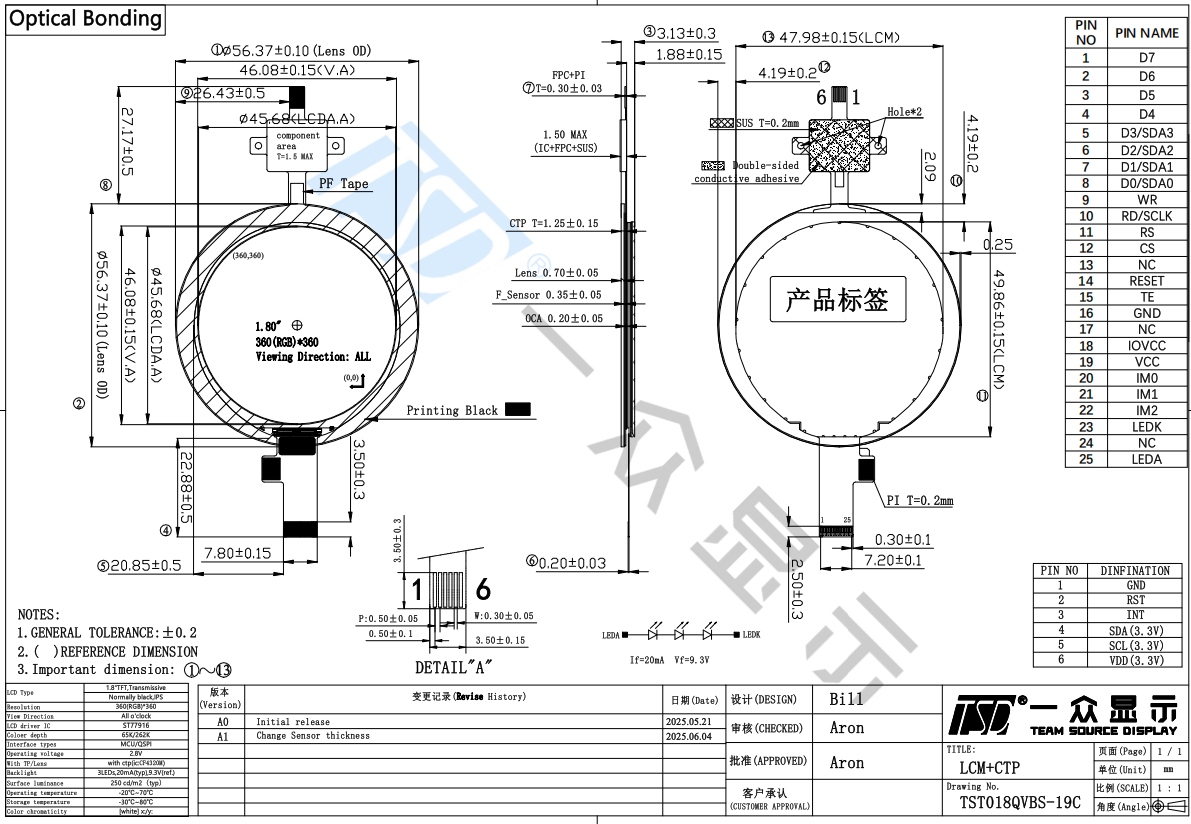

Drawing:



1.8 inch lcd display


Specifications:



General Specification
Part No.  TST018QVBS-19C
Outline Dimension(mm)

56.37x56.37x3.13

Active Area(mm) 45.68x45.68
Resolution(dots) 360x (RGB) × 360
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 360RGB(H)xRGBx360(V)
Touch panel  with CTP
Driver IC ST77916
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 1.8 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU/QSPI
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 D7 MCU data bus
2 D6 MCU data bus
3 D5 MCU data bus
4 D4 MCU data bus
5 D3/SDA3 MCU data bus&QSPI interface
6 D2/SDA2 MCU data bus&QSPI interface
7 D1/SDA1 MCU data bus&QSPI interface
8 D0/SDA0 MCU data bus&QSPI interface
9 WR Write enable in MCU parallel interface
10 RD/SCLK Power groundRead enable in MCU parallel interface&Clock SPI interface
11 RS Data/command selection pin
12 CS
Chip select
13 NC No connection
14 RESET Chip reset pin
15 TE Tearing Effect signal
16 GND Ground (0V)
17 NC No connection
18 IOVCC LCD I/O Power supply
19 VCC LCD Power supply
20 IM0 The System interface mode select.
If IM[2:0] for [0, 1, 1],This setting is QSPl;
If IM[2:0] for [1,1, 1],This setting is MCU 8bit;
For more Setings, please refer to the IC specification sheet

21 IM1
22 IM2
23 LEDK Backlight K Cathode input pin
24 NC Not connection
25 LEDA Backlight A anode input pin






Features:



The circular LCD screen is a major innovation in liquid crystal display technology. Its display principle is similar to that of the square LCD screen. However, through adjustments to the LCD glass production technology and screen parameters, the circular screen can display normally even in a circular state. . Compared with traditional rectangular LCD screens, circular LCD screens have a more beautiful appearance and are more in line with people's aesthetic concepts. In recent years, circular LCD screens have become more and more popular in the market and are widely used in various fields. The application prospects of circular LCD screens are very broad. With the continuous advancement of technology and the growing market demand, it will have wider application scenarios and richer functions.



As for TSD round tft display, we have full series of round display module,contact us today for more information.
