TSD Large LCD 1280×1024 resolution 19 inch IPS tft lcd display module with LVDS interface

  • Model Name: TST190FHBE-N11
  • LCD Type: 19 inch TFT LCD display
  • Resolution: 1280*1024
  • Viewing angle: IPS all viewing angle
  • Brightness: 250 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -0 ~ +50℃
  • Storage Temperature: -10 ~ +60℃



Description:

TSD TFT item number TST190FHBE-N11 is 19 inch, IPS TFT LCD, 1280xRGBx1024 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.



Specification
Part No. 19 inch IPS TFT
Outline Dimension(mm) 396x324x9.9
Active Area(mm) 374.784x299.8272
Operating temperature(°C) -0 to 50
Storage temperature(°C) -20 to 60
Resolution(dots) 1280x1024
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 19 inch TFT
Brightness 250 nits
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface LVDS
Module lifetime(Hours) 50,000-100,000

Drawing:

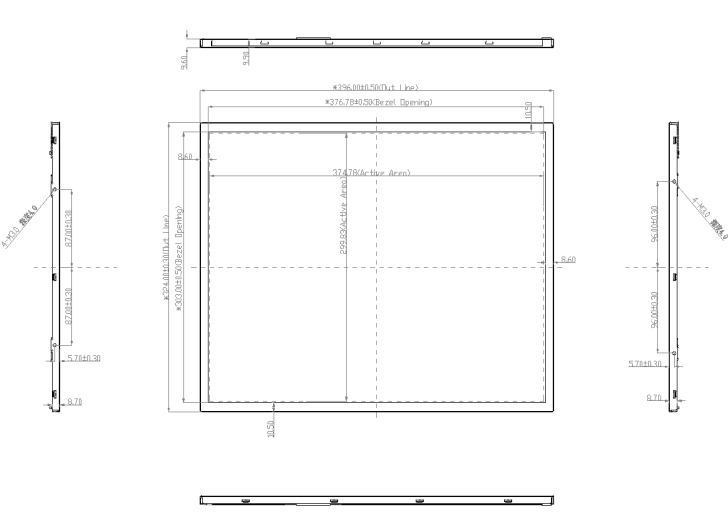

Interface Description:

Pin No.  Symbol Description
1 RXO0- Negative Transmission data of Pixel 0 (ODD)
2 RXO0+ Positive Transmission data of Pixel 0 (ODD)
3 RXO1- Negative Transmission data of Pixel l (ODD)
4 RXO1+ Positive Transmission data of Pixel 1 (ODD)
5 RXO2- Negative Transmission data of Pixel 2 (ODD)
6 RXO2+

Positive Transmission data of Pixel 2 (ODD)

7 GND Power Ground
8 RXOC- Negative Transmission Clock (ODD)
9 RXOC+ Positive Transmission Clock (ODD)
10 RXO3- Negative Transmission data of Pixel 3 (ODD)
11 RXO3+ Positive Transmission data of Pixel 3 (ODD)
12 RXE0- Negative Transmission data of Pixel 0 (EVEN)
13 RXE0+ Positive Transmission data of Pixel 0 (EVEN)
14 GND Power Ground
15 LV1P1 Negative Transmission data of Pixel 1 (EVEN)
16 LVIN2 Positive Transmission data of Pixel 1 (EVEN)
17 GND Power Ground
18 RXE2- Negative Transmission data of Pixel 2 (EVEN)
19 RXE2+ Positive Transmission data of Pixel 2 (EVEN)
20 RXEC- Negative Transmission Clock (EVEN)
21 RXEC+ Positive Transmission Clock (EVEN)
22 RXE3- Negative Transmission data of Pixel 3 (EVEN)
23 RXE3+ Positive Transmission data of Pixel 3 (EVEN)
24 GND Power Ground
25 NC Not connection, this pin should be open
26 NC Not connection, this pin should be open
27 NC Not connection
28-30 VDD Power Supply: +5V

Applications:



For our 19 inch LCD display TST190FHBE-N11, it's widely using in advertising machine.

Product Features:

1.19 inch 1280*1024 res. with 30 pins LVDS interface

2. IPS lcd full viewing angle

3.FHD high definition

4.high contrast 3000:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
