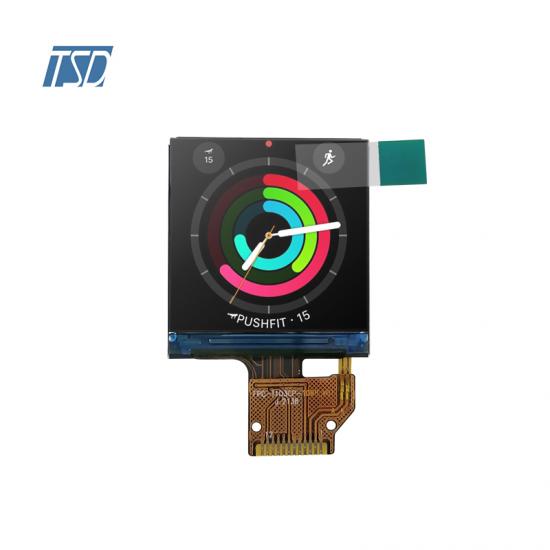

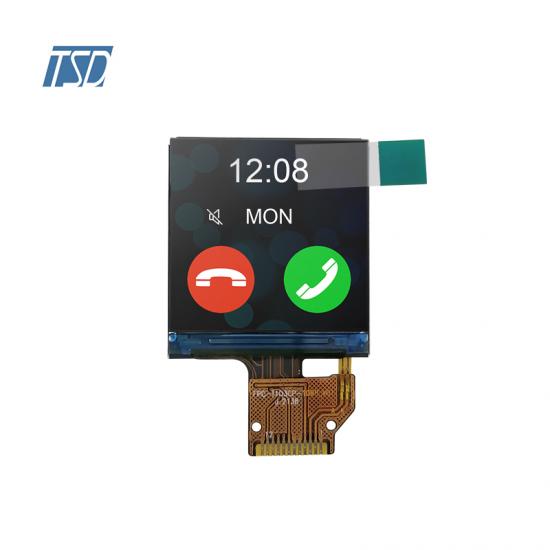

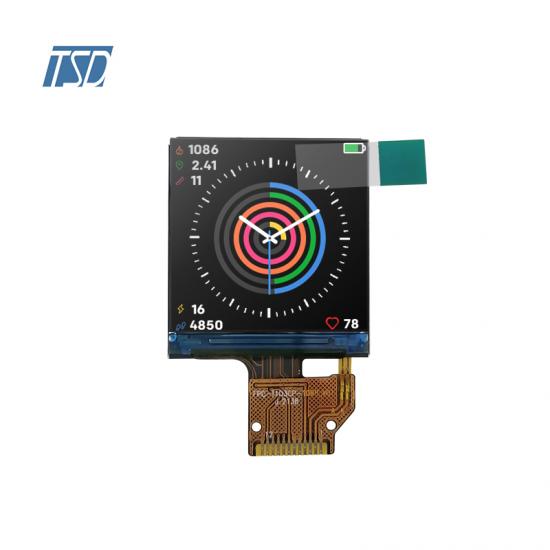

TSD 1.3 inch IPS tft lcd IPS 240x (RGB) ×240 Resolution

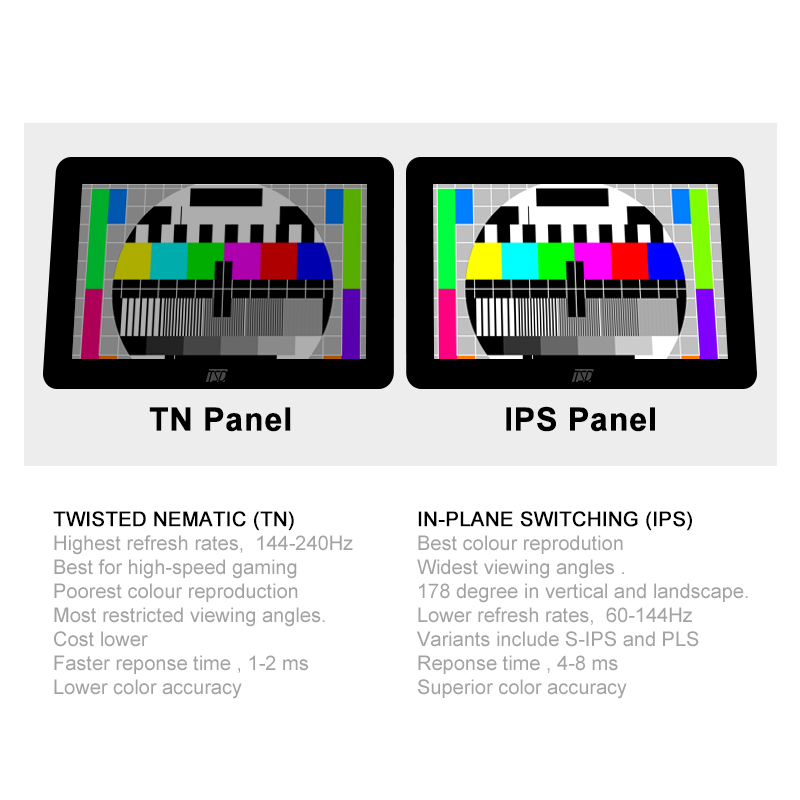

LCD Type: a-Si TFT,Transmissive,Normally black,IPS

LCD Size: 1.3 inch

Resolution: (W x H) 240x (RGB) ×240 pixel

Outline size: 26.16(H) x 29.22(V) x 1.43(D) mm

Active Area: 23.4 (H) x 23.4 (V) mm

Pixel Pitch: 0.0975(H)x 0.0975(V) mm

Viewing Direction: All o’clock

Pixel Arrangement: RGB-stripe

Backlight Type: 2 LEDs , 40mA

LCD Driver IC: ST7789V3

Interface Type: 4wire-SPI

Input Voltage: 2.8 V

With/Without TP: Without

Weight TBD

TSD Main products are Color TFT, capacitive, resistive touch screen, Monochrome LCD & LCM, character dot matrix .segment LCD cover TN, HTN,STN, FSTN, VA etc, integrating COG, TAB, COB and other techniques. TSD products widely used in household appliances,consumer, automotive,education, security, industrial control, medical and intelligent equipment, power equipment,aerospace,military and many other fields

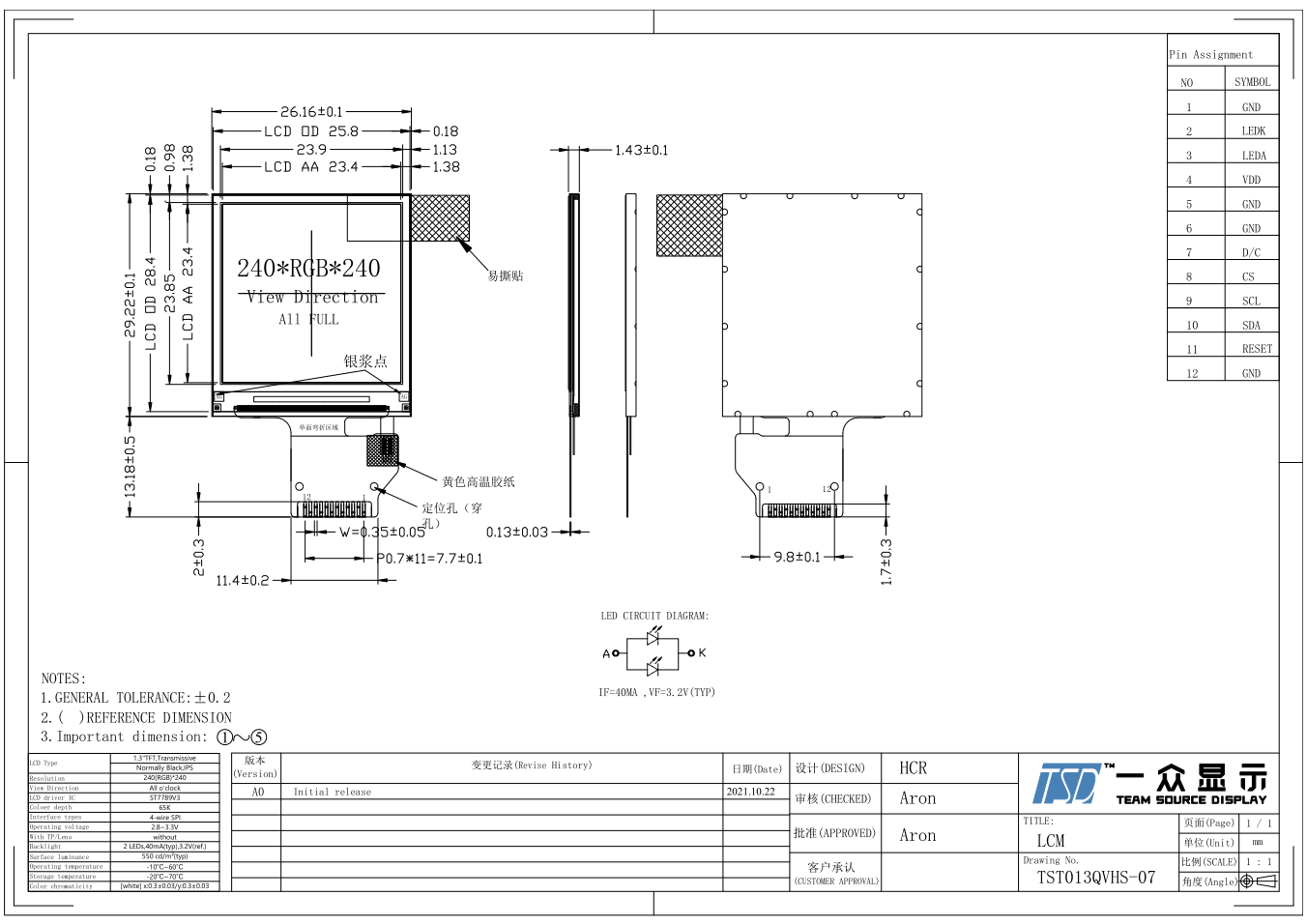

Drawing:



Specifications:





General Specification

Part No.

TST013QVHS-07

Outline Dimension(mm)

26.16(H) x 29.22(V) x 1.43(D)

Active Area(mm)

23.4 (H) x 23.4 (V)

Resolution(dots)

240x (RGB) ×240

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Backlight Type

2 LEDs , 40mA

Touch panel

NO

Pixel arrangement

RGB-stripe

Display mode

Normal black, IPS

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

4wire-SPI

Module lifetime(Hours)

TBD



Pin No.

Symbol

Description

1

GND

System Ground. (0V)

2

LEDK

Backlight K Cathode input pin

3

LEDK

Backlight A anode input pin.

4

VDD

Power supply

5-6

GND

System Ground. (0V)

7

D/C

Data/Command selection pin

Low:Command High:Data

8

CS

Serial communication chip select

9

SCL

Serial communication clock input

10

SDA

Serial communication data input/output

11

RESET

Chip reset pin(Low Active)

12

GND

System Ground. (0V)

13

TDP1

MIPI differential data input Pair 1

Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
