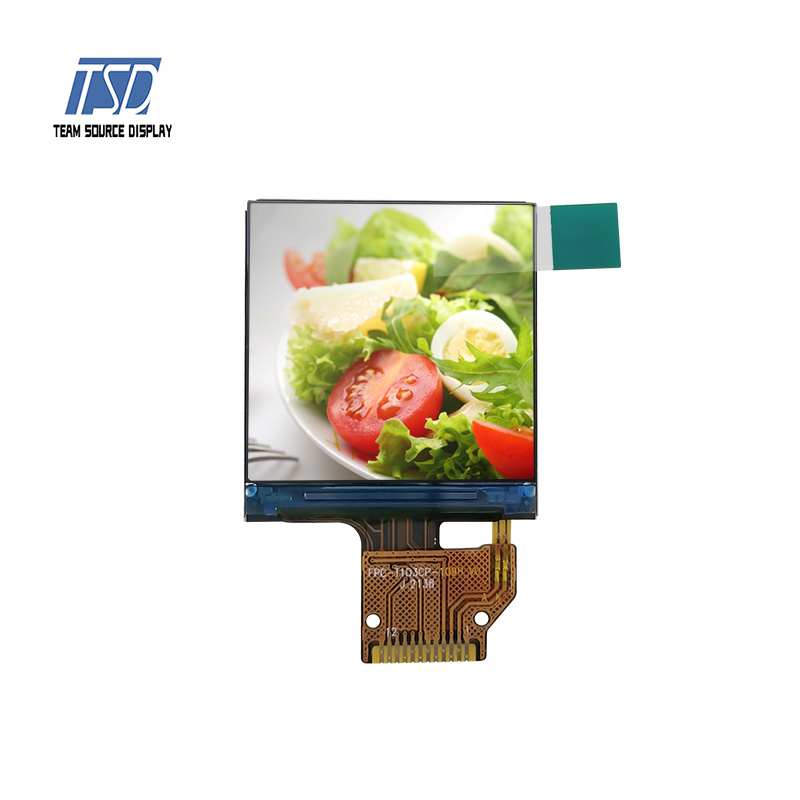

TSD 1.3 inch 240x240 TFT lcd for smart watch

  • Model Name: TST013QVHS-07
  • LCD Type: 1.3 inch TFT LCD display
  • Resolution: 240x240
  • Viewing angle: All o'clock
  • Brightness: 550 cd/m2
  • Driver IC: ST7789V3
  • Interface: 4 wire SPI interface
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -10 ~ +60℃
  • Storage Temperature: -20 ~ +70℃

Description:



TST013QVHS-07 is a 1.3 inch square tft lcd module in 240x240 resolution, it is 4 wire SPI interface in 12 pins, and could be customed for other pinmap. Brightness is 550 nits. It is suitable for indoor application, such as smart watch, thermostat control display, hybrid recorders, temperature measurement device etc. Backlight current is 40mA and backlight voltage is 3.2V, with 2 backlight LEDs. This 1.3 inch TFT LCD module is designed with ST7789V3, viewing direction is all o'clock, color depth is 65K, white backlight and transmissive type.

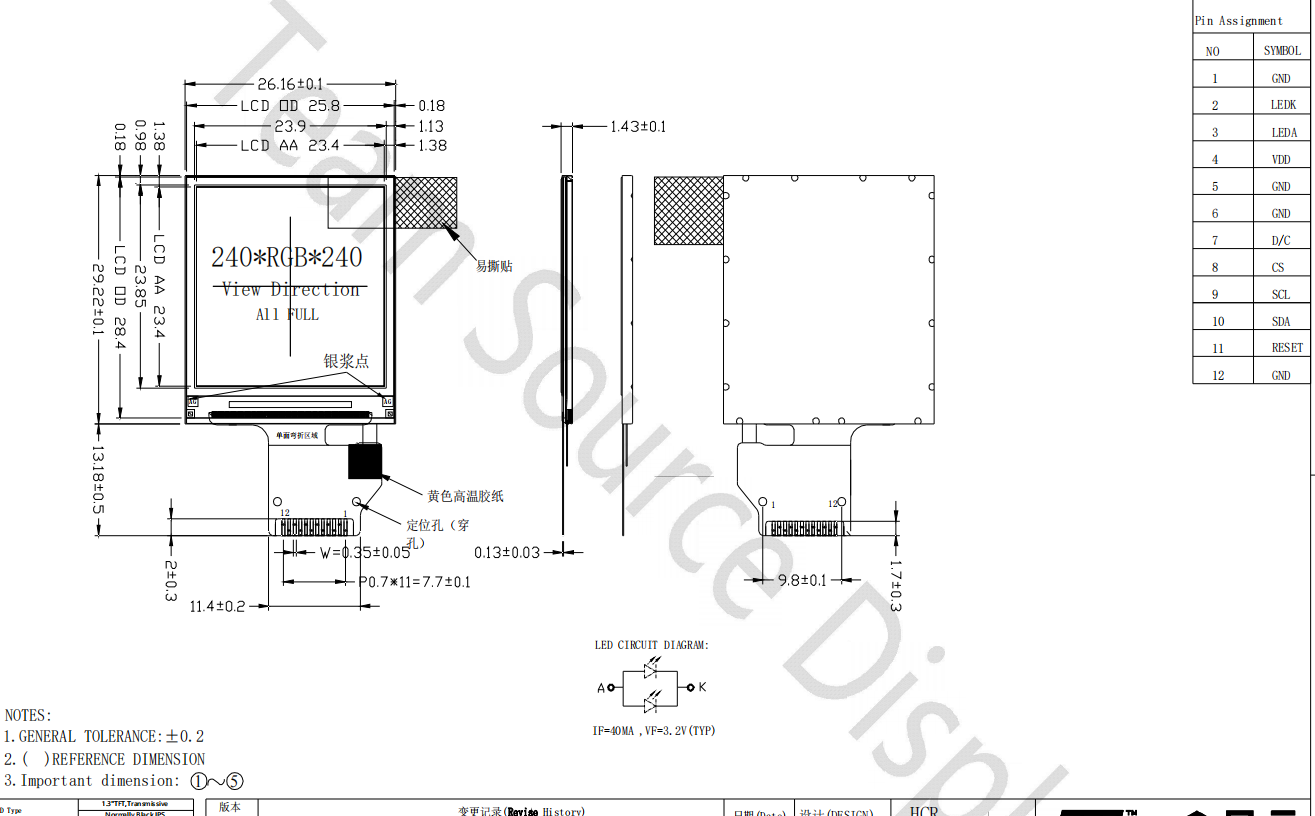

Drawing:




Specifications:



General Specification
Part No.  TST013QVHS-07
Outline Dimension(mm)

26.16x29.22x1.43

Active Area(mm) 23.40x23.40
Resolution(dots) 240x240
Operating temperature(°C) -10 ~ +60°C
Storage temperature(°C) -20 ~ +70°C
Number of Pixel(pixels) 240(H)xRGBx240(V)
Touch panel  w/o CTP
Driver IC ST7789V3
Pixel arrangement RGB-stripe
Display mode Normally black, IPS, 1.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 GND System Ground. (0V)
2 LEDK Backlight K Cathode input pin.
3 LEDK Backlight K Cathode input pin.
4 VDD Power supply
5-6 GND System Ground. (0V)
7 D/C

Data/Command selection pin

Low: command   High:data

8 CS Serial communication chip select
9 SCL Serial communicatin clock input
10 SDA Serial communicatin data input/output
11 RESET Chip reset pin (low power)
12 GND Ground




Applications:



This small round lcd display is suitable for thermostat control display, hybrid recorders, temperature measurement device.




Product Features:



TST013QVHS-07 is a square TFT display module, cThis mode1.3 inch diagonally resolution in 480 horizontal by 480 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in 2 domain stripe and this panel can display 65K colors. Regarding backlight, it is 550 nit and 2 LEDs, current is 40mA  and voltage 3.2V. Contrast ratio is 800:1.
