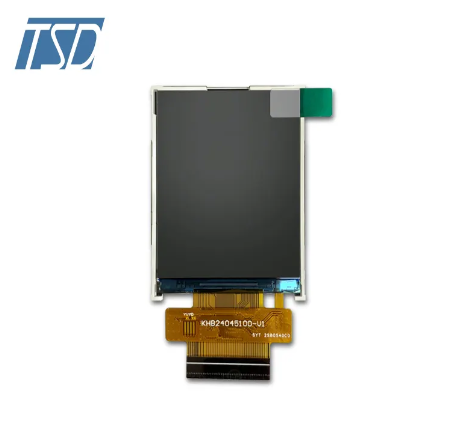

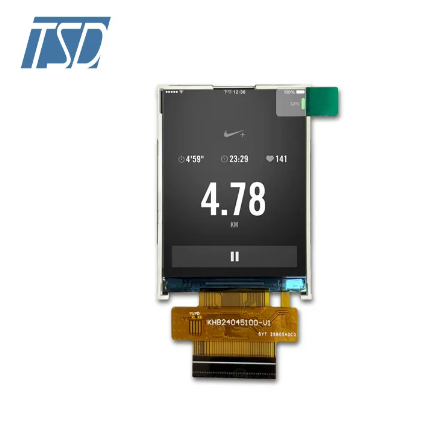

TSD 2.4 Inch TFT LCD Customization lcd panel 320 x (RGB) × 240 resolution

Part number: TST024QVHI-17

Resolution: 240*320

View Direction: Free

Active area: 36.72*48.96

LCM: 42.72*60.26*2.3

Interface: MCU/SPI/SRI+RGB

Driver IC: ILI9341V

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) . This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 2.4”contains 240*320 dots and the Active area is 36.72*48.96

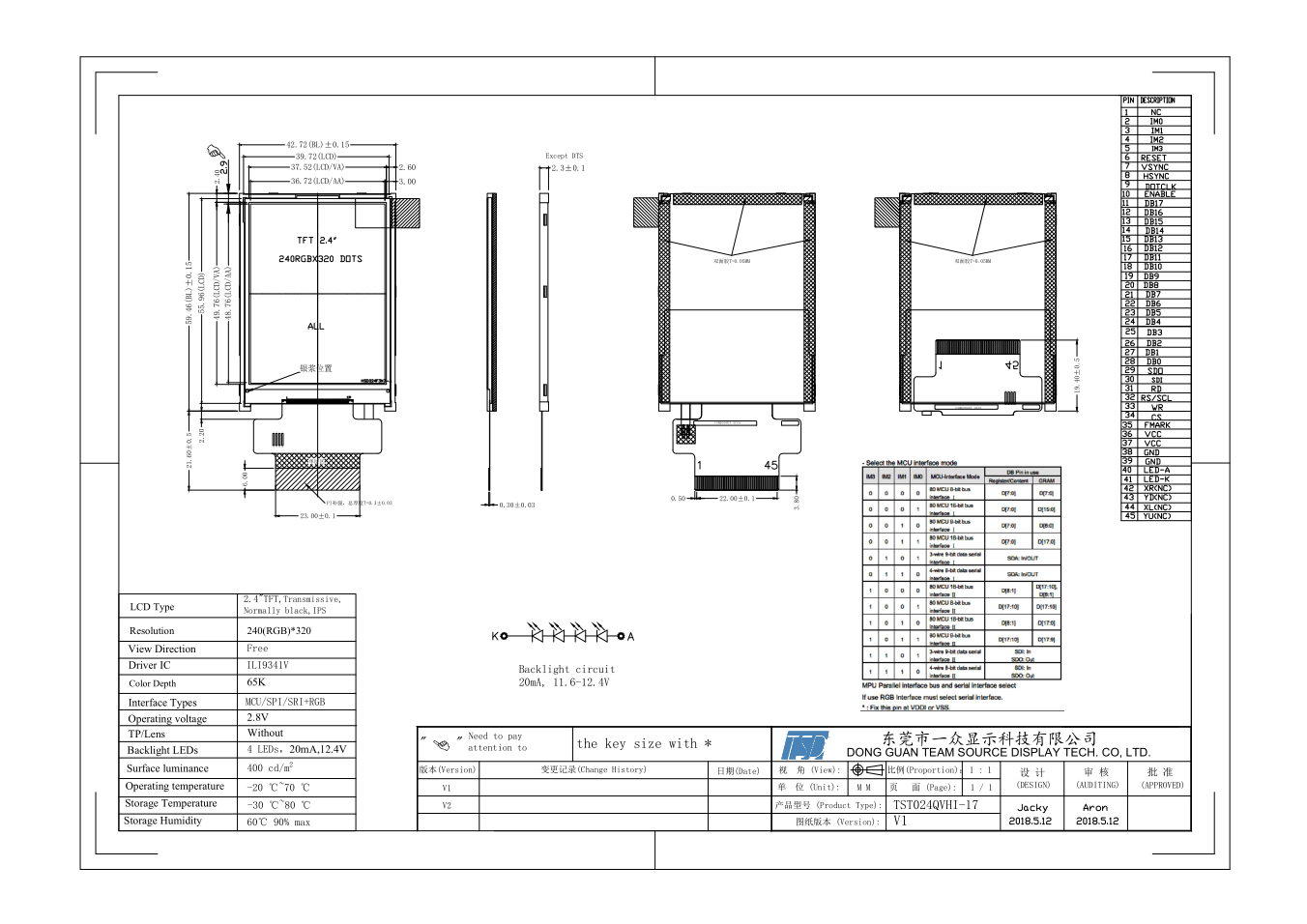

Drawing:

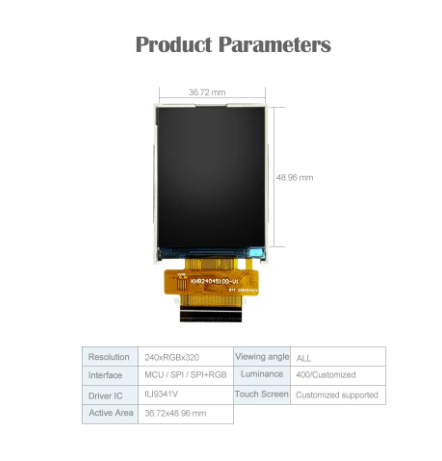

Specification



General Specification

Part No.

TST024QVHI-17

Display Size(Diagonal)

2.4inch

LCD type

Normally Black /IPS

Resolution

240*320

View Direction

All o’clock

Module Outline

42.72*60.26*2.3

Active Area

36.72*48.96

Touch

Without

Backlight

4LEDS

Interface

MCU/SPI/SRI+RGB

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080

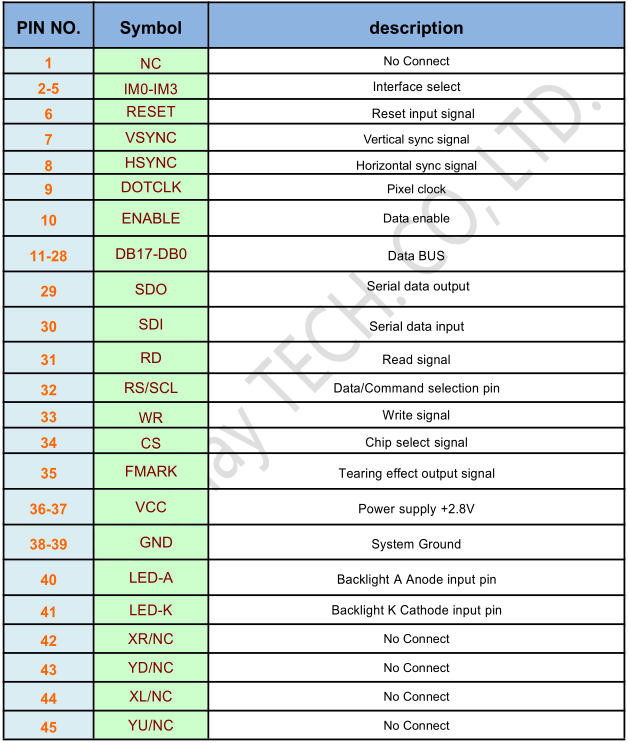

PIN NO.

Symbol

Description

1

NC

No Connect

2-5

IMO-IM3

Interface select

6

RESET

Reset input signal

7

VSYNC

Vertical sync signal

8

HSYNC

Horizontal sync signal

9

DOTCLK

Pixel clock

10

ENABLE

Data enable

11-28

DB17-DB0

Data BUS

29

SDO

Serial data output

30

SDI

Serial data input

31

RD

Read signal

32

RS/SCL

Data/Command selection pin: This pin is used serial interface clock in
3-wire 9-bit/4-wire 8-bit serial data interface.

33

WR/RS

Write signal, This pin is used Data/Command selection pin select.in
4-wire 8-bit serial data interface.

34

CS

Chip select signal

35

FMARK

Tearing effect output signal

36-37

VCC

Power supply +2.8V

38-39

GND

System Ground

40

LED-A

Backlight A Anode input pin

41

LED-K

Backlight K Cathode input pin

42

XR/NC

No Connect

43

YD/NC

No Connect

44

XL/NC

No Connect

45

YU/NC

No Connect



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
