TSD 240x210 resolution 1.08 inch round ips lcd display



  • Model Name: TST108102
  • LCD Type: 1.08 inch IPS TFT display
  • Resolution: 240x210
  • Viewing angle: All o'clock
  • Brightness: 400 cd/m2
  • Driver IC: ST7789V
  • Interface: SPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:

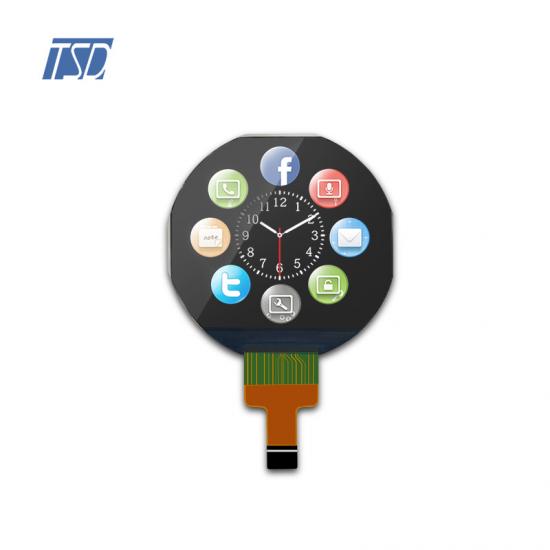

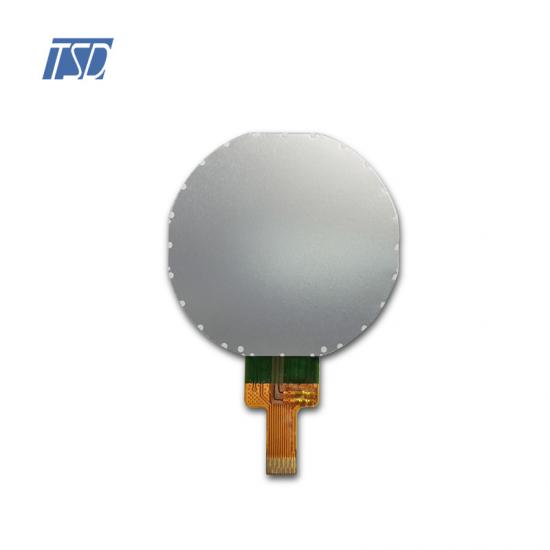

TST108102 is a 1.08 inch IPS round TFT LCD display. 240x210 resolution, Interface is 4 line SPI, support customized FPC design. Driver IC is ST7789V. It's with 2pcs LEDs, white backlight. Color depth is 65K with good performance. Standard brightness is 400 nits, TSD also have the other model with higher brigntess, around 800 nits, which is suitable for outdoor using. This small round tft display is IPS glass, with free viewing angle. Widely using for the smart watches.

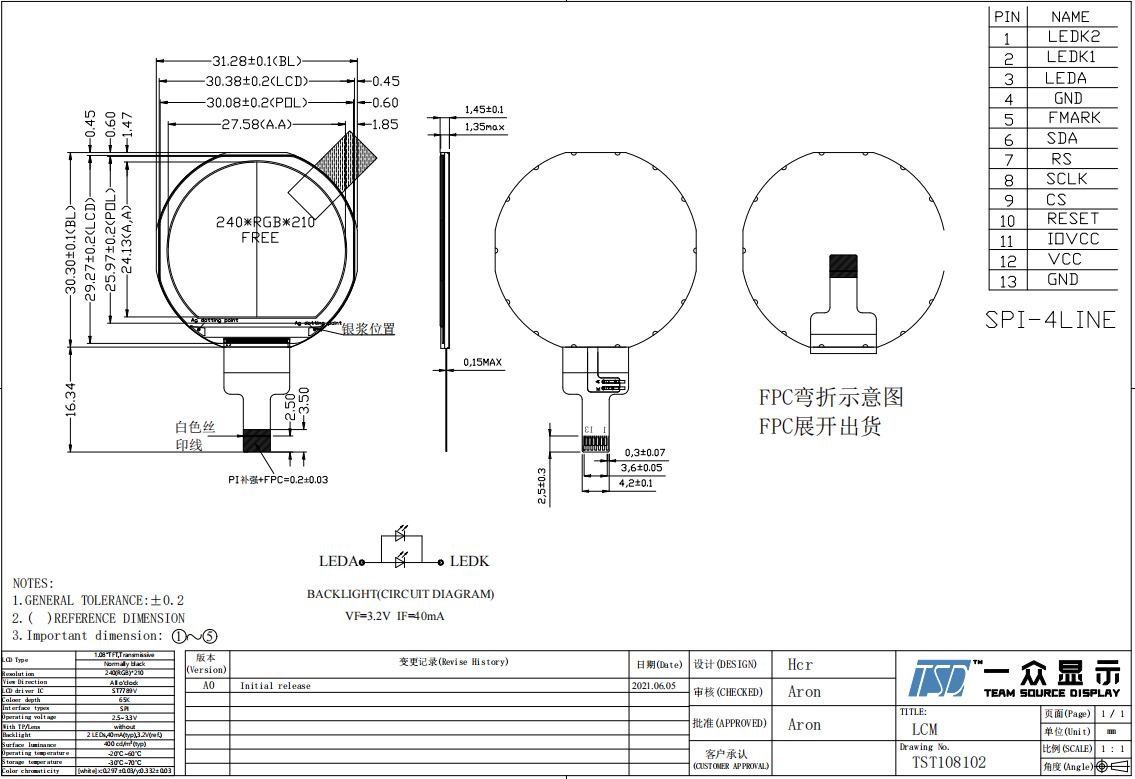

Drawing:




Specifications:



General Specification
Part No.  TST108102
Outline Dimension(mm)

31.28(W)x30.3(H)x1.45(D)

Active Area(mm) 27.58(W) x 24.13(H)
Resolution(dots) 240x (RGB) × 210
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240RGB(H)xRGBx210(V)
Touch panel  without
Driver IC ST7789V
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 1.08 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 LEDK2 LED Cathode
2 LEDK1 LED Cathode
3 LEDA LED Anode
4 GND Power Ground
5 FMARK Tearing effect signal is used to synchronize MCU to frame memory writing.
6 SDA SPI interface input/output pin. The data is latched on the rising edge of the SCL signal.
7 RS Display data/command selection pin in 4-line serial interface.
8 SCLK This pin is used to be serial interface clock.
9 CS Chip selection pin; Low enable, High disable.
10 RESET This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low.
11 IOVCC Power Supply for I/O system. IOVCC=1.65V~3.3V
12 VCC Power Supply for Analog, VCC=2.5V~3.3V.
13 GND Power Ground






Applications:



TSD round tft lcd display, are widely using in Industrial display modules, car clocks, electronic instruments, CDs, VCDs, car audios, car LCD remote controls, household appliances, industrial instrument displays, electronic dictionaries, mobile phones, calculators, fax machines, MP3, handheld telephones, air conditioners, Handheld electronic game consoles, calculators, electronic watches, electronic pets, BP machines, electronic scales, mobile phones, electronic notepads, radios, etc., products with integrated touch and display are used in all aspects of the Internet of Things in social life.
