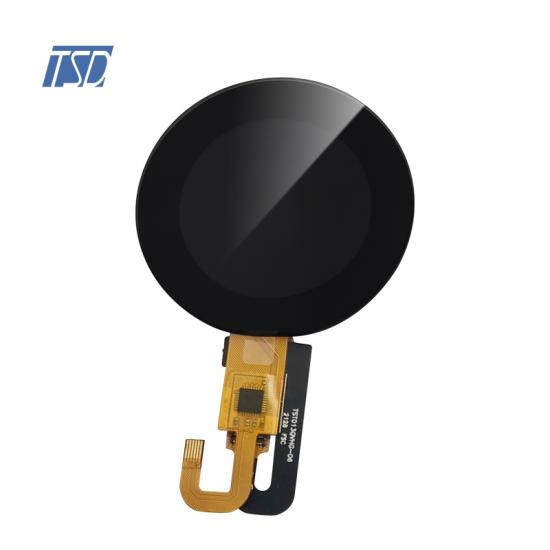

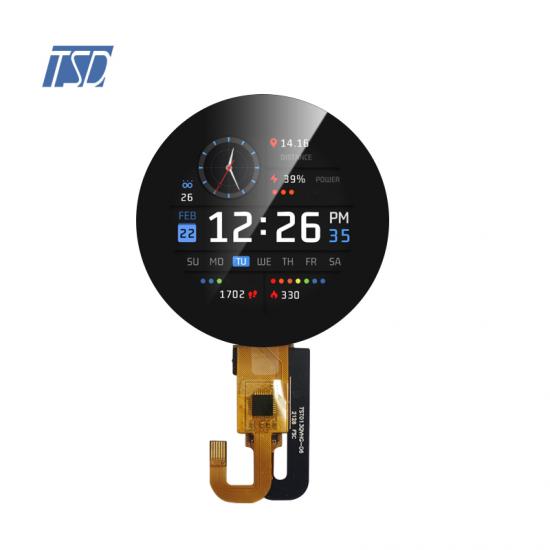

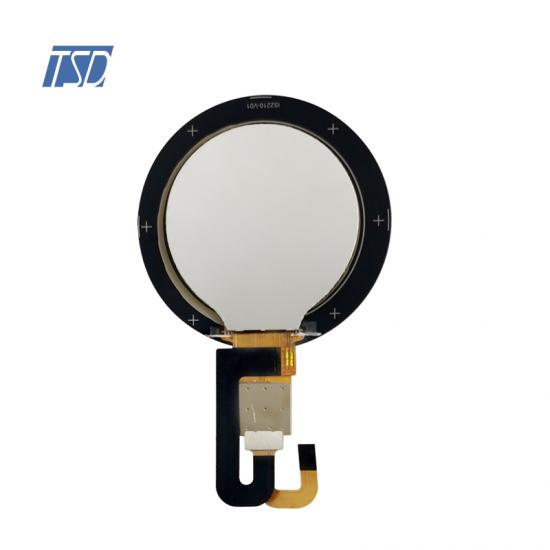

TSD 1.3 inch 240x240 round tft lcd touch display with PCAP touch screen



  • Model Name: TST013QVHG-06C
  • LCD Type: 1.3 inch IPS TFT display
  • Resolution: 240x240
  • Viewing angle: All o'clock
  • Brightness: 250 cd/m2
  • Driver IC: GC9A01
  • Interface: SPI
  • Touch Screen: with Capacitive touch screen
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST013QVHG-06C is 1.3 inch 240x240 round tft lcd touch display with PCAP touch screen, it's with 24 pins SPI interface. CTP is I2C interface with 6 pins. Control chip is GC9A01, for touch screen is ST1624i. This is IPS TFT with full viewing direction. Outline size of this tft touch module is 47.4(W)x46.6(H)x3.75(D)mm, active area for LCD is 32.4(W) x 32.4(H)mm, total thickness is 3.75mm. Thickness of cover glass is 1.8mm, we could also make varity customized designs of touch screen. AR, AG, AF coating are all available to add on the touch.

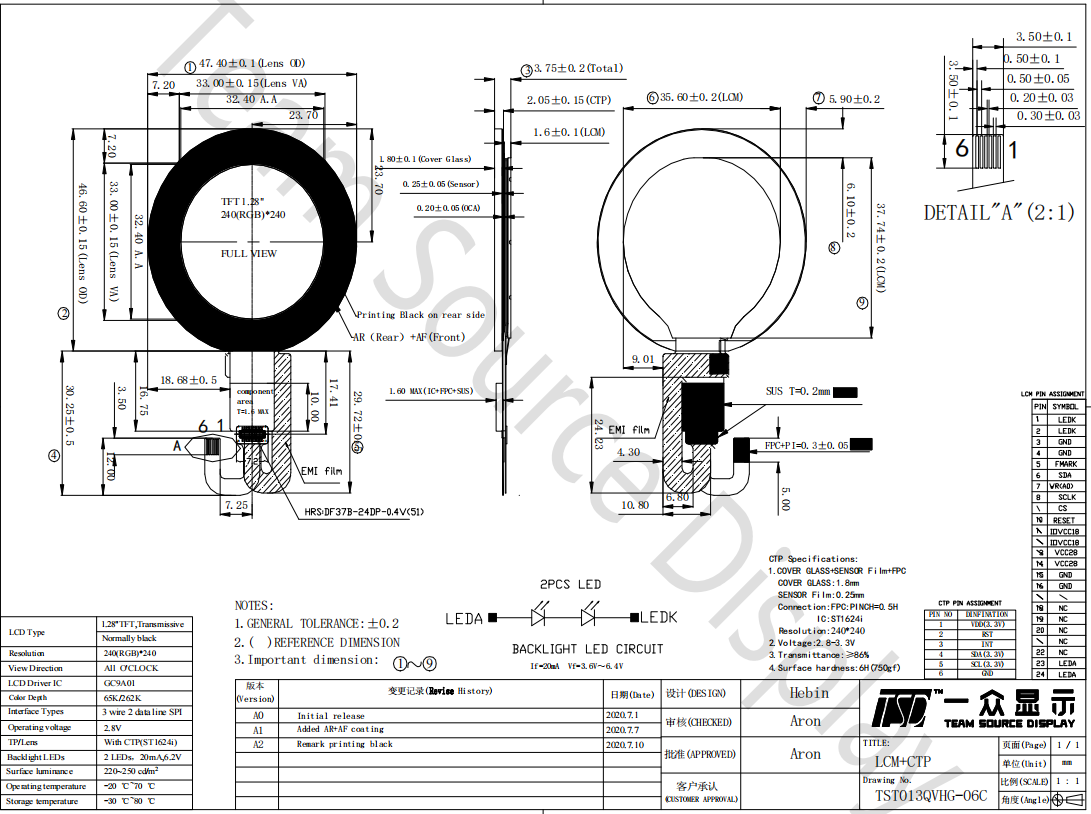

Drawing:




Specifications:



General Specification
Part No.  TST013QVHG-06C
Outline Dimension(mm)

47.4(W)x46.6(H)x3.75(D)

Active Area(mm) 32.4(W) x 32.4(H)
Resolution(dots) 240x (RGB) x 240
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240RGB(H)xRGBx240(V)
Touch panel  with Capacitive touch panel
Driver IC GC9A01
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 1.3 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Brightness 250 cd/m2
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin.
2 LEDK Backlight K Cathode input pin.
3 GND System Ground (0V)
4 GND System Ground (0V)
5 FMARK Output a frame head pulse signal
6 SDA SPI interface input/output pin.
7 WR(A0) Second Data lane in 2 data lane serial interface. If no used,please open it
8 SCLK SPl interface clock input
9 CS Chip select
10 RESET Chip reset pin(Low Active)
11 IOVCC18 Power supply for digital interface lO pins
12 IOVCC18
Power supply for digital interface lO pins
13 VCC28 Power supply 2.8V
14 VCC28 Power supply 2.8V
15 GND System Ground (0V)
16 GND System Ground (0V)
17~22 NC Not connect
23 LEDA Backlight anode input pin.
24 LEDA Backlight anode input pin.






Applications:



TSD Circular LCD screens are divided into many different sizes. Small-sized circular screens are more widely used, such as smart wearables, smart watches, smart wall clocks, electric vehicle meters, car display meters, smart home appliances, smart handheld devices, etc.
