TSD 1.3 inch SPI 240x240 RGB TFT display with high brightness



  • Model Name: TST013QVHG-06D
  • LCD Type: 1.3 inch IPS TFT display
  • Resolution: 240x240
  • Viewing angle: All o'clock
  • Brightness: 600 cd/m2
  • Driver IC: GC9A01
  • Interface: SPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:

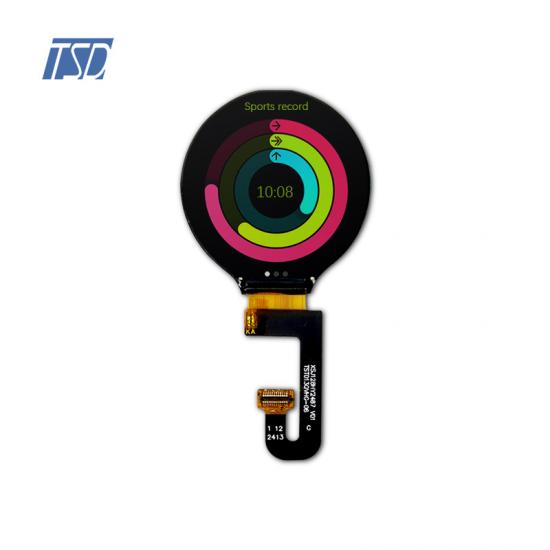

TST013QVHG-06D is 1.3 inch round tft lcd display with 600 nits high brightness, coming out with 24 pins SPI interface. Driver IC is GC9A01. LCD type is TFT, transmissive mode, IPS glass with normally black. Resolution is 240x240 dots, full view. The FPC is designed with EMI film to avoid the Electromagnetic Interference. TSD have the ability to make all kinds of customized designs basing on customer's requirements.

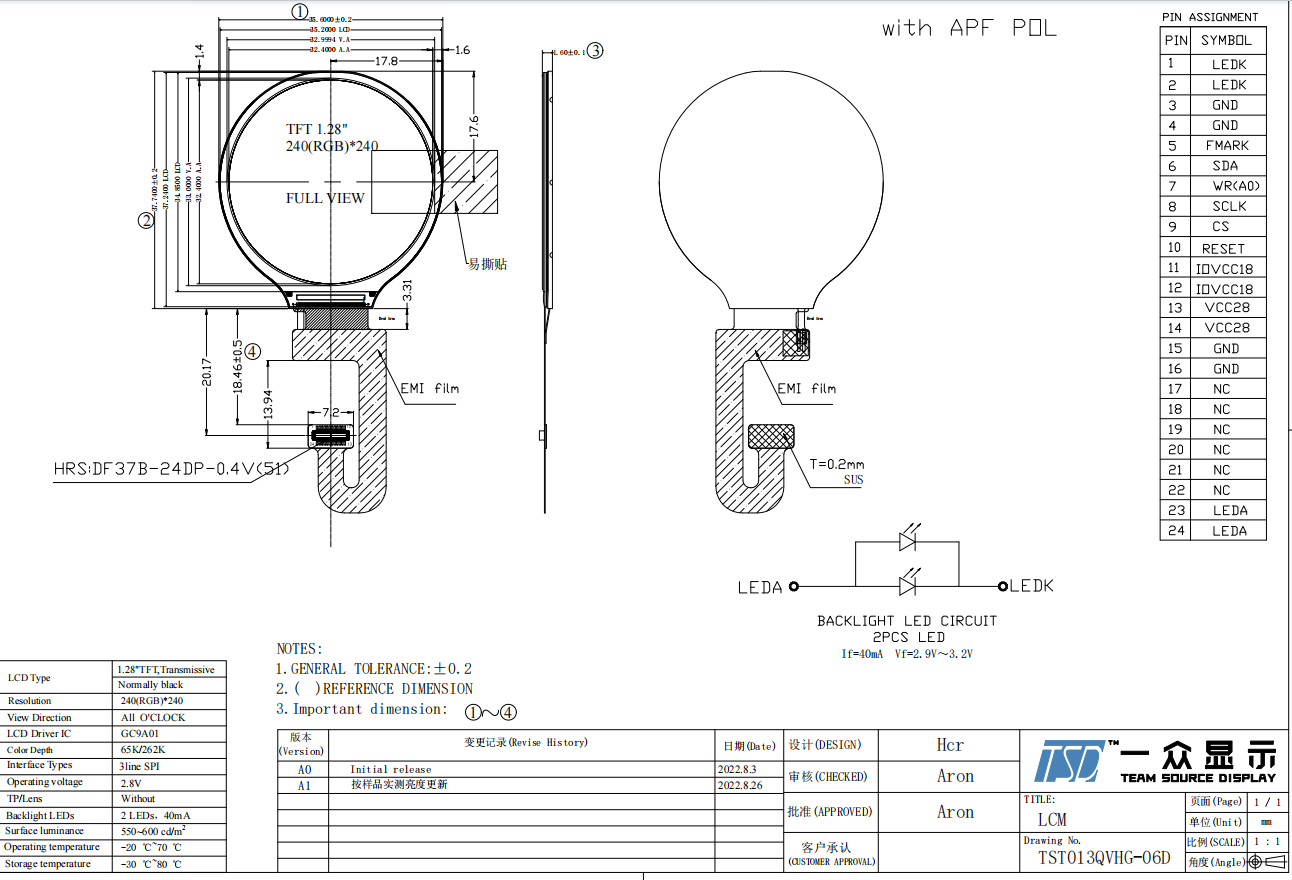

Drawing:




Specifications:



General Specification
Part No.  TST013QVHG-06D
Outline Dimension(mm)

35.6(W)x37.7(H)x1.6(D)

Active Area(mm) 32.4(W) x 32.4(H)
Resolution(dots) 240x (RGB) x 240
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240RGB(H)xRGBx240(V)
Touch panel  without
Driver IC GC9A01
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 1.3 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Brightness 550~600 cd/m2
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin.
2 LEDK Backlight K Cathode input pin.
3 GND System Ground (0V)
4 GND System Ground (0V)
5 FMARK Output a frame head pulse signal
6 SDA SPI interface input/output pin.
7 WR(A0) Second Data lane in 2 data lane serial interface. If no used,please open it
8 SCLK SPl interface clock input
9 CS Chip select
10 RESET Chip reset pin(Low Active)
11 IOVCC18 Power supply for digital interface lO pins
12 IOVCC18
Power supply for digital interface lO pins
13 VCC28 Power supply 2.8V
14 VCC28 Power supply 2.8V
15 GND System Ground (0V)
16 GND System Ground (0V)
17~22 NC Not connect
23 LEDA Backlight anode input pin.
24 LEDA Backlight anode input pin.






Applications:



For TSD round tft display, it is not only using for Smart watch, but also suitable for smart home appliances such as air fryers with screens, air purifier,  water heaters, washing machines, ovens, integrated stoves, etc. and various applications that require screen displays. It is also often used as the first choice for upgrading traditional segment screen and black and white screen product solutions.
