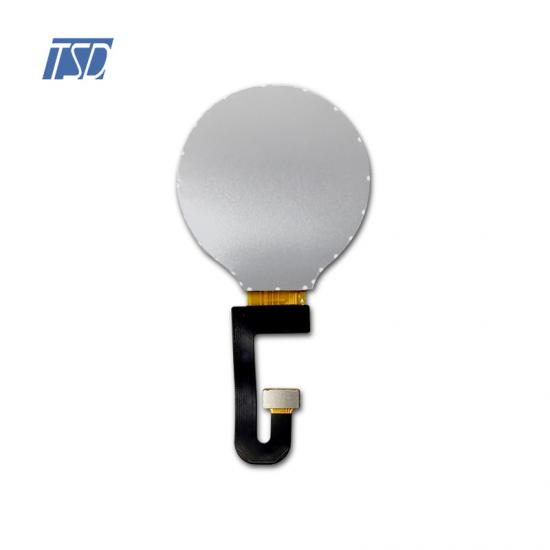

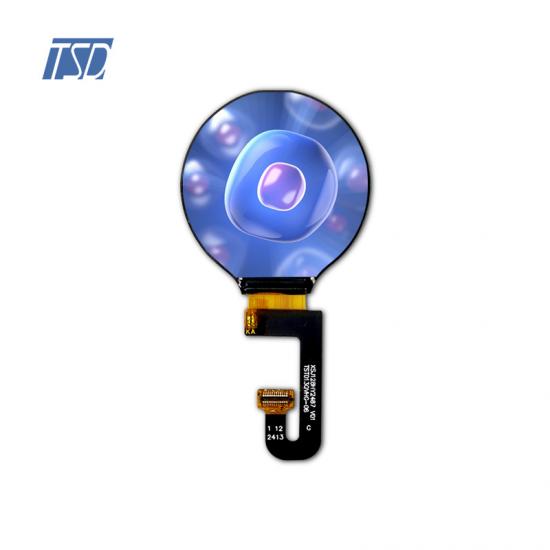

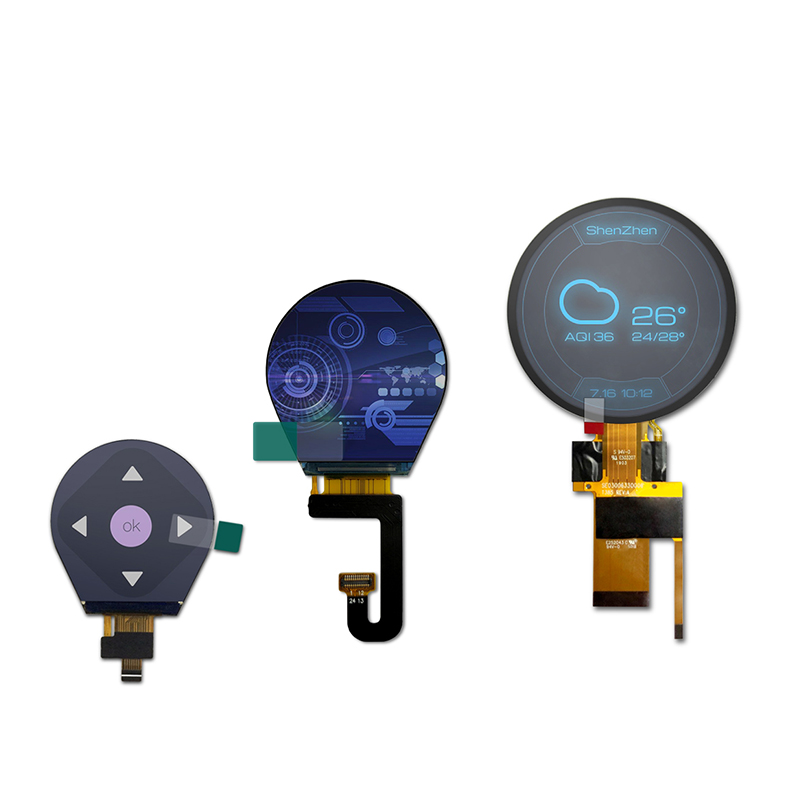

TSD 240x240 resolution 1.3 inch IPS round lcd display



  • Model Name: TST013QVHG-06B
  • LCD Type: 1.3 inch IPS TFT display
  • Resolution: 240x240
  • Viewing angle: All o'clock
  • Brightness: 450 cd/m2
  • Driver IC: GC9A01
  • Interface: SPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST013QVHG-06B is 1.3 inch color round tft display, it's IPS circle lcd display with full viewing direction. Resolution is 240x240, interface type is 3 line SPI. Outline dimeniosn is 35.6x37.7x1.6mm, active area is 32.4x32.4mm. Driver IC is GC9A01. This 1.28 inch round lcd display is with high contrast 800:1, standard luminance is 450 cd/m2, we also have the other model with higher brightess. Backlight LED circuit is 2 LEDs, 40mA. Operating voltage is 2.8V. Standard touch screen and customized touch panel are all available.

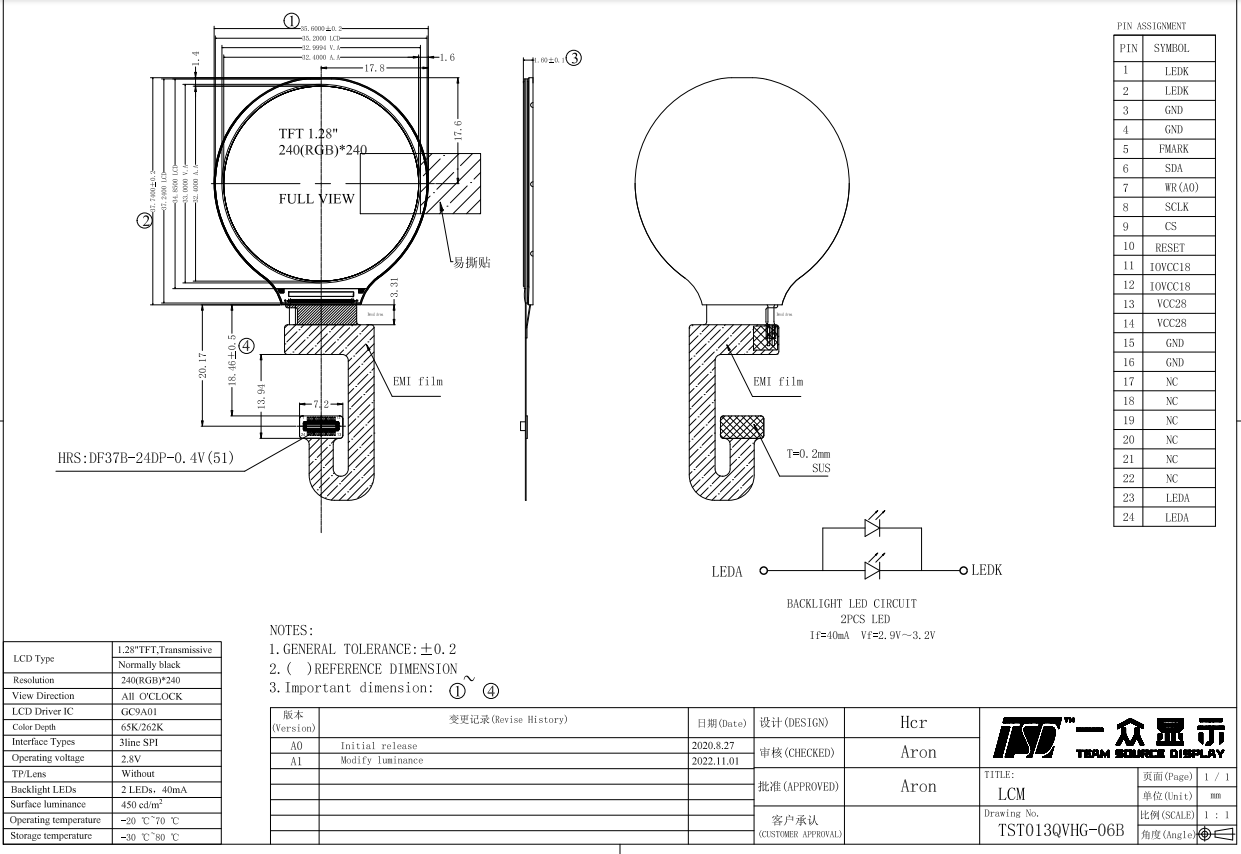

Drawing:




Specifications:



General Specification
Part No.  TST013QVHG-06B
Outline Dimension(mm)

35.6(W)x37.7(H)x1.6(D)

Active Area(mm) 32.4(W) x 32.4(H)
Resolution(dots) 240x (RGB) × 240
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240RGB(H)xRGBx240(V)
Touch panel  without
Driver IC GC9A01
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 1.3 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin.
2 LEDK Backlight K Cathode input pin.
3 GND System Ground (0V)
4 GND System Ground (0V)
5 FMARK Output a frame head pulse signal
6 SDA SPI interface input/output pin.
7 WR(A0) Second Data lane in 2 data lane serial interface. If no used,please open it
8 SCLK SPl interface clock input
9 CS Chip select
10 RESET Chip reset pin(Low Active)
11 IOVCC18 Power supply for digital interface lO pins
12 IOVCC18
Power supply for digital interface lO pins
13 VCC28 Power supply 2.8V
14 VCC28 Power supply 2.8V
15 GND System Ground (0V)
16 GND System Ground (0V)
17~22 NC Not connect
23 LEDA Backlight anode input pin.
24 LEDA Backlight anode input pin.






Features:



The circular LCD screen is a major innovation in liquid crystal display technology. Its display principle is similar to that of the square LCD screen. However, through adjustments to the LCD glass production technology and screen parameters, the circular screen can display normally even in a circular state. . Compared with traditional rectangular LCD screens, circular LCD screens have a more beautiful appearance and are more in line with people's aesthetic concepts. In recent years, circular LCD screens have become more and more popular in the market and are widely used in various fields. The application prospects of circular LCD screens are very broad. With the continuous advancement of technology and the growing market demand, it will have wider application scenarios and richer functions.



As for TSD round tft display, we have full series of round display module,contact us today for more information.
