TSD 12.1 inch 1280x800 resolution IPS TFT LCD module for automotive

  • Model Name: TST121XGIC-E02
  • LCD Type: 12.1 inch TFT LCD display
  • Resolution: 1280x800
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Surface treatment: Anti-Glare
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +85℃





Description:



TST121XGIC-E02 is a TFT Liquid Crystal Display module with LED Backlight unit LVDS interface. This module supports 1280 x 800 Wide-XGAAAS mode and can display 262k/16.7M colors . The LED converter for Backlight is built in control board. This TFT LCD module is the automotive grade

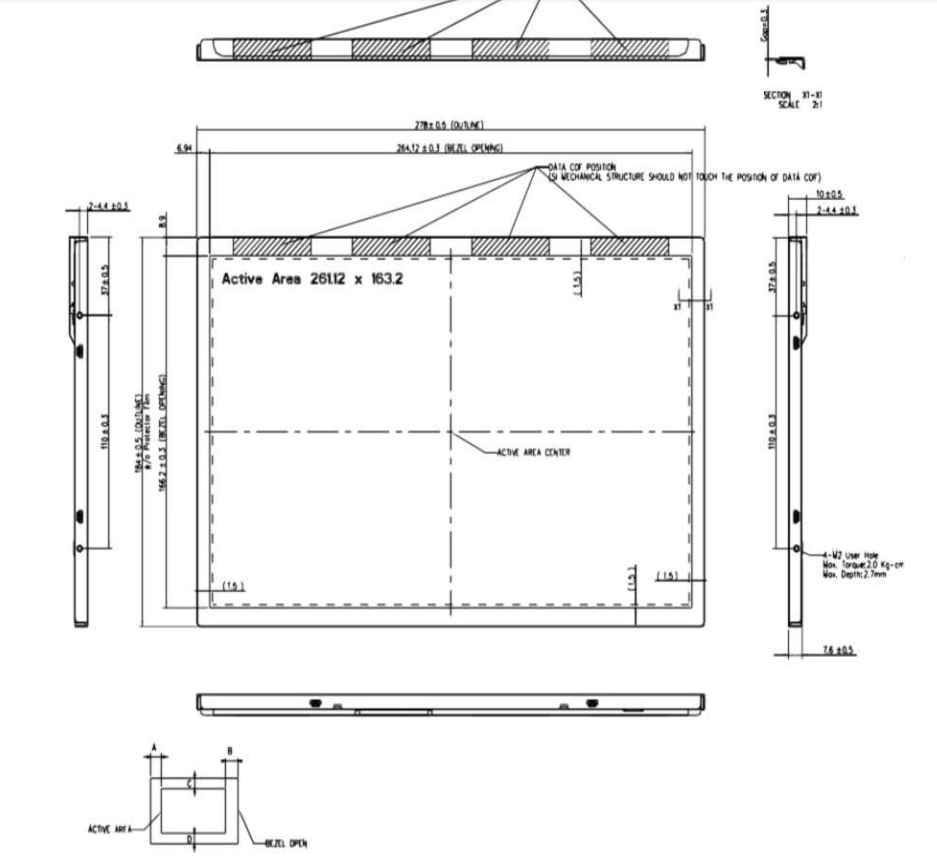

Drawing:



12.1 inch LCD


Specifications:



General Specification
Part No.  TST121XGIC-E02
Outline Dimension(mm)  323.4x203.4x8.7mm
Active Area(mm) 261.12x163.2mm
Resolution(dots) 1280x800
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +85°C
Number of Pixel(pixels) 1280(H)xRGBx800(V)
Touch panel  without
Brightness 1000 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 12.1 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface LVDS
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 12V LED power
2 12V LED power
3 12V LED power
4 12V LED power
5 ENLED Enable pin
6 Dimming Backlight Adjust
 7  NC No Connection or Ground
 8  NC No Connection or Ground
 9  VCC Power supply: +3.3V
10  VCC Power supply: +3.3V
11  GND Ground
12  GND Ground
13  RX0- Negative transmission data of pixel 0
14  RX0+ Positive transmission data of pixel 0
15 GND Ground
16 RX1- Negative transmission data of pixel 1
17 RX1+ Positive transmission data of pixel 1
18 GND Ground
19 RX2- Negative transmission data of pixel 2
20 RX2+ Positive transmission data of pixel 2
21 GND Ground
22 RXCLK- Negative of clock
23 RXCLK+ Positive of clock
24 GND Ground
25 RX3- Negative transmission data of pixel 3
26 RX3+ Positive transmission data of pixel 3
27 GND Ground
28 VCC

LVDS 6/8 bit select function control,

Low → 6 bit Input Mode

High → 8bit Input Mode

29 GND Ground
30 NC No Connection or Ground




Features:



- Wide viewing angle- High contrast ratio

-XGA(1280 x 800 pixels) resolution-Wide operating temperature

- DE(Data Enable) mode

- LVDS(Low Voltage Differential Signaling) interface- Reversible-scan direction

- RoHS Compliance

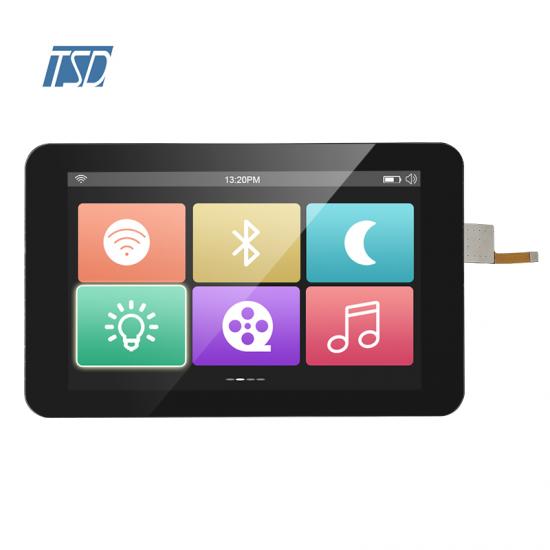

10.1 inch lcd module
