TSD 12.1 inch 1024x768 resolution IPS TFT LCD Screen with LVDS interface

  • Model Name: TST121XGCE-M01
  • LCD Type: 12.1 inch TFT LCD display
  • Resolution: 1024x768
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Surface treatment: Anti-Glare
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +75℃
  • Storage Temperature: -40 ~ +80℃





Description:

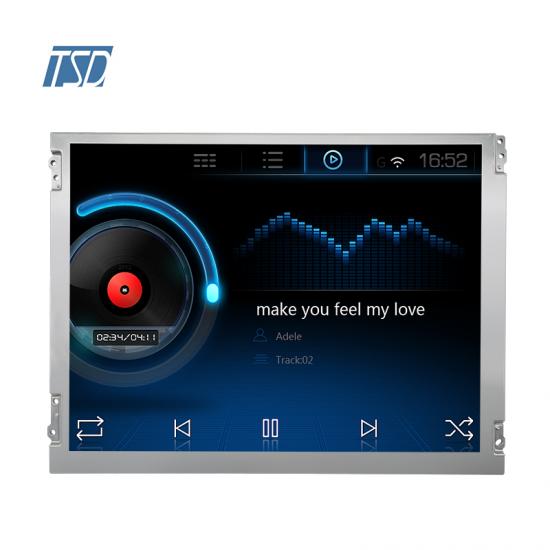

TST121XGCE-M01 is 12.1 inch 1024x768 resolution IPS tft lcd screen with 1000 nits high brightness. This model is a 12.1” TFT-LCD IPS module with a white LED Backlight Unit and a 20-pin 1channel LVDS interface. This module supports 1024 x 768 XGA mode and displays 262k/16.7M colors. The converter for the Backlight Unit is built in. Outline dimension of LCM is 260.5x204x8.4mm, active area is 245.76x184.32mm. It's aumotive grade display.

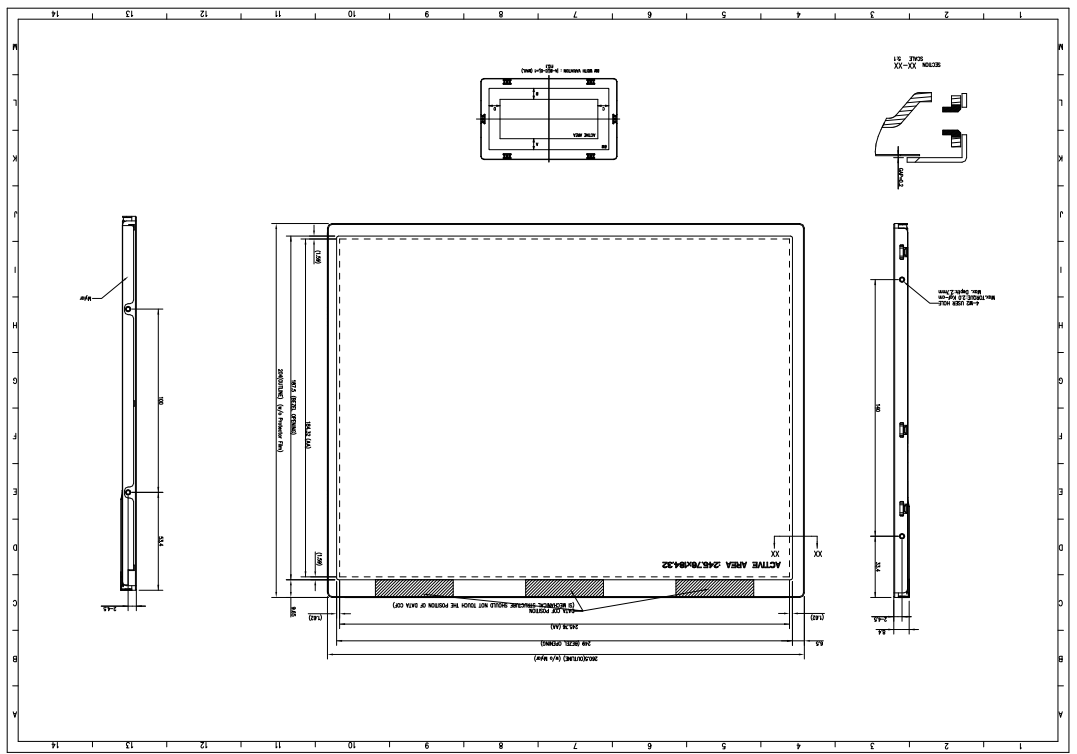

Drawing:



12.1 inch LCD


Specifications:



General Specification
Part No.  TST121XGCE-M01
Outline Dimension(mm)  260.5x204x8.4mm
Active Area(mm) 245.76x184.32mm
Resolution(dots) 1024x768
Operating temperature(°C) -30 ~ +75°C
Storage temperature(°C) -40 ~ +80°C
Number of Pixel(pixels) 1024(H)xRGBx768(V)
Touch panel  without
Brightness 1000 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 12.1 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface LVDS
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 RX3+ Differential Data Input, CH3 ( Positive )
2 RX3- Differential Data Input, CH3 (Negative )
3 NC No connect
4 GND LVDS 6/8 bit select function control,
Low → 6 bit Input Mode
High → 8bit Input Mode
5 GND Ground
6 RXIN0+ Differential Clock Input ( Positive )
7 RXIN0- Differential Clock Input ( Negative )
8 GND Ground
9 RXIN2+ Differential Data Input , CH2 ( Positive )
10 RXIN2- Differential Data Input , CH2 ( Negative )
11 NC For LCD internal use only, Do not connect
12 RXIN1+ Differential Data Input , CH1 ( Positive )
13 RXIN1- Differential Data Input, CH1 ( Negative )
14 NC For LCD internal use only, Do not connect
15 RXIN0+ Differential Data Input , CH0 ( Positive )
16 RXIN0- Differential Data Input, CH0 ( Negative )
17 reLR Horizontal Reverse Scan Control,
Low → Normal Mode.
High → Horizontal Reverse Scan
18 reUD Vertical Reverse Scan Control,
Low → Normal Mode,
High → Vertical Reverse Scan
19 VCC Power supply
20 VCC Power supply




Features:



- Wide viewing angle- High contrast ratio

-XGA(1024 x 768 pixels)resolution-Wide operating temperature

- DE(Data Enable) mode

- LVDS(Low Voltage Differential Signaling) interface- Reversible-scan direction

- RoHS Compliance
