TSD 640x480 resolution 5.7 inch tft lcd display module with wide temperature range

  • Model Name: TST057VGCH-H01
  • LCD Type: 5.7 inch TFT LCD display
  • Resolution: 640x480
  • Viewing angle: All o'clock
  • Brightness: 360 cd/m2
  • Display color: 262K
  • Interface: TTL
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -30 ~ +85℃





Description:



TST057VGCH-H01 is a 5.7” TFT Liquid Crystal Display lAV module with LED backlight and 40 pins 1ch-TTL interface.This module supports 640 x 480 VGA mode and can display 262k colors. The PSWG is to establish a set of displays with standard mechanical dimensions and select electricalinterface requirements for an industry standard 5.7” VGA LCD panel and the LED driving device for Backlight is built in PCBA.




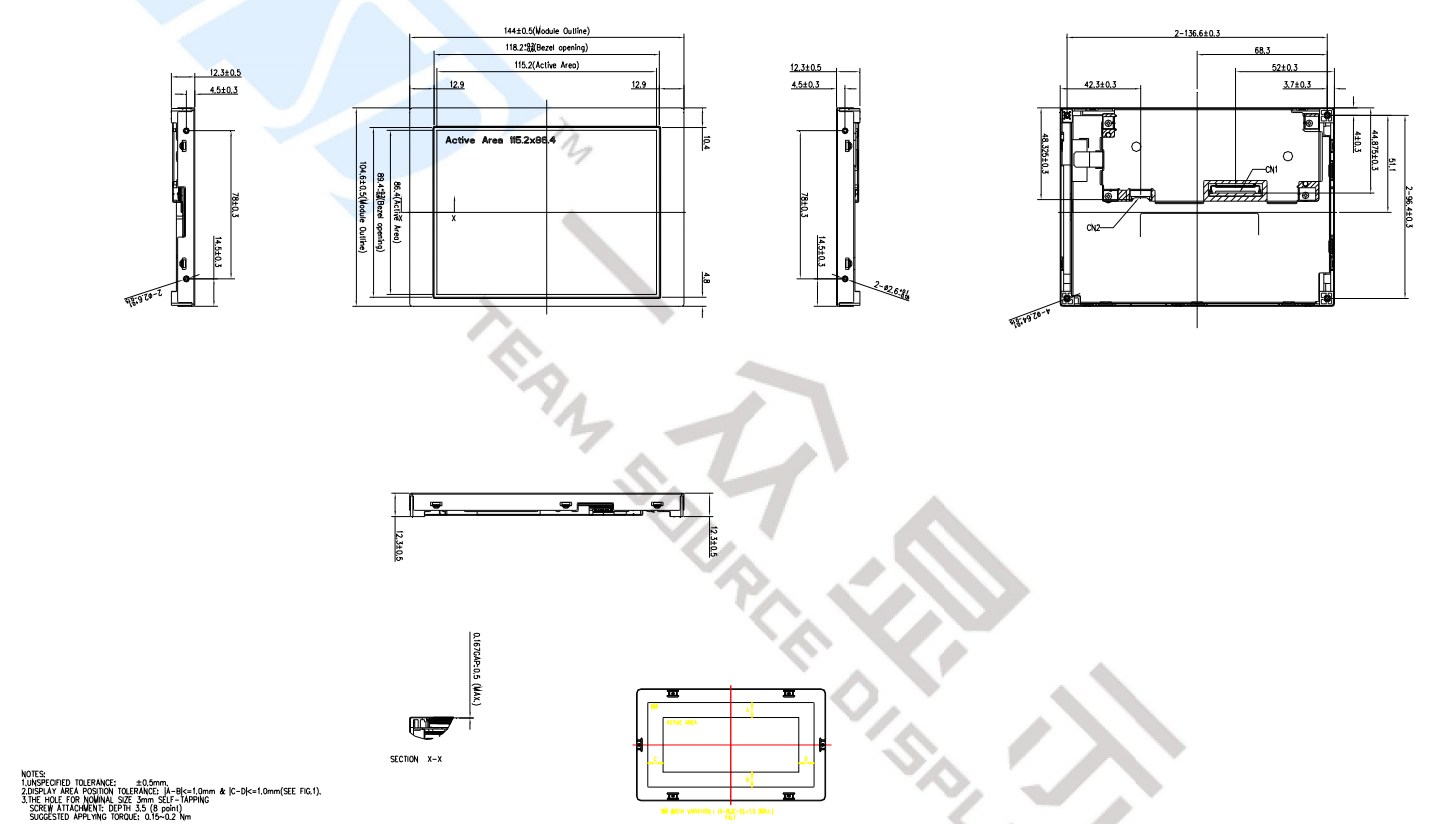

Drawing:



5.7 inch tft lcd


Specifications:



General Specification
Part No.  TST057VGCH-H01
Outline Dimension(mm)  144x104.6x12.8
Active Area(mm) 115.2x86.4
Resolution(dots) 640x480
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -30 ~ +85°C
Number of Pixel(pixels) 640(H)xRGBx480(V)
Touch panel  without
Brightness 360 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 5.7 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface TTL
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 GND Ground
2 CLK Dot Clock
3 IHS Horizontal synchronous signal
4 IVS Vertical synchronous signal
5 GND Power ground

6~11

R5~R0 Ground
12 GND Ground
13~18 G5~G0 Green data
19 GND Ground
20~25 B5~B0 Blue data
26 GND Ground
27 DE Data enable signal
28 NC No connect
29 NC No connect
30 R/L Horizontal Reverse Scan Control,Low or NC > Normal Mode.High > Horizontal Reverse Scan
31 U/D Vertical Reverse Scan Control,High or NC > Normal ModeLow  Vertical Reverse Scan
32 NC No connect
33 NC No connect
34 NC No connect
35 MODE DE/HV mode select.High > HV mode.Low or NC >DE mode.
36 NC No connect
37 NC No connect
38 VCC Power supply (3.3V)
39 VCC Power supply (3.3V)
40 VCC Power supply (3.3V)




Features:



  • - Wide viewing angle
  • - High contrast ratio
  • - Fast response time
  • - VGA( 640x 480 pixels) resolution
  • - DE(Data Enable)mode and DE+SYNC mode selection
  • -TTL Interface
  • - PSWG (Panel Standardization Working Group)
  • -Wide operating temperature.
  • -Reversible scan direction
  • - RoHS compliance

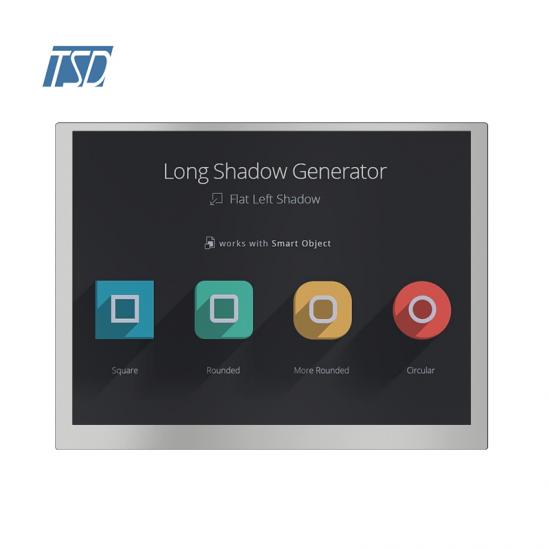

5.7 inch tft lcd
