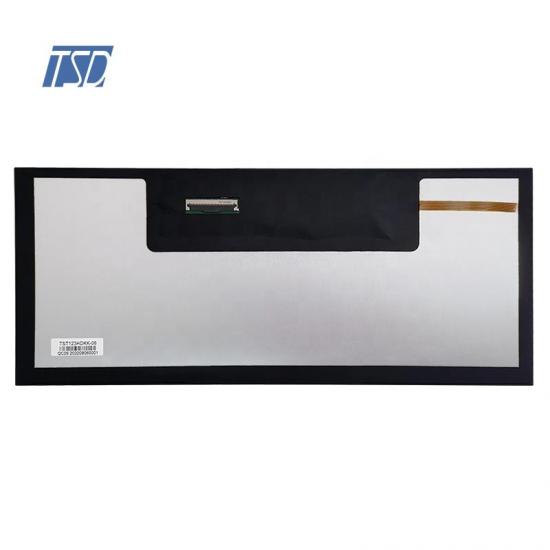

12.3 inch tft lcd high resolution 1920x720 with 1000 high brightness wide temperature LVDS interface
| Specification | |
| LCD type | 12.3 inch ips display |
| Display type | 12.3 inch TFT, 16.7M color, normally black |
| Driver element | color active matrix thin film transistor |
| Viewing angle | All |
| Outline Dimension(mm) | 302.53x123.54x6.51 |
| Active Area.(mm) | 152.4x91.44 |
| Resolution(dots) | 1920*720 |
| Operating Voltage | 3.3V |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally black |
| Luminance(cd/m2) | 1000(typ.) |
| Contrast Ratio | 1500(typ.) |
| Application | Notebook, advertisement display, etc. |
| Number of pins | 50 |
| Interface | LVDS |
| Module lifetime(Hours) | 50,000-100,000 |
