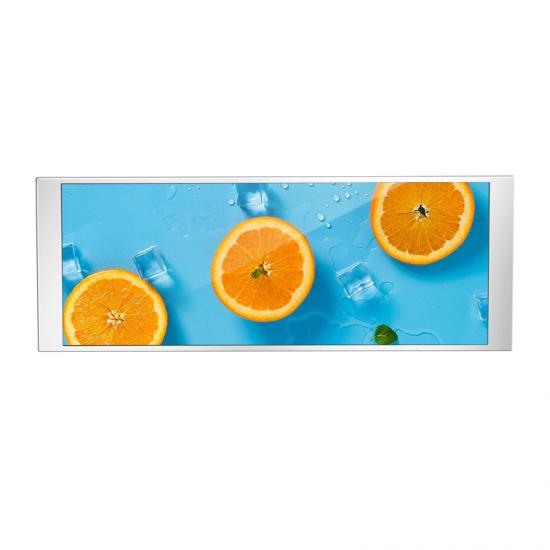

Hot selling 9 inch tft automotive lcd display 1280*720 res high brightness 800
| Specification | |
| LCD type |
9 inch ips display |
| Display type | 9inch TFT, 16.7M color, normally black |
| Driver element | color active matrix thin film transistor |
|
Viewing angle |
All |
| Outline Dimension(mm) | 210.7x126.5x5.0 |
| Active Area.(mm) | 198.91x111.89 |
| Resolution(dots) | 1280xRGBx720 |
|
Operating Voltage |
3.3V |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode |
Normally black |
| Luminance(cd/m2) | 800(typ.) |
| Contrast Ratio | 1000(typ.) |
| Application | Notebook, advertisement display, etc. |
| Number of pins | 60 |
| Interface | LVDS |
| Module lifetime(Hours) | 50,000-100,000 |
