TSD 7 inch UART TFT LCD module with Resistive touch screen

  • Model Name: ProLCD-T070R01
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: 12 o'clock
  • Brightness: 400 cd/m2
  • Driver IC: EK9716BD&EK73002ACGB
  • Interface: UART
  • Touch Screen: with Resistive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:

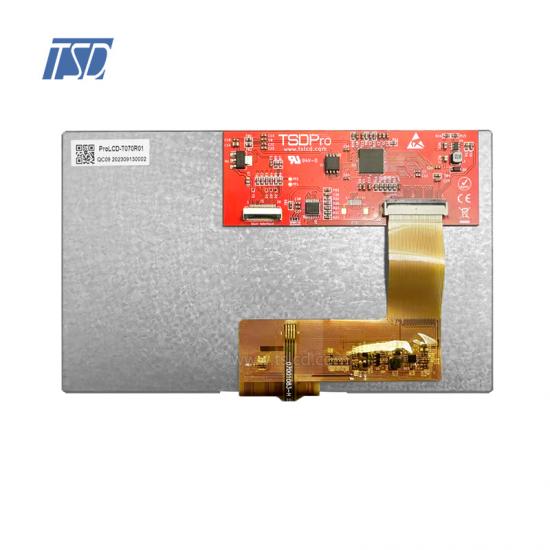

ProLCD-T070R01 is 7 inch color TFT lcd module with Resisitive touch screen, resolution is 800x480, TN display with 12 'o'clock viewing angle, 16.7M color depth with good performance, using EK9716BD&EK73002ACGB driver controller. This 7 inch LCD is the standard industry grade display, operating temperature is -20 ~ +70°C, storage temperature is -30 ~ +80°C. LCD type is transmissive display, 21 LEDs backlight and 3.3V power voltage. Except for this standard design, TSD also could make many other customized designs basing on customer's requirement.



The definition of serial UART interface panel  is a TFT color LCD display control module with serial communication. It's a set of display solutions consisting of a microcontroller or PLC with a controller. The communication part of the display solution consists of serial communication, UART serial port or SPI serial port, etc.; it consists of three parts: display driver board and LCD display, some will also come out with product housing together. Receive instructions sent from the serial port of the user's microcontroller and complete all operations of drawing on the LCD.

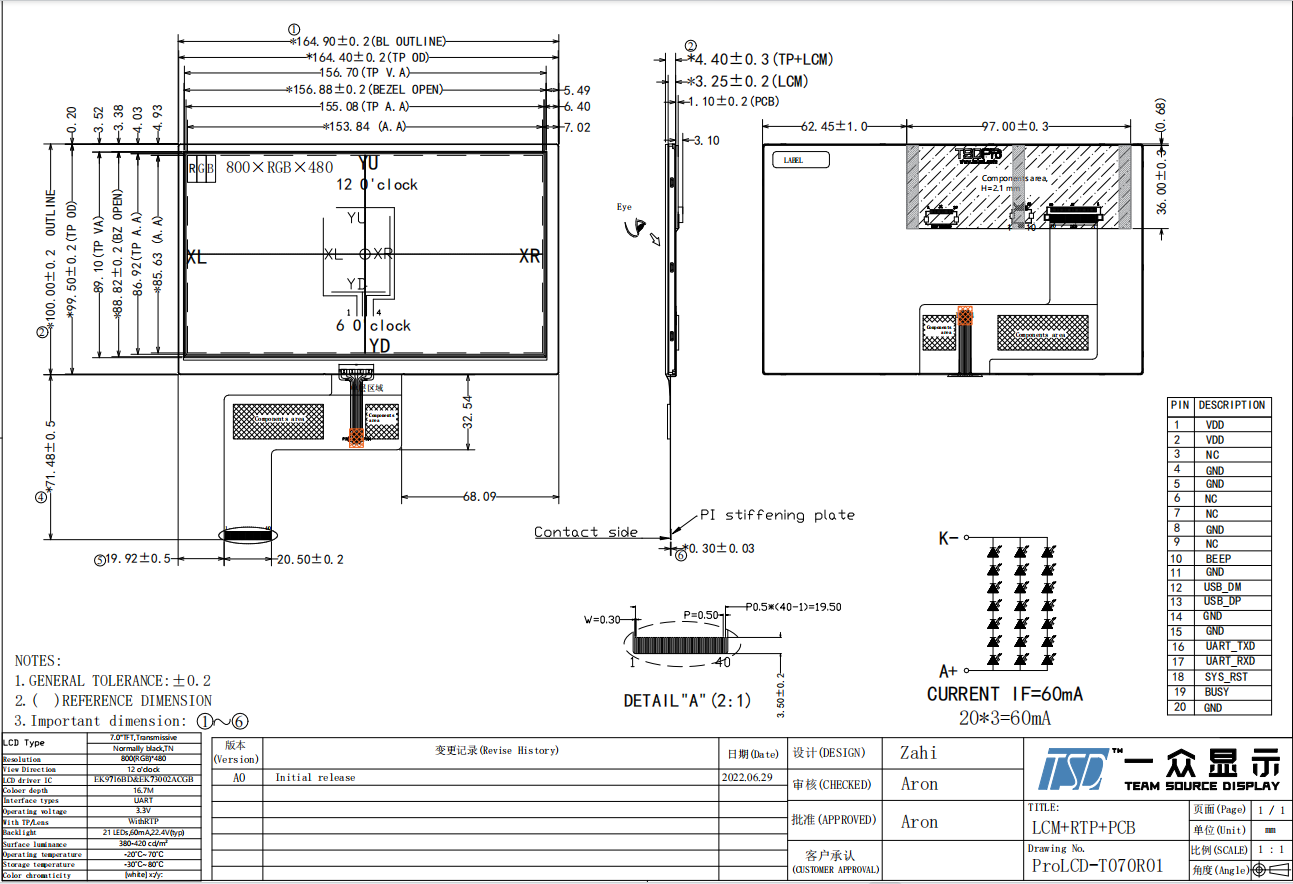

Drawing:




Specifications:



General Specification
Part No.  ProLCD-T070R01
Outline Dimension(mm)

164.90(W)x100.0(H)x4.4(D)

Active Area(mm) 153.84(W) x 85.63(H)
Resolution(dots)  800x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480V)
Touch panel  RTP
Driver IC EK9716BD&EK73002ACGB
Pixel arrangement RGB-stripe
Display mode Normal white, TN,7 inch TFT
Surface treatment Antiglare
View direction  12 o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 VDD Power voltage 5V
2 VDD Power voltage 5V
3 NC No connect
4 GND Power ground
5 GND Power ground
6 NC No connect
7 NC No connect
8 GND Power ground
9 NC No connect
10 BEEP Buzzer output
11 GND Power Ground
12 USB_DM This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data.
13 USB_DP This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data.
14 GND Power Ground
15 GND Power Ground
16 UART_TXD This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU
17 UART_RXD This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal
18 SYS_RST Global reset pin
19 BUSY This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy
20 GND Power Ground




Applications:



TSD 7 inch LCD display ProLCD-T070R01, are widely used in industrial automation, electric power, telecommunications, environmental protection, medical care, finance, petroleum, chemical industry, transportation, energy, geology, metallurgy, public inquiry and monitoring, smart home appliances, transportation rails, data computer rooms, charging piles, electric power medical, and national defenser, shared equipment and other industries and fields.
