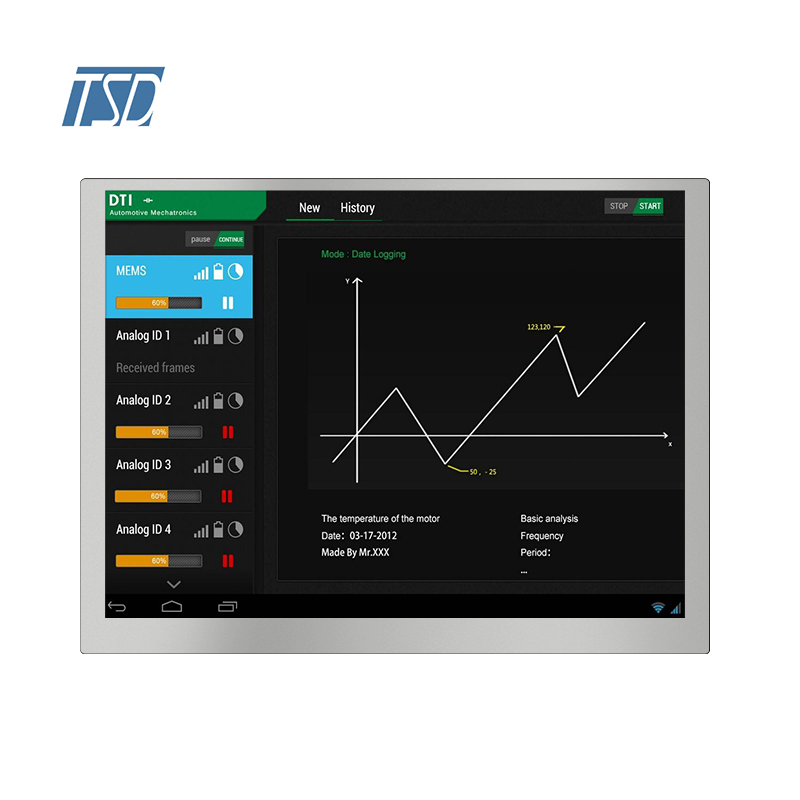

TSD 5.7 inch tft lcd display screen 640x480 resolution with TTL interface

  • Model Name: TST057VGGH-T01
  • LCD Type: 5.7 inch TFT LCD display
  • Resolution: 640x480
  • Viewing angle: All o'clock
  • Brightness: 450 cd/m2
  • Display color: 262K
  • Interface: TTL
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -30 ~ +85℃





Description:



TST057VGCH-T01 model is a 5.7” TFT-LCD module with a white LED Backlight Unit and a 33-pin TTL interface. This module supports 640 x 480 VGA mode and displays 262K colors. The converterfor the Backlight Unit is built in. Outline dimension of LCM is 144x104.6x12.8mm, LCD active area is 115.2x86.4mm. Power voltage is 3.3V typically. Operating temperature is -30 to 85°C, storage temperature is -30 to 85°C.




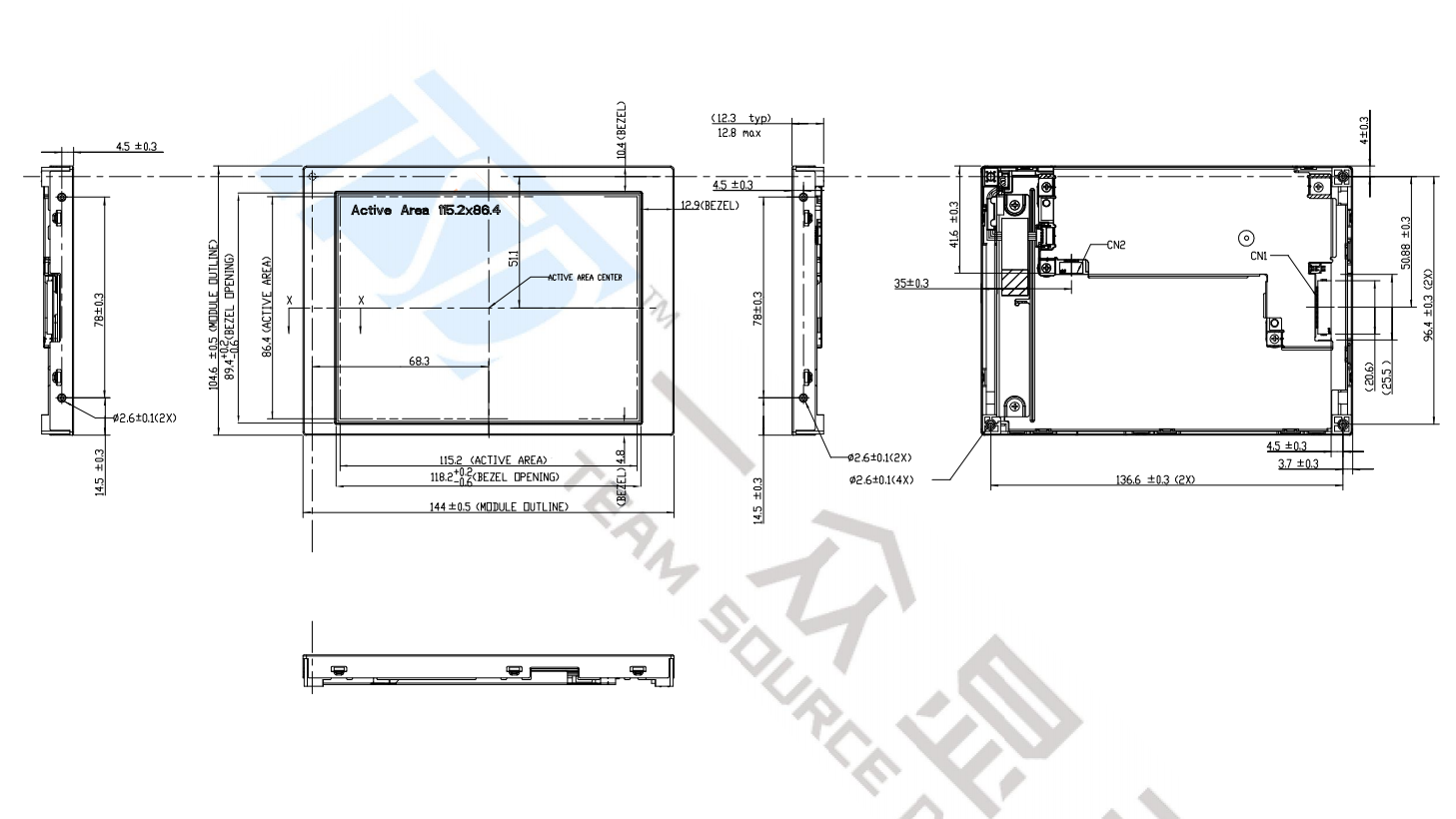

Drawing:



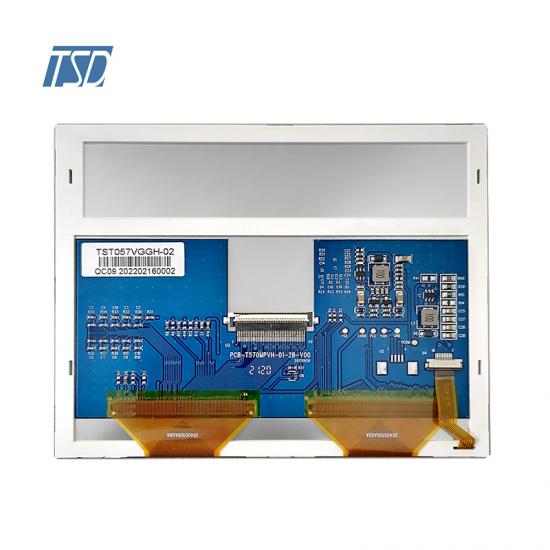

5.7 inch tft lcd module


Specifications:



General Specification
Part No.  TST057VGGH-T01
Outline Dimension(mm)  144x104.6x12.8
Active Area(mm) 115.2x86.4
Resolution(dots) 640x480
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -30 ~ +85°C
Number of Pixel(pixels) 640(H)xRGBx480(V)
Touch panel  without
Display color 262K
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 5.7 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface TTL
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 GND Ground
2 CLK Dot Clock
3 IHS Horizontal synchronous signal
4 IVS Vertical synchronous signal
5 GND Power ground

6~11

R0~R5 Ground
12 GND Ground
13~18 G0~G5 Green data
19 GND Ground
20~25 B0~B5 Blue data
26 GND Ground
27 DE Data enable signal
28 VDD Power supply (3.3V)
29 VDD Power supply (3.3V)
30 R/L Horizontal reverse pin
31 U/D Vertical reverse pin
32 NC No connect
32 GND Ground




Features:



  • - Wide viewing angle
  • - High contrast ratio
  • - Fast response time
  • - VGA(640x 480 pixels)resolution
  • - Wide operating temperature
  • - DE(Data Enable) mode and DE+SYNC mode
  • - TTL interface
  • - Reversible scan direction
  • - RoHS Compliance

5.7 inch lcd module
