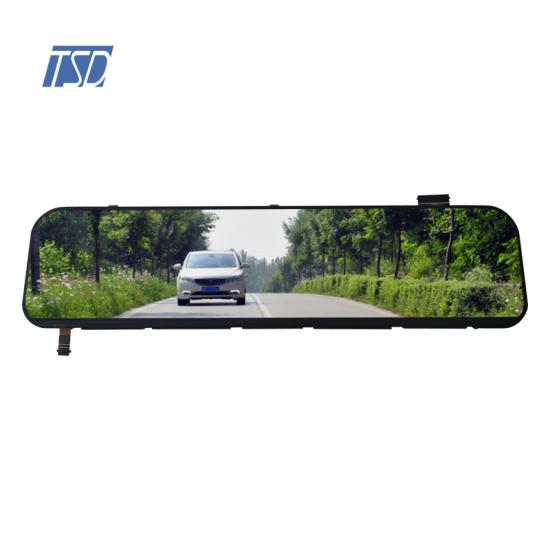

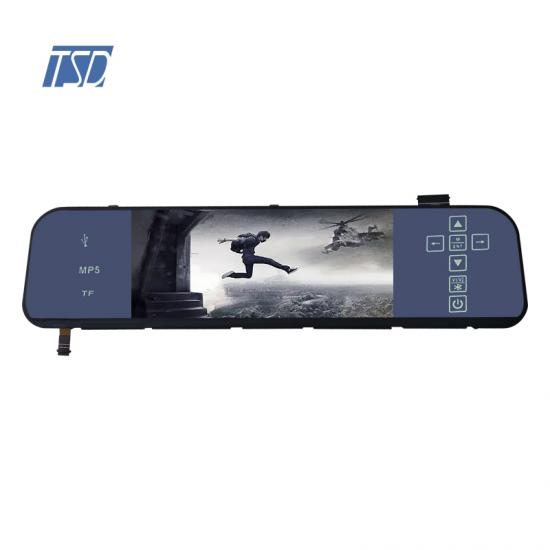

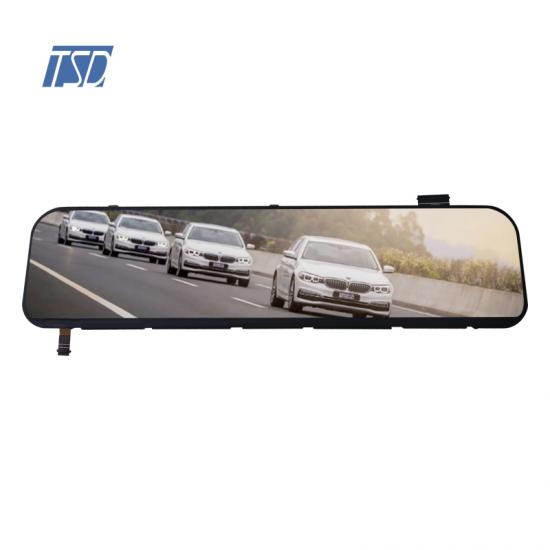

TSD 1280×320 resolution 9.2 inch IPS TFT Lcd 3000 lumin. for automobile rearview mirror

  • Model Name: TST092FHHH-01
  • LCD Type: 9.2 inch TFT LCD display
  • Resolution: 1920*384
  • Viewing angle: IPS all viewing angle
  • Brightness: 3500 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -40 ~ +90℃

Description:



TST092FHHH-01 is 9.2 inch 1280*720 resolution LCD display with LVDS interface, standard brightness is 690cd/m2. For this 8 inch TFT LCD module,   viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, outline size is 192.8 x 116.9x 6.4mm. AA area is 176.64 x 99.36mm.Contrast is 1000:1. this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. This 8 inch tft lcd is suitable used in Automotive grade application.



Specification
Part No. TST092FHHH-01
Outline Dimension(mm) 238.1x57.85×6.20
Active Area(mm) 229.248x45.849
Resolution(dots) 1920x384
Operating temperature(°C) '-30~85
Storage temperature(°C) '-40~90
Number of Pixel(pixels) 1920xRGBx384
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,IPS, 9.2 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface Digital
Module lifetime(Hours) 50,000-100,000

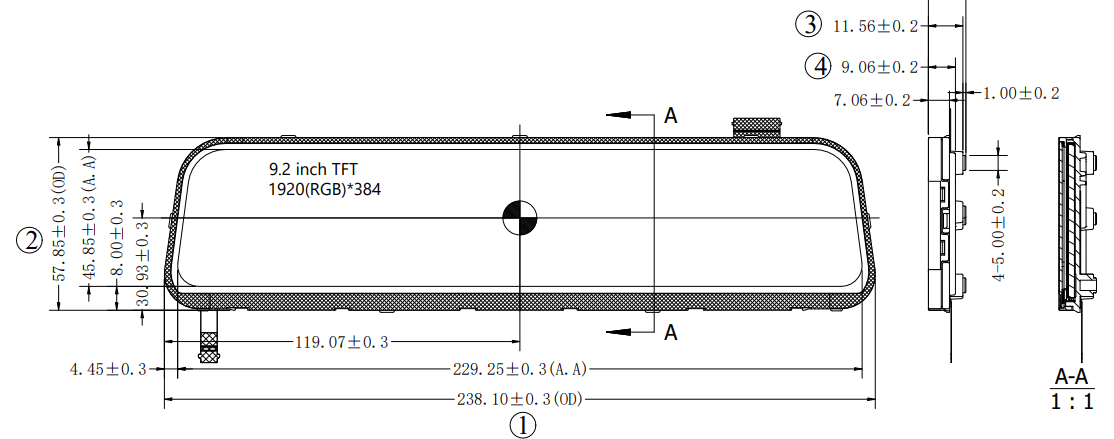

Drawing:

Interface Description:

Pin No.  Symbol Description
1 Bist

Normal operation/BIST pattern select. BIST="1": BIST mode. BIST="0

Normal operation.

2 DVDD Digital power (3.3V)
3 DVDD Digital power (3.3V)
4 GND System Ground.(0V)
5 RESET Global reset pin. Active low to enter reset state. Suggest to connectingwith an RC reset circuit for stability. Normally pull high. (R=10KQ,C=0.1uF)
6 STBYB Standby mode setting pin. active low. Timing controller, output buffer.DAC and power circuit all of when STBYB is low. Suggest to connectingwith an RC reset circuit for stability. Normally pull high. (R=10KQ,C=1uF)
7 GND System Ground.(0V)
8 SPI SDA/NC SPI interface/No conncetion
9 SPI SDA/NC SPI interface/No conncetion
10 SPI SDA/NC SPI interface/No conncetion
11 GND System Ground.(0V)
12 TB Up/down selection
13 RL Up/down selection
14 GND System Ground.(0V)
15 PIND3 LVDS data Positive
16 NIND3 LVDS data Negative
17 GND System Ground.(0V)
18 PIND2 LVDS data Positive
19 NIND2 LVDS data Negative
20 GND System Ground.(0V)
21 PINC LVDS clock Positive
22 NINC LVDS clock Negative
23 GND System Ground.(0V)
24 PIND1 LVDS data Positive
25 NIND1 LVDS data Negative
26 GND System Ground.(0V)
27 PINDO LVDS data Positive
28 NINDO LVDS data Negative
29 GND System Ground. (0V)
30 OTP/NC No conncetion

Applications:

For our 9.2 inch LCD display TST092FHHH-01, it's widely using in industrail machine even some automotive grade application..

Product Features:

1. 9.2 inch 1920*384 res. with 30pins LVDS interface

2. IPS lcd : full viewing angle

3.high brightness up to 3500nits

4.Super wide working temp. -30 to +85

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
