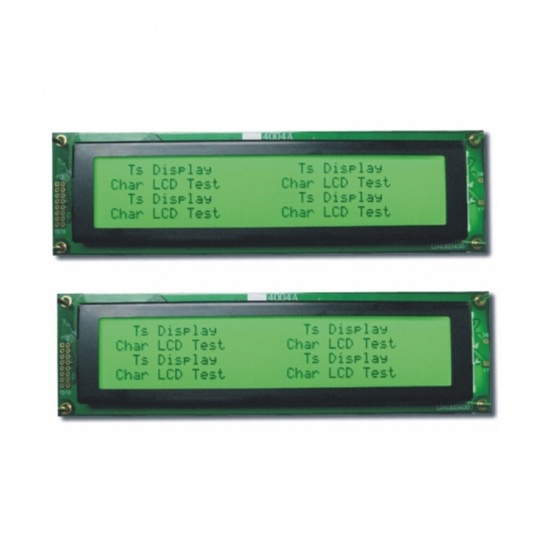

TSD 40x4 Dots Character lcd module 3.3V/5.0V



  • Model Name:TSM4004B
  • LCD Type: 40*4 dots lcd
  • Resolution: 40*4
  • Viewing angle: 6H
  • Driver IC: AIP31066
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

The TSM4004B is a 40*4 dots dot-matrix LCD module. It has a STN panel composed of 40segments and 4 commons. The LCM can be easily accessed by microcontroller via SPI interface. We have STN-YG,STN-blue, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

Item Spec.
Display Character 40character x 4lines
Display type DFSTN,Negative,Transmissive
Description character lcd module 40x4
Drive mode 1/16 DUTY, 1/5 BIAS
Driver IC S6A0069 or equivalence
Operating voltage 5.0v
Outline 190.0x54.0x14.9max
View Area 147.0x29.5mm
Active Area 140.47x23.18mm
Viewing direction 6H
Operatingtemperature -20°C-70°C
Storage temperature -30°C-80°C

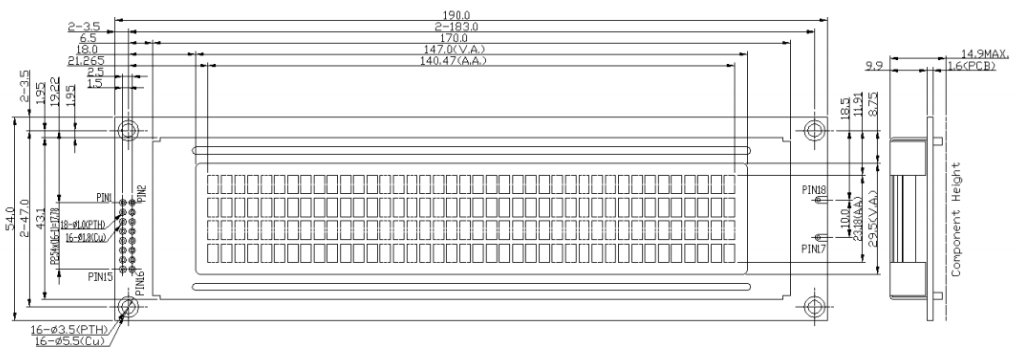

Drawing:

Interface Description:

PIN SYMBOL
1 VSS
2 VDD 5V
3 V0
4 RS
5 RW
6 E
7 DB0
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 LEDA
16 LEDK



Applications:

For our 4004 dots character lcd TSM4004B  , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1.4004 dots lcd with 16 pins

2. 5v working Voltage

3.AIP31066L IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
