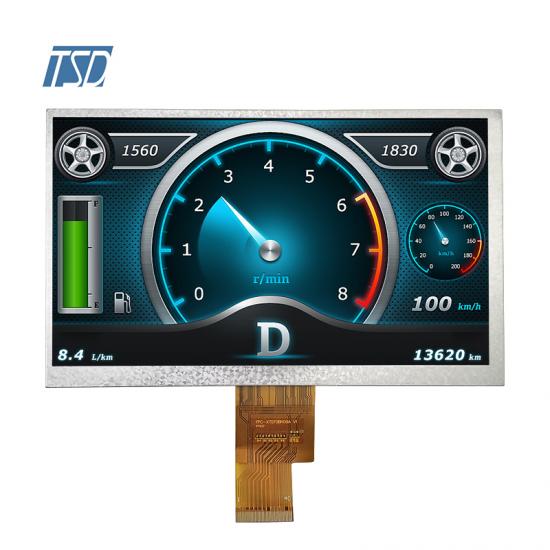

TSD 1024X600 resolution 7 inch TFT LCD Module with high brightness

  • Model Name: TST070WSIH-187
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 1024x600
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Driver IC: HX8282 +HX8296
  • Interface: RGB
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:



TST070WSIH-187 is 7 inch landscape tft lcd display with automotive grade. Resolution is 1024x600, it's IPS panel with free viewing angle, driver chip is Himax. The tft module is with 1000 cd/m2 high brightness, suitable for outdoor using. Operating temperate is -20 to 70°C, storage temperature is - 30 to 80°C. Backlight design is with white LEDs, 21pcs LEDs.

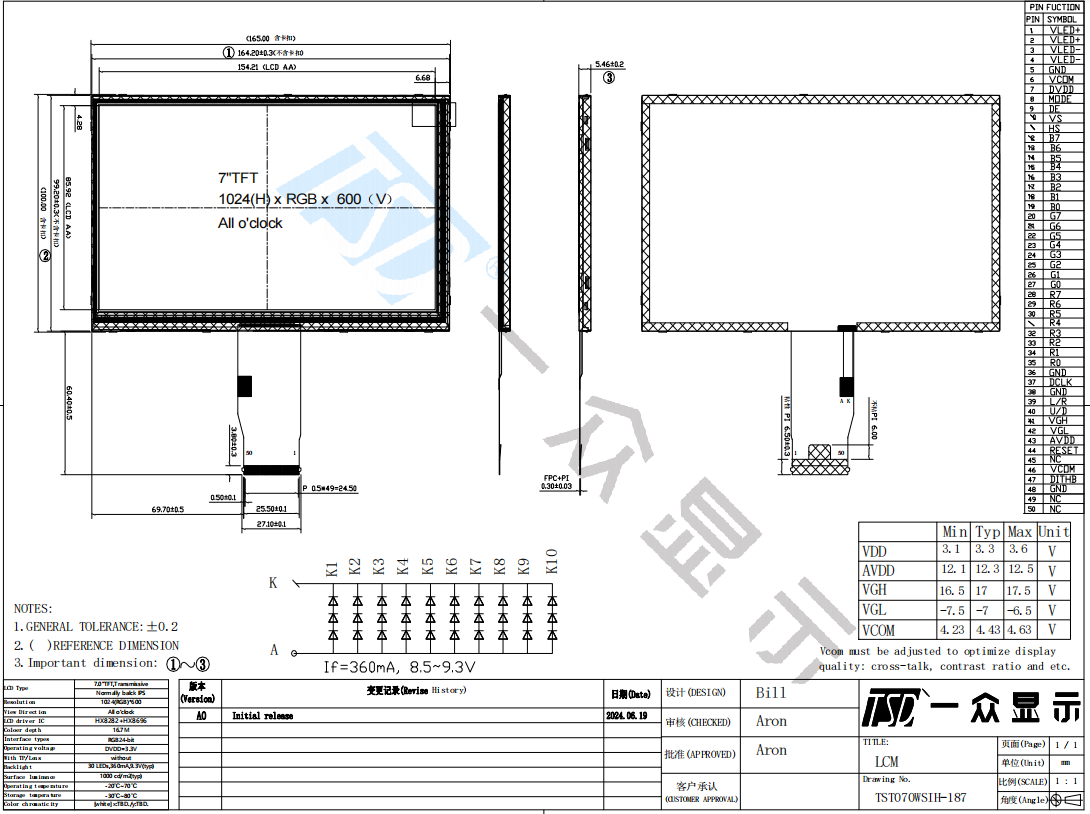

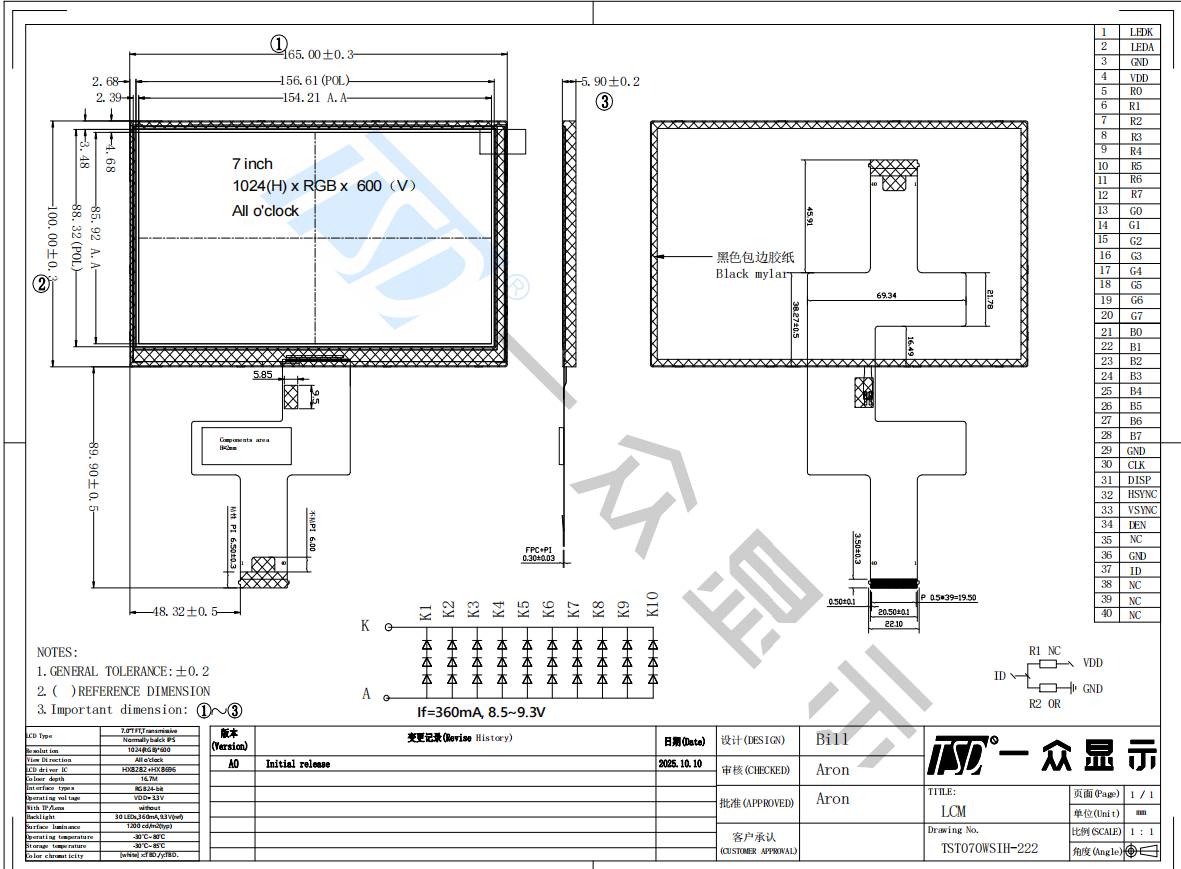

Drawing:




Specifications:



General Specification
Part No.  TST070WSIH-187
Outline Dimension(mm)  166.90x108.65x7.4
Active Area(mm) 152.448x 91.4688
Resolution(dots) 1024x600
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ 80°C
Number of Pixel(pixels) 1024(H)xRGBx600(V)
Touch panel  without
Brightness 1000 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 7 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 VLED+ Power for LED backlight (Anode)
2 VLED+ Power for LED backlight (Anode)
3 VLED- Power for LED backlight (Cathode)
4 VLED- Power for LED backlight (Cathode)
5 GND Ground

6

VCOM Common voltage
7 DVDD Power for digital circuit
8 MODE DE/SYNC mode select
9 DE Data input enable
10 VS Vertical Sync Input
11 HS Horizontal Sync Input
12~19 B7~B0 Blue data
20~27 G7~G0 Green data
28~35 R7~R0 Red data
36 GND Power ground
37 DCLK Sample clock
38 GND Ground
39 CLK_P LVDS clock+
40 GND Power ground
41 VGH Gate on voltage
42 VGL Gate off voltage
43 AVDD Power for Analogic voltage
44 RESET Global reset pin
45 NC No connection
46 VCOM Common voltage
47 DITHB Dithering function
48 GND Ground
49 NC No connection
50 NC No connection




Features:



• 7", Landscape, normally black, ADS type, transmissive, amorphous silicon TFT LCD module

• Display Resolution: 1280 x RGB x 768.

• Viewing angle (U/D/L/R): 80/80/80/80

• “Himax” HX8282 +HX8296

• Display up to 16.7M colors.

• RGB.

• Backlight with 21 LEDs.

• HC front polarizer.

• “RoHS” Compliance.
