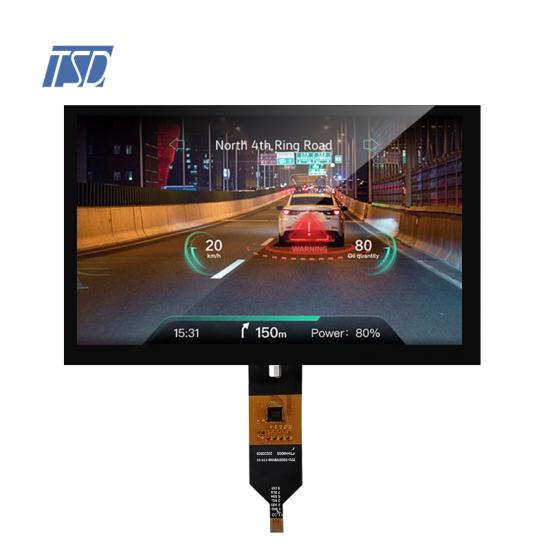

TSD 1280X768 resolution 7 inch TFT LCD Module 1000 nits with RGB interface

  • Model Name: TST070HDBV-L01
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 1280x768
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Driver IIC: HX8298-A x 3 +HX8695E x 1
  • Interface: RGB
  • Touch Screen: without
  • Operating Temperature: -40 ~ +85℃
  • Storage Temperature: -40 ~ +90℃





Description:



TST070HDBV-L01 is 7 inch landscape tft lcd display with automotive grade. Resolution is 1280x768, it's IPS panel with free viewing angle, driver IC is Himax, part number is HX8298-A and HX8695E. The tft module is with 1000 cd/m2 high brightness, suitable for outdoor using. Operating temperate is -40 to 85°C, storage temperature is - 40 to 90°C. Backlight design is with white LEDs, 21pcs LEDs.

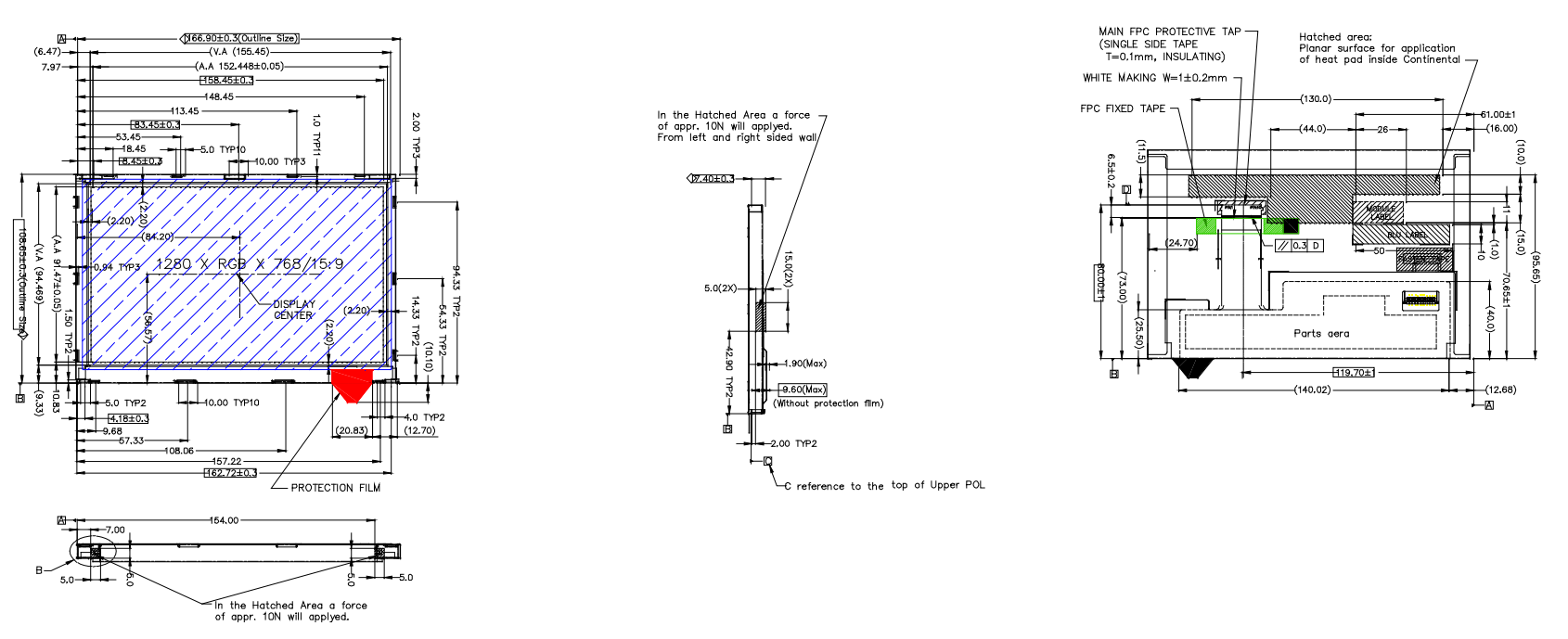

Drawing:



7inch tft lcd module


Specifications:



General Specification
Part No.  TST070HDBV-L01
Outline Dimension(mm)  166.90x108.65x7.4
Active Area(mm) 152.448x 91.4688
Resolution(dots) 1280x768
Operating temperature(°C) -40 ~ +85°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 1280(H)xRGBx768(V)
Touch panel  without
Brightness 1000 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 7 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 N/C Reserved for supplier test, NC for customer
2 CS SPI interface for supplier online test and programming use (Pull high for customer)
3 SCL SPI interface for supplier online test and programming use (NC for customer )
4 SDA SPI interface for supplier online test and programming use (NC for customer )
5 VCC Power supply (3.3V)

6

VCC Power supply (3.3V)
7 GND Power ground
8 GND Power ground
9 D0_N LVDS data 0-
10 D0_P LVDS data 0+
11 GND Power ground
12 D1_N LVDS data 1-
13 D1_P LVDS data 1+
14 GND Power ground
15 D2_N LVDS data 2-
16 D2_P LVDS data 2+
17 GND Power ground
18 CLK_N LVDS clock-
19 CLK_P LVDS clock+
20 GND Power ground
21 D3_N LVDS data 3-
22 D3_P LVDS data 3+
23 GND Power ground
24 VSFB VSYNC waveform feedback
25 DISP_ON Display on/off (black display)
26 HVR Horizontally and Vertically Inverted
27 NTC2 Temperature Sensor Pin2
28 NTC1 Temperature Sensor Pin1
29 C3 Backlight Cathode 3
30 C3
Backlight Cathode 3
31 A3 Backlight Anode 3
32 A3 Backlight Anode 3
33 C2
Backlight Cathode 2
34 C2
Backlight Cathode 2
35 A2 Backlight Anode 2
36 A2 Backlight Anode 2
37 C1 Backlight Cathode 1
38 C1 Backlight Cathode 1
39 A1 Backlight Anode 1
40 A1 Backlight Anode 1




Features:



• 7", Landscape, normally black, ADS type, transmissive, amorphous silicon TFT LCD module

with 3 source driver IC (COG) + 1 gate driver IC(COG)

• Display Resolution: 1280 x RGB x 768.

• Viewing angle (U/D/L/R): 80/80/80/80

• “Himax” HX8298-A x 3 +HX8695E x 1

• Display up to 16.7M colors.

• 1-port LVDS.

• Backlight with 21 LEDs.

• HC front polarizer.

• “RoHS” Compliance.
