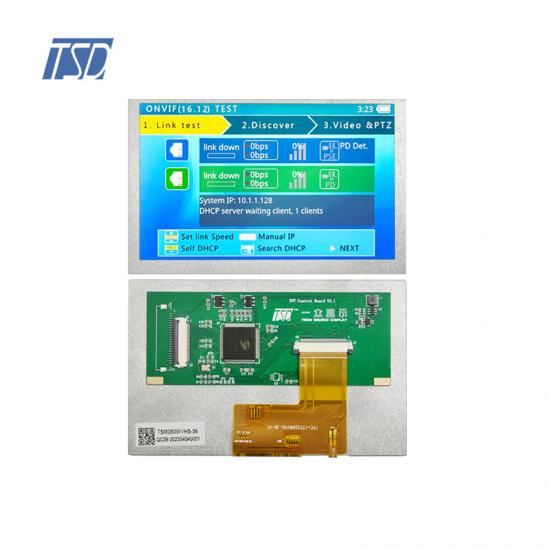

TSD WVGA 5 inch TFT LCD display with SSD1963 controller board

  • Model Name: TSM050WVHS-36
  • LCD Type: 5 inch IPS TFT display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 500 cd/m2
  • Driver IC: SSD1963
  • Interface: MCU
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST050WVHS-36 is a 5 inch color LCD display 800x480 resolution with SSD1963 driver IC, this display is coming out with MCU interface, support 8 bits and 16 bits parallel port. It's without touch screen, available to add our standard resistive touch panel or capacitive touch panel on it. Standard brightness is 500 cd/m2, TSD also have the other model with 1000 nits high brightness, which have a very good performance under strong sunlight and good for outdoor applications.

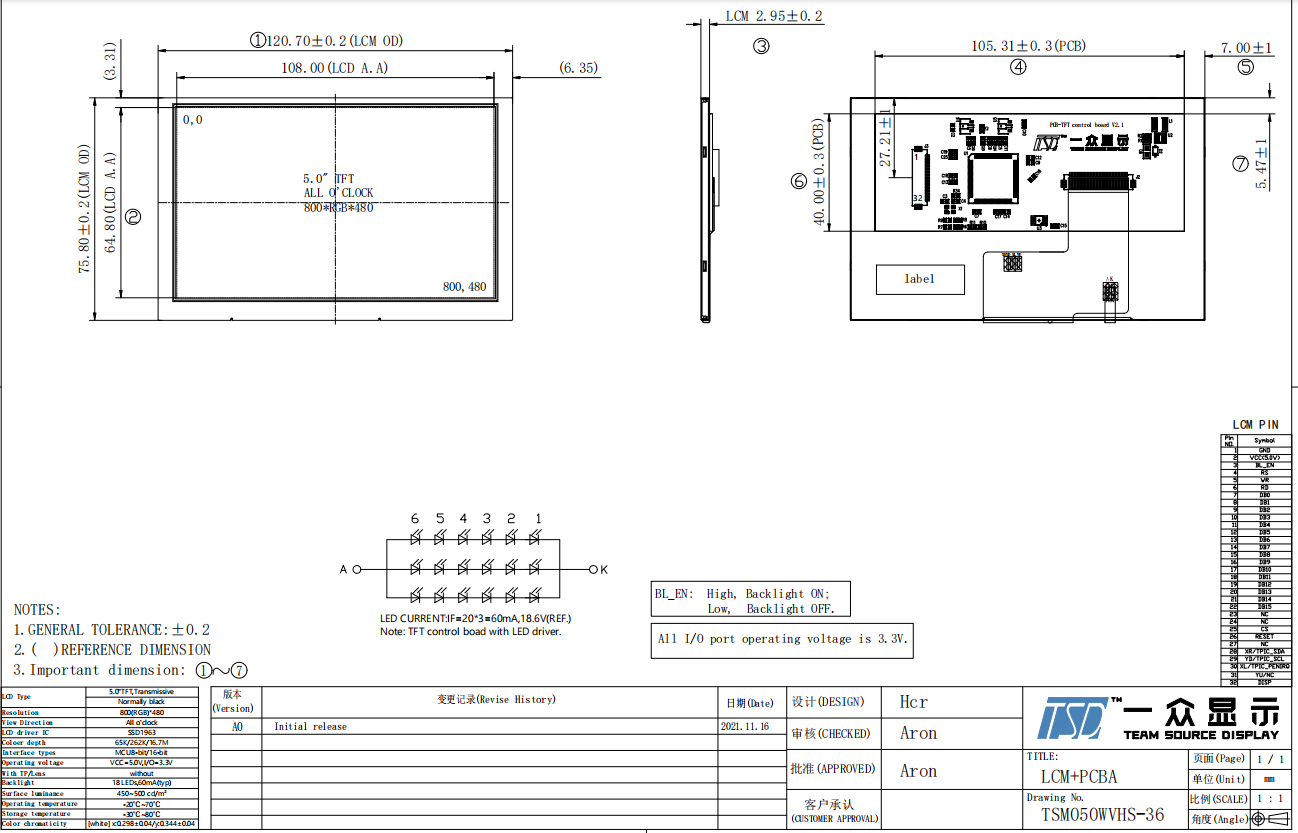

Drawing:




Specifications:



General Specification
Part No.  TSM050WVHS-36
Outline Dimension(mm)

120.7(W)x75.8(H)x2.95(D)

Active Area(mm) 108(W) x 64.8(H)
Resolution(dots) 800x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480V)
Touch panel  without
Driver IC SSD1963
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 5 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 Ground System Ground.(OV)
2 VCC (5V) Power supply +5.5V
3 BL_EN High, Backlight ON; Low, Backlight OFF
4 RS Data/Command Selection pin
5 WR Write signal
6 RD Read signal
7~22 DB0~DB15 MCU16-bit Data Bus
23 NC Not connection
24 NC Not connection
25 CS Chip select signal
26 RESET Reset input signal
27 NC Not connection
28 NC/XR Not connection/The touch panel × right
29 NC/YD Not connection/The touch panel Y down
30 NC/XL Not connection/The touch panel X left
31 NC/YU Not connection/The touch panel Y up
32 DISP

Standby mode control.(Normally pull high)

DISP="L", enter standby mode for power saving. Timingcontroller and source driver will turn off, all outputs are Hi-Z.DISP=H", normal operation.






Applications:



TSD is offering all kinds of TFT LCD with SSD1963 control board that are ideal for different applications including: Smart home & white goods, Security & Intercom, Medical PDA & EGC, Dashboard, Navigation system, Industrial instrustment, EV Charger, Handheld terminals, Smart wearable device, etc.
