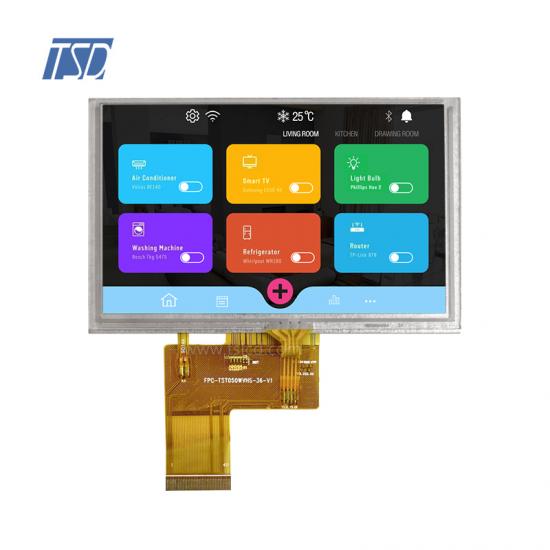

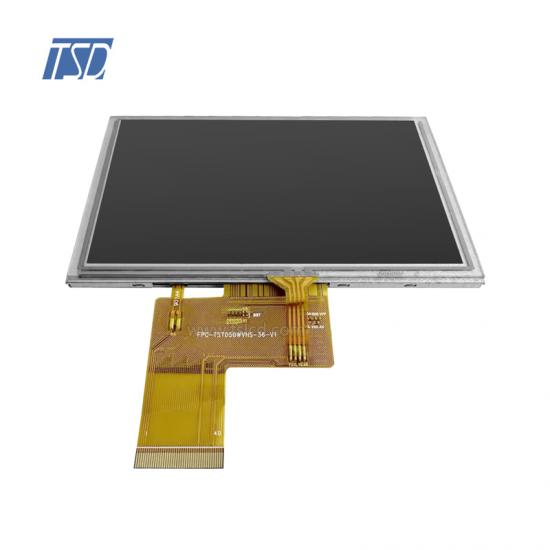

TSD 5 inch TFT LCD 800×480 resolution MCU interface with RTP

  • Model Name: TSM050WVHS-36P
  • LCD Type: 5 inch IPS TFT display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 500 cd/m2
  • Driver IC: SSD1963
  • Interface: MCU
  • Touch Screen: with Resistive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:

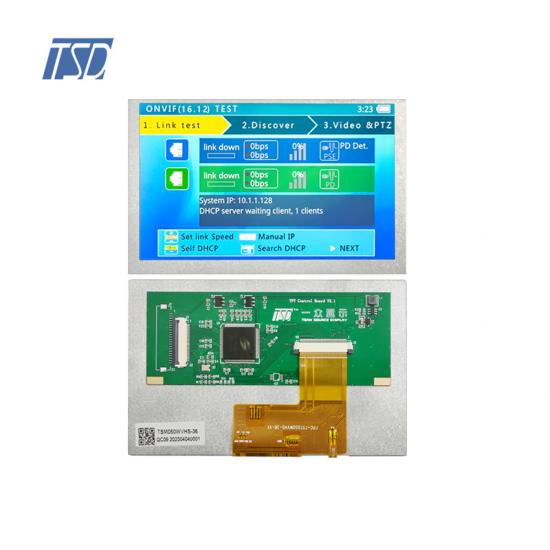

TST050WVHS-36P is a 5 inch 800x480 resolution TFT LCD SSD1963 display with 8bits/16bits MCU interface. It's using IPS glass with all o'clock viewing angle. Outline dimension is 120.7x75.8mm, LCD active area is 108x64.8mm. Thickness including the LCM+touch panel+SSD1963 controller board is 7.35mm. This 5 inch LCD is coming out with 32 pins connector, pitch 0.5mm, bottom contact.


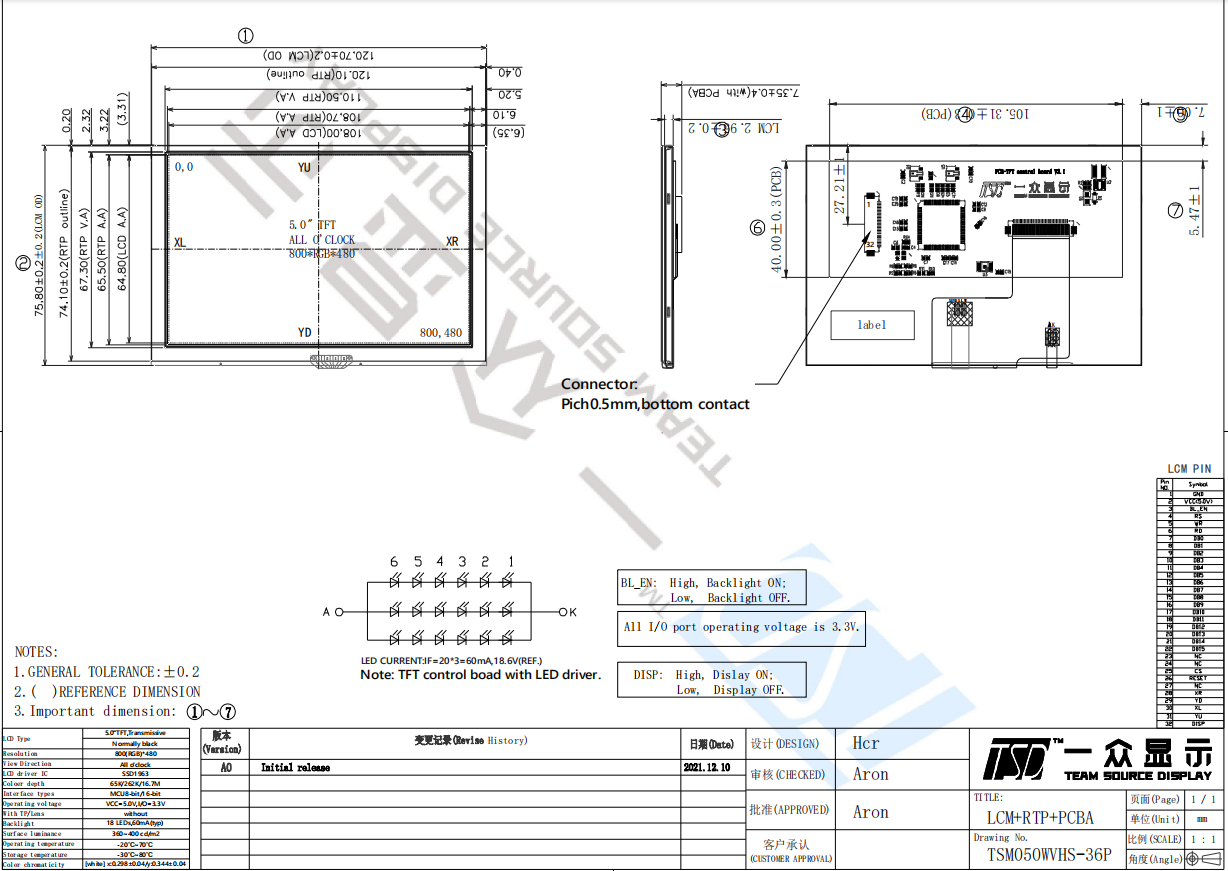

Drawing:




Specifications:



General Specification
Part No.  TSM050WVHS-36P
Outline Dimension(mm)

120.7(W)x75.8(H)x7.55(D)

Active Area(mm) 108(W) x 64.8(H)
Resolution(dots) 800x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480V)
Touch panel  with Resistive touch panel
Driver IC SSD1963
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 5 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 Ground System Ground.(OV)
2 VCC (5V) Power supply +5.5V
3 BL_EN High, Backlight ON; Low, Backlight OFF
4 RS Data/Command Selection pin
5 WR Write signal
6 RD Read signal
7~22 DB0~DB15 MCU16-bit Data Bus
23 NC Not connection
24 NC Not connection
25 CS Chip select signal
26 RESET Reset input signal
27 NC Not connection
28 XR The touch panel × right
29 YD The touch panel Y down
30 XL The touch panel X left
31 YU The touch panel Y up
32 DISP

Standby mode control.(Normally pull high)

DISP="L", enter standby mode for power saving. Timingcontroller and source driver will turn off, all outputs are Hi-Z.DISP=H", normal operation.






Features:

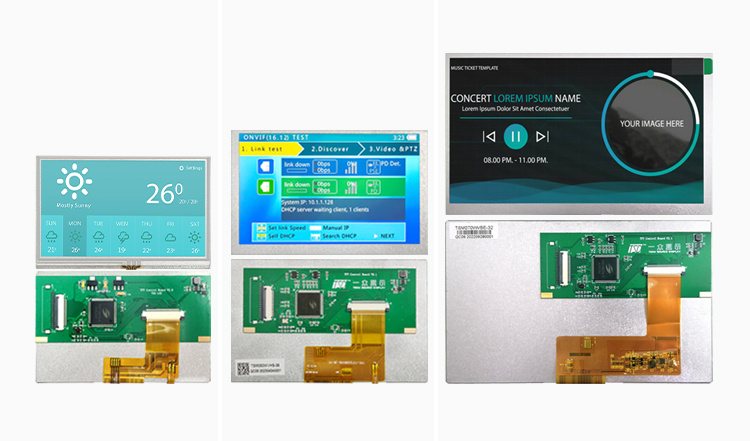

TSD is offering wide ranges of TFT LCD display with SSD1963 control board, we have the standard sizes of 4.3 inch, 5 inch and 7 inch, without touch, with resistive touch screen, with capacitve touch screen, are all available. Customized deisgn are welcome.
