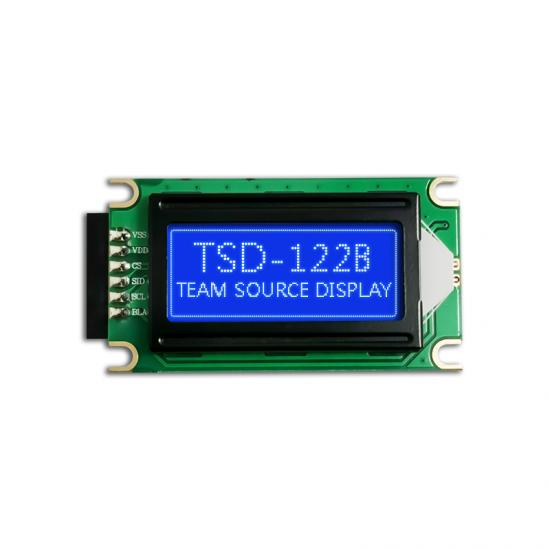

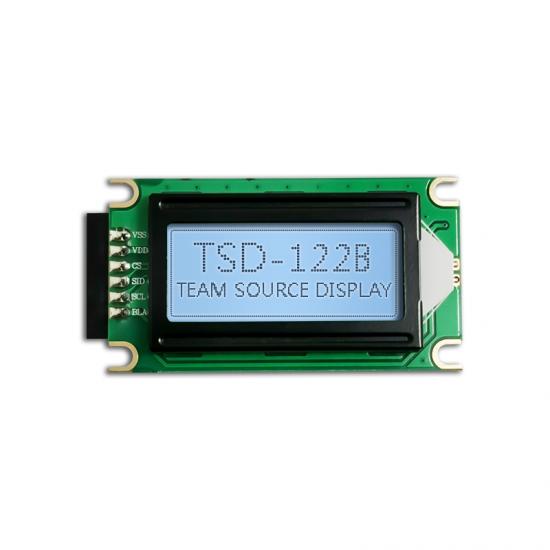

TSD 1202 COB LCD with backlight 12*2 dots character matrix lcd



  • Model Name:TSM1202ST-YG
  • LCD Type: 12*2 dots lcd
  • Resolution: 12*2
  • Viewing angle: 6H
  • Driver IC: ST7066U-01
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

  Description:

The TSM1202ST-YG is a 12*2 dots dot-matrix LCD module. It has a STN panel composed of 12 segments and 2 commons. The LCM can be easily accessed by microcontroller via SPI/8080 MPU interface. We have STN-YG,STN-blue, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

Display Character

12 character x 2 lines

Display background color

STN White/ Back character

Polarize mode

Positive  negative, Transflective

Outline Size(mm)

55.7x32x14.8

Active Area(mm)

45*15.5

Viewing Angle

6 O'clock

Diver IC

ST7066U-01

Character font

5x8 dots + cursor

Dots size(mm)

0.56x0.61

Character Size(mm)

2.96x5.16

Character pitch(mm)

3.5x5.6

Power

5V

Character Generator RAM

TBD64X8 bits

Display Data RAM

40X8 bits

Character Generator ROM

8320 bits

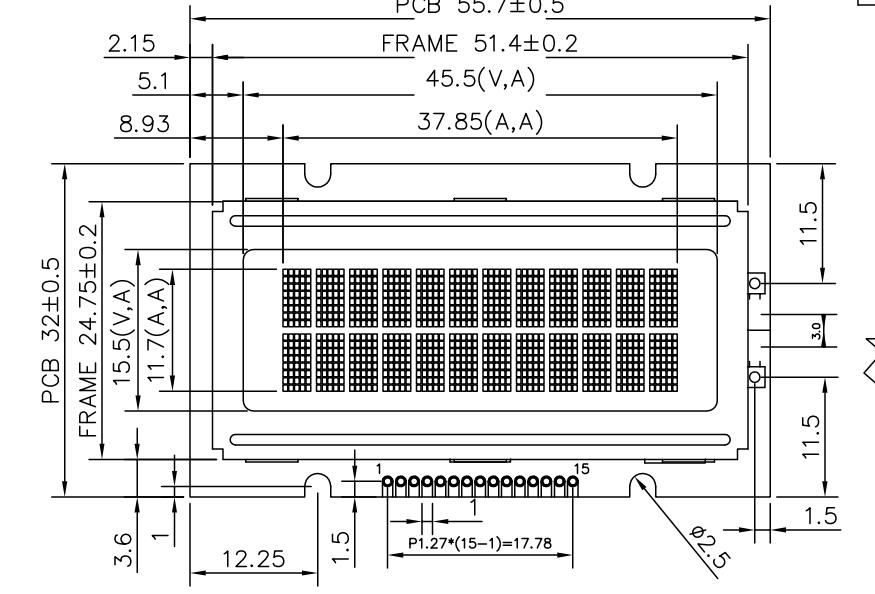

Drawing:

Interface Description:

PIN SYMBOL
1 VSS
2 VDD
3 V0
4 RS
5 RW
6 E
7 DB0
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 A



Applications:

For our 12*2 dots character lcd  TSM1202ST-YG, it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1.12*2 dots lcd with 15pins

2. 5V working Voltage.

3.ST7066U-01 IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.
