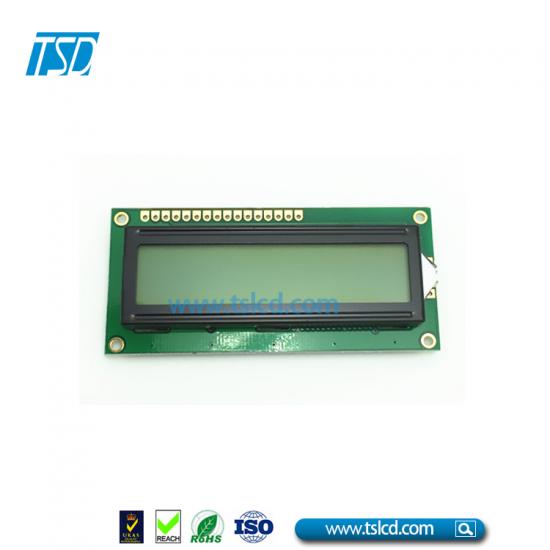

TSD 16x2 character STN LCD display with bigger size 122*44*12.8MM



  • Model Name: TSM1602B-L
  • LCD Type: 16*2 dots lcd
  • Resolution: 16*2
  • Viewing angle: 6H
  • Driver IC: AIP31066
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃







 Description:

The TSM1602B-L is a 16*2 dots dot-matrix LCD module. It has a STN panel composed of 16segments and 2 commons. The LCM can be easily accessed by microcontroller via 6800 series interface. We have STN-YG,STN-blue, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

Display Character

16 character x 2 lines

Display background color

STN, Yellow/Green backlight

Polarize mode

Positive, Transflective

Outline Size(mm)

122x44×12.8

Active Area(mm)

94.8*19.9

Viewing Angle

6 O'clock

Diver IC

AIP31066

Character font

5x8 dots + cursor

Viewing Area(mm)

99*24

Character Size(mm)

2.9x5.15

Character pitch(mm)

0.352x585

Power

5V

Character Generator RAM

TBD64X8 bits

Display Data RAM

40X8 bits

Character Generator ROM

8320 bits

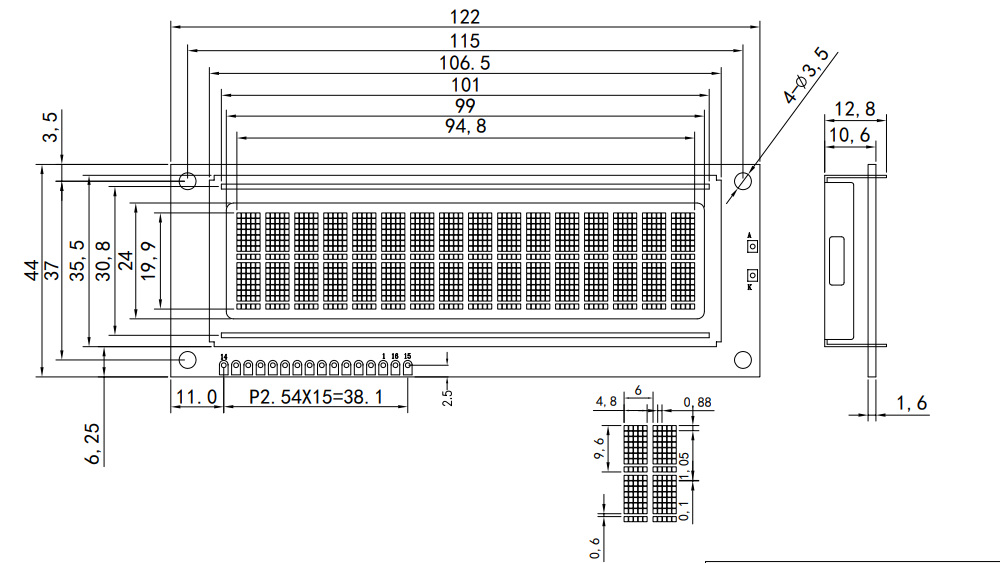

Drawing:



Interface Description:

PIN SYMBOL
1 VSS
2 VDD
3 V0
4 RS
5 R/W
6 E
7 DB0
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 A
16 K



Applications:

For our 1602 dots character lcd TSM1602B-L , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1.1602 dots lcd 122*44*12.8MM with 16pins

2. 5v working Voltage

3. AIP31066 IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.
