Description:
Team Source Display model TST080SVBH-15B is the standard 8'' color TFT LCD, normally white with transmissive type TN panel,
800x600 resolution, HX8264D02+HX8696A01driver IC, RGB-24bits 40pin interface, 16.7M color depth, Anti-glare surface treatment.
with RTP& CTP available,380nits brightness.

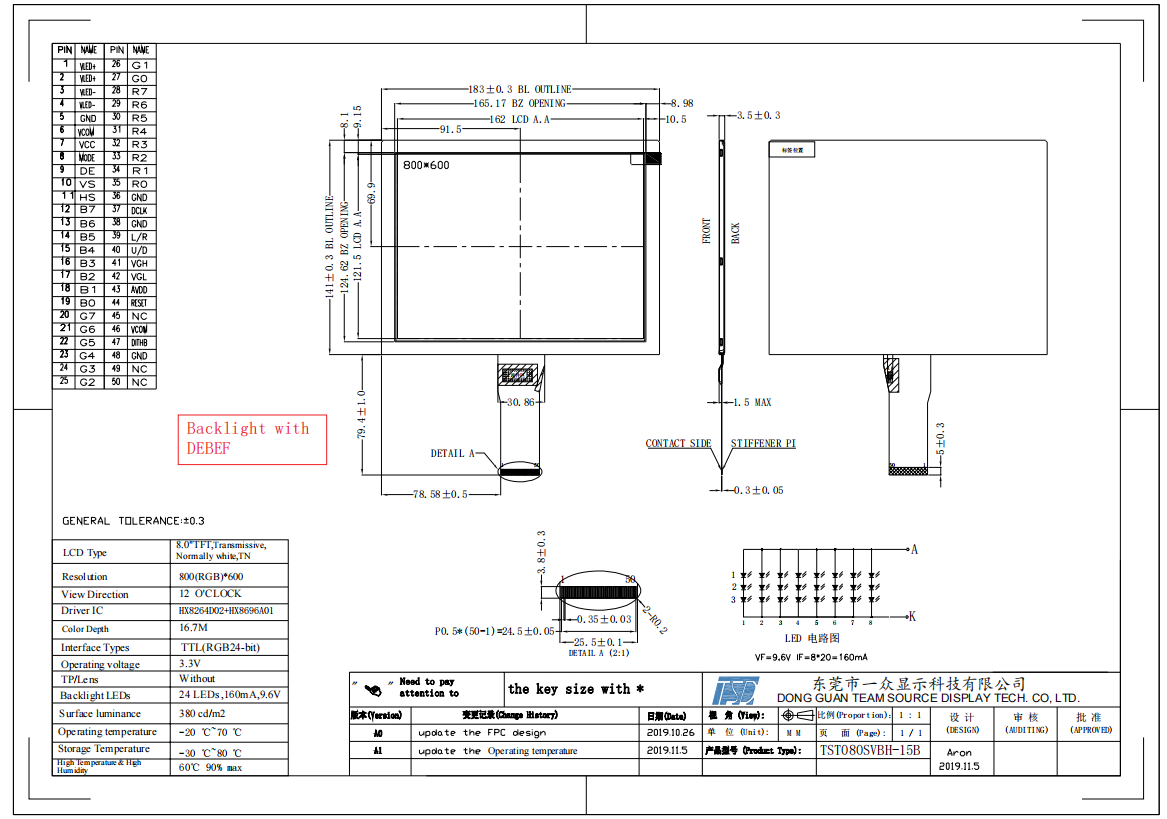

Drawing:
Specifications:
| General Specification | ||
| Display mode |
8'' TFT, Transmissive, Normal white,TN, |
|
| Part No. | TST080SVBH-15B | |
| Outline Dimension(mm) |
183(W)x141(H)x3.5(D) |
|
| Active Area(mm) | 162(W) x 121.5(H) | |
| Resolution(dots) | 800x (RGB) × 600 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Operating Voltage |
3.3V | |
| Touch panel | without | |
| Driver IC | HX8264D02+HX8696A01 | |
| Pixel arrangement | RGB-stripe | |
| View direction | 12H | |
| Interface | RGB 24bits |
|
| Brightness | 380nits | |
| Backlight | 24LEDs, 160mA, 9.6V | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Module lifetime(Hours) | 30,000-50000 | |
|
LCM interface definition FPC Connector is used for the module electronics interface. The recommended model is FHI2A-50S-0.5SH manufactured by Hirose.
|
||
| Pin No. | Symbol | Description |
| 1-2 | VLED+ | Power for LED Backlight ( Anode) |
| 3-4 | VLED- | Power for LED Backlight ( Cathode ) |
| 5 | GND | Power ground |
| 6 | VCOM | Common voltage |
| 7 | VCC | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Input Enable |
| 10 | VS | Vertical Sync Input |
| 11 | HS | Horizontal Sync Input |
| 12-19 | B7-B0 |
Blue data,B7 is MSB,B0 is LSB |
| 20-27 | G7-G0 | Green data,B7 is MSB,B0 is LSB |
| 28-35 | R7-R0 | Red data,B7 is MSB,B0 is LSB. |
| 36 | GND |
Power ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power ground |
| 39 | L/R | Left/right selection |
| 40 | U/D | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD |
Power for Analog Circuit |
| 44 | RESET |
Global reset pin. |
| 45 | NC |
No connection |
| 46 | VCOM |
Common Voltage |
| 47 | DITHB |
Dithering function enable control.normally pull high. |
| 48 | GND |
Power ground |
| 49-50 | NC | No connection |
Applications:
For this 8 inch TFT LCD display TST080SVBH-15B, 800x600 resolution, suitable for Industrials Equipment,
Medical devices, Household appliances, consumer products.
Product Features:
1. 800x600 8'' LCD with RGB 24bit interface.
2. Available with RTP&CTP.
