Description:
TSD is a professional LCD manufacturer in China, specializing in TFT LCD, Mono LCD, Touch Panel, OLED Display and E-ink for many years. TSD has developed thousands of OEM&ODM LCD Modules for various fields, including Smart Home Appliances, Industrial, Automotive, Medical, etc.

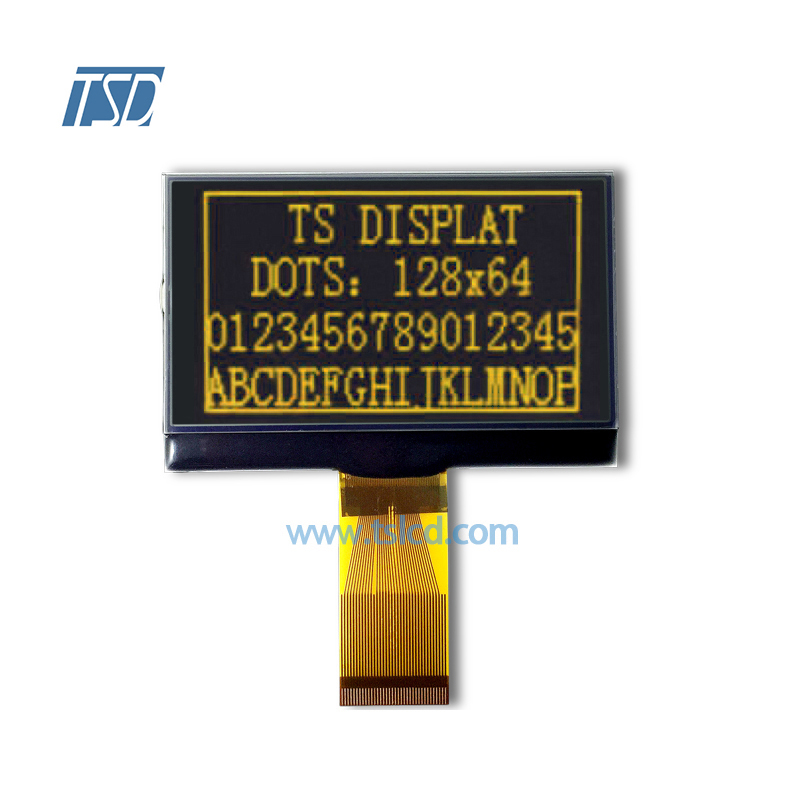

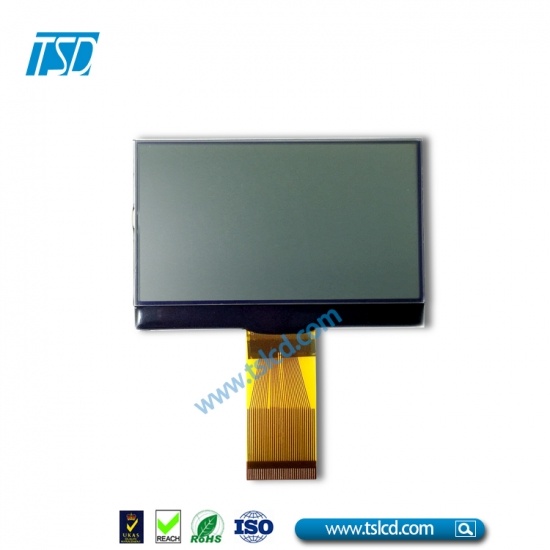

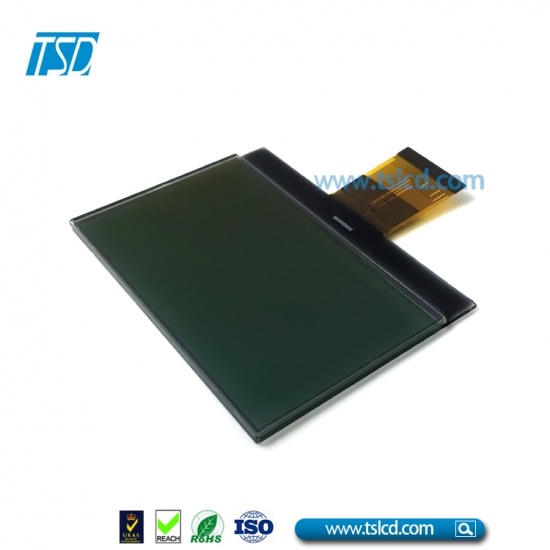

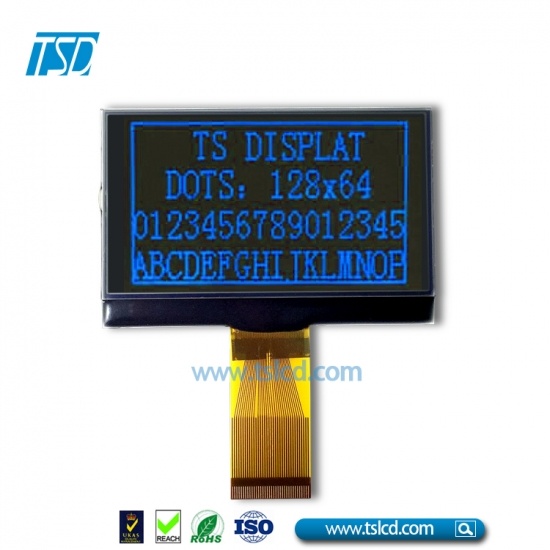

TSD 128x64 cog lcd display with custom support:
Custom Process:
Confirm specific requirements → Pay tooling charge → Provide drawing → Confirm drawing → Make tooling & samples → Samples finished → Delivery via freight or sea collect
Lead time for custom LCD:
drawing making:2-5days
tooling and samples: around 3wks
OEM and customization are welcome!

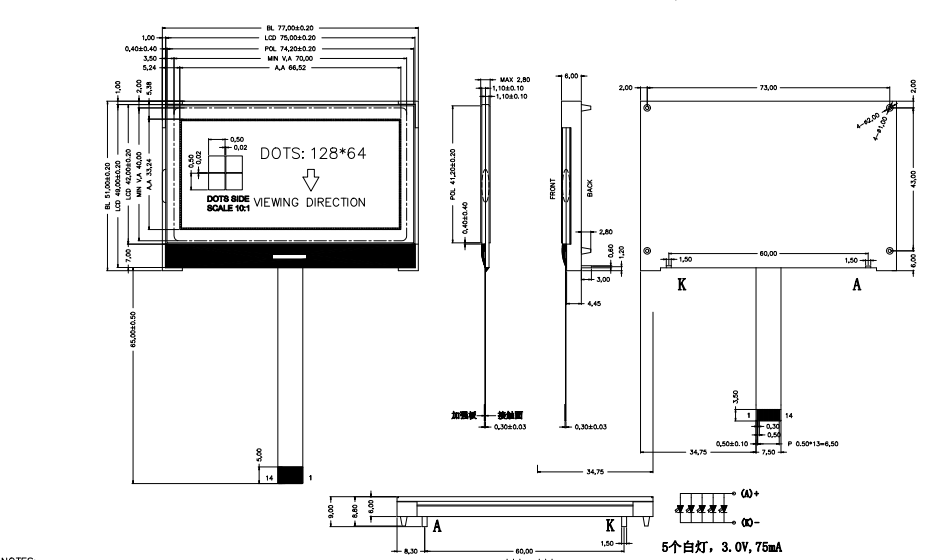

Drawing:
Specifications:
| General Specification | ||
| Part No. | TSG12864-074B | |
| Outline Dimension(mm) |
77(W)x51(H)x2.80(D) |
|
| Active Area(mm) | 66.52 (W) x33.24(H) | |
| Resolution(dots) | 128x64 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 16x3 | |
| Touch panel | Without | |
| Driver IC | ST7567 | |
| Display mode | Positive, transflective | |
| Surface treatment | No | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | PIN | |
| Module lifetime(Hours) | 50,000-100,000 | |
Applications:
The energy meter, digital meter, oiling machine, crane, EV-car, and air conditioner are customized for your device.
Product Features:
-
- LCD Type: FSTN
- Polarizer type: Reflective
- Connector Type: FPC
- Display Mode: Positive
- The range of operating Temperature: -20~70°C
- Custom Service Support: LCD Type, Interface, Size, Display Mode
- Another model: 128*32,128*64,160*128,240*320,240*128,256*128, etc.
