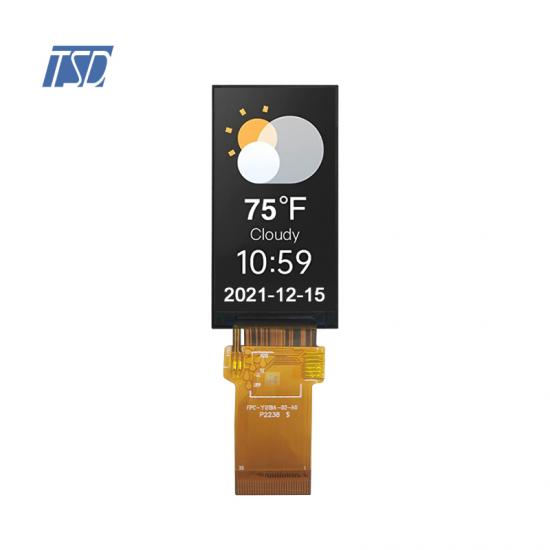

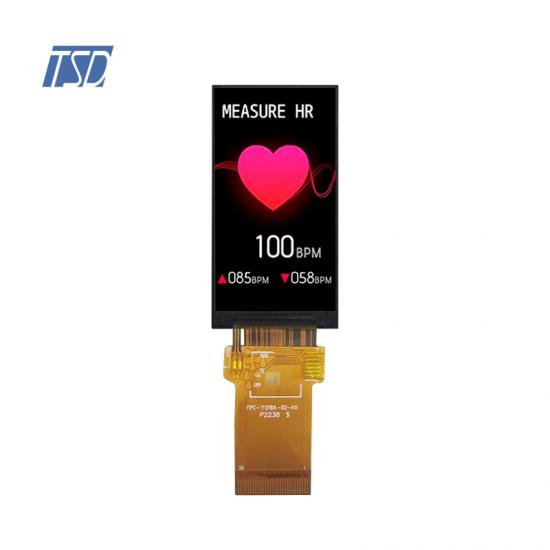

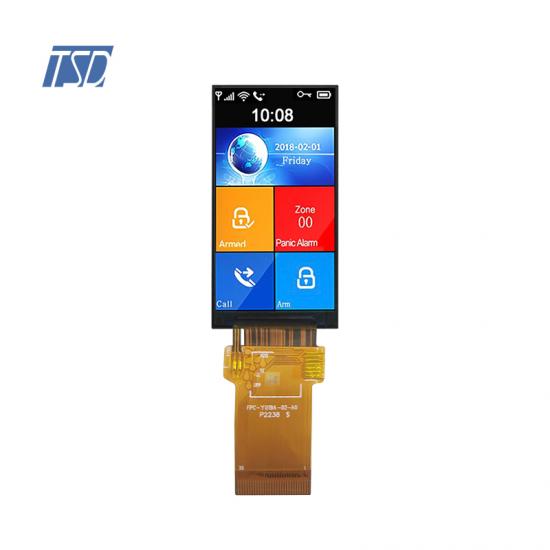

TSD 1.9 inch Transmissive, Normally black 170(RGB)*320 resolution

LCD Type: 1.9"TFT,Transmissive, Normally black

Resolution: 170(RGB)*320

View Direction: All o'clock

LCD driver IC: ST7789V2

Coloer depth: 65K/262K

Interface types: MCU8-bit

Operating voltage: 2.8V

With TP/Lens: without

Backlight: 4 LEDs,60mA(typ)

Surface luminance: 350 cd/m²(typ)

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:



TST019QVBS-02 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 22.7*42.7 mm diagonally measured active area with 170(RGB)*320 resolutions.

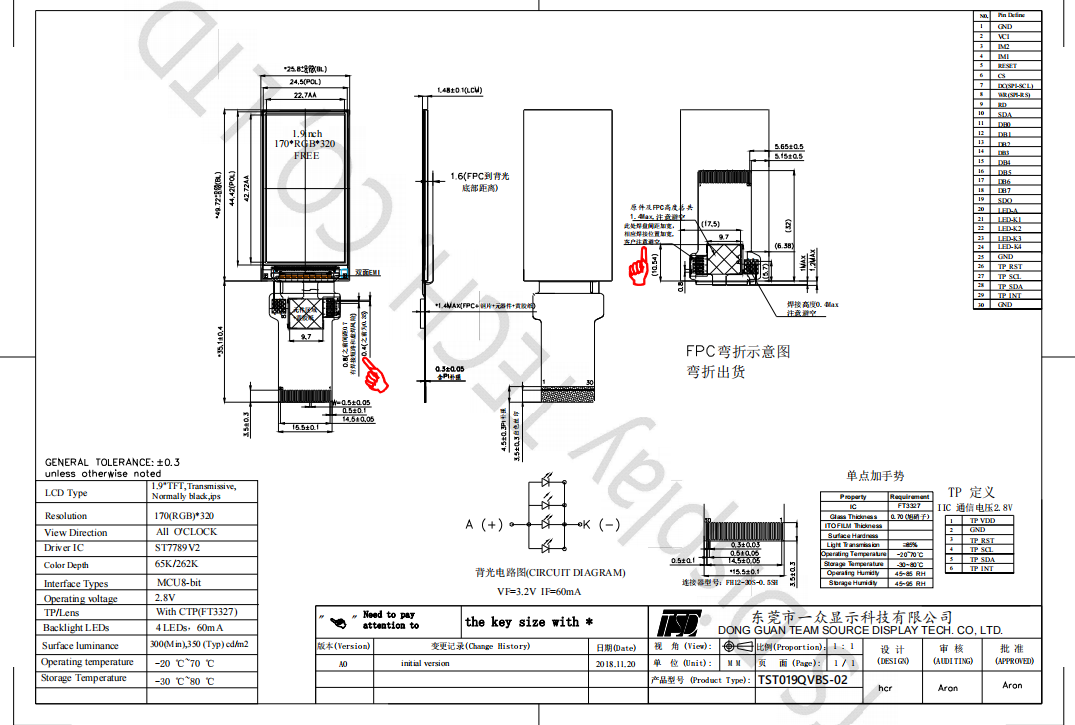

Drawing:



Specifications:





General Specification

Part No.

TST019QVBS-02

Outline Dimension(mm)

25.8x49.72x1.43

Active Area(mm)

22.7x42.72

Resolution(dots)

170xRGBx320

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

330cd/m2

Touch panel

Yes

Pixel arrangement

RGB-stripe

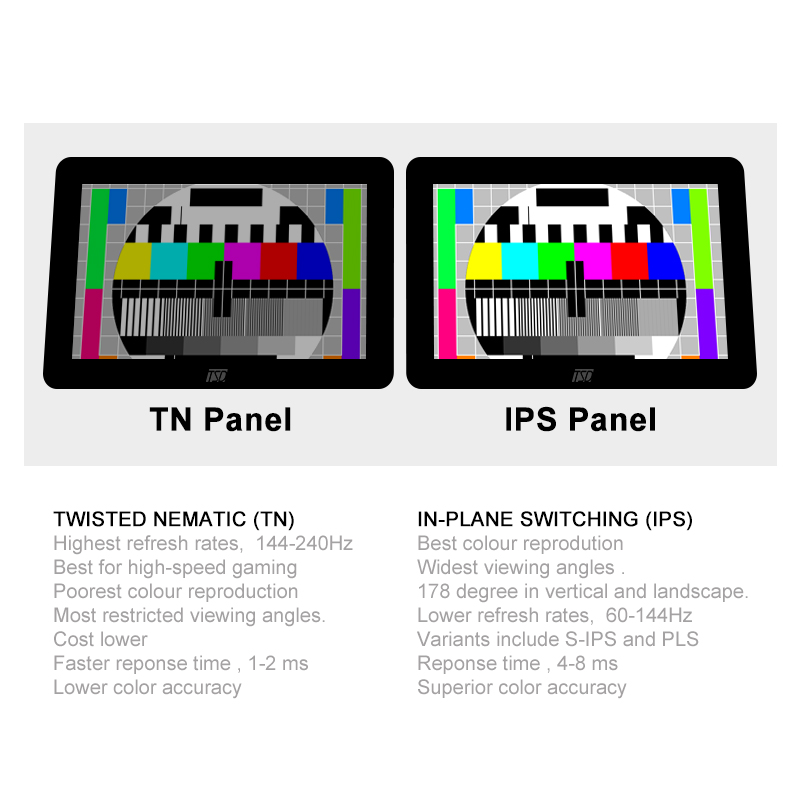

Display mode

Normal black, IPS

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

MCU 8bits/SPI

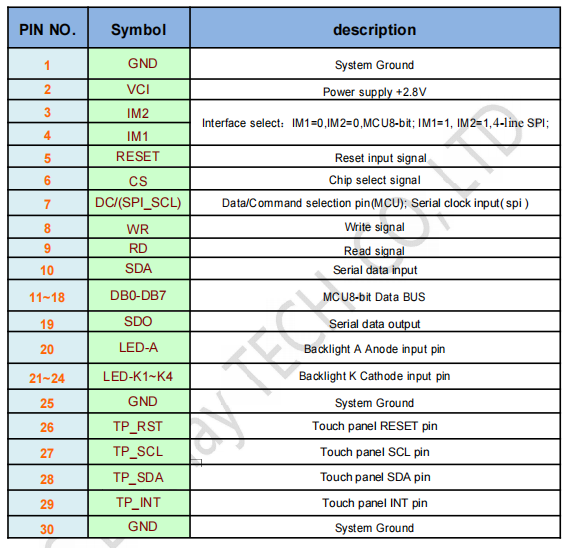

PIN NO.

Symbol

Description

1

GND

System Ground

2

VCI

Power supply +2.8V

3

IM2

Interface select: IM1=0,IM2=0,MCU8-bit; IM1=1,IM2=1,4-line SPI;

4

IM1

Interface select: IM1=0,IM2=0,MCU8-bit; IM1=1,IM2=1,4-line SPI;

5

RESET

Reset input signal

6

CS

Chip select signal

7

DC/(SPI_SCL)

Data/Command selection pin(MCU); Serial clock input( spi)

8

WR

Write signal

9

RD

Read signal

10

SDA

Serial data input

11-18

DB0-DB7

MCU8-bit Data BUS

19

SDO

Serial data output

20

LED-A

Backlight A Anode input pin

21-24

LED-K1-K4

Backlight K Cathode input pin

25

GND

System Ground

26

TP_RST

Touch panel RESET pin

27

TP_SCL

Touch panel SCL pin

28

TP_SDA

Touch panel SDA pin

29

TP_INT

Touch panel INT pin

30

GND

System Ground



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
