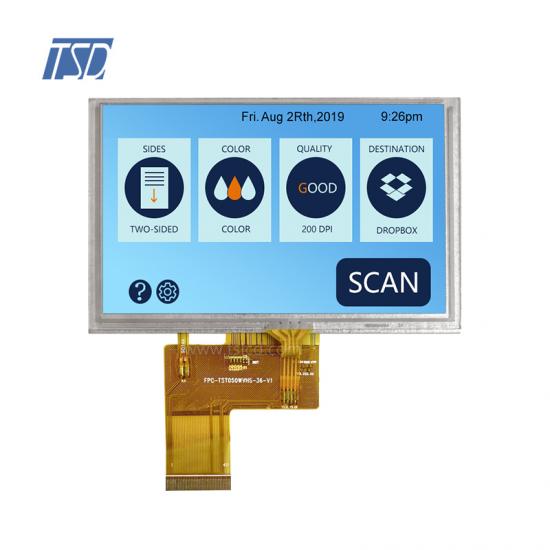

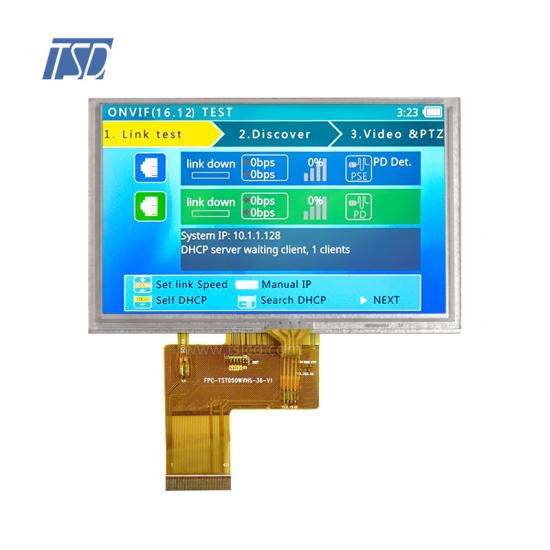

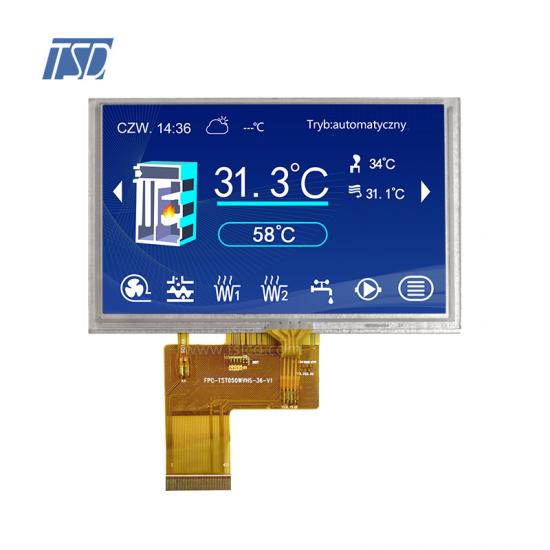

TSD 5 inch TFT LCD Module IPS Screen with Resistive touch panel

Inquiry now

TSD 5 inch TFT LCD Module IPS Screen with Resistive touch panel

Specification
Part No.	TST050WVHS-36P
Outline Dimension(mm)	120.70(H) x 75.80(V) x 2.95(D)
Active Area(mm)	108.00 (H) x 64.80 (V)
Resolution(dots)	800x (RGB) ×480
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Number of Pixel(pixels)	800RGB(H)xRGBx480(V)
Touch panel	RTP
Driver IC	ST7262A
Pixel arrangement	RGB-stripe
Display mode	Normal black,IPS, 5 inch TFT
Surface treatment	Antiglare
View direction	ALL
Weight(g)	TBD
Power Consumption(w)	Panel	TBD(Typ.)
	B/L system	1.728(Typ.)
Interface	RGB Interface
Module lifetime(Hours)	50,000-100,000
