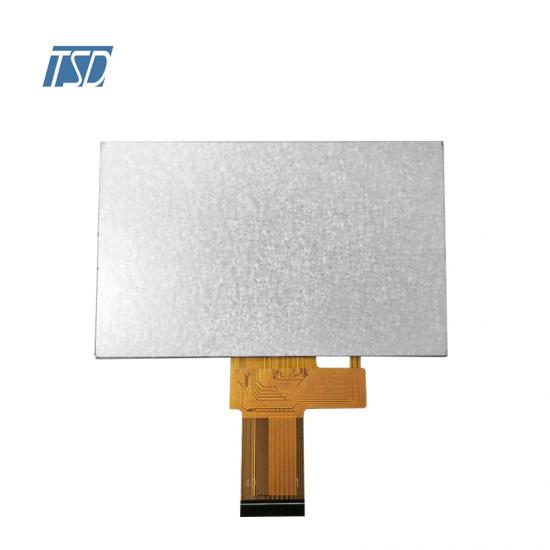

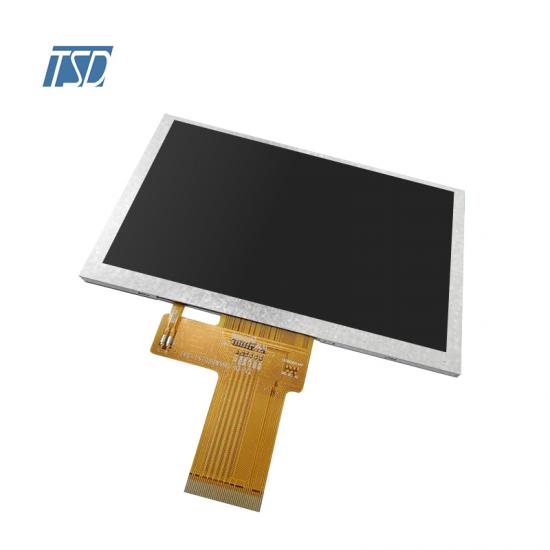

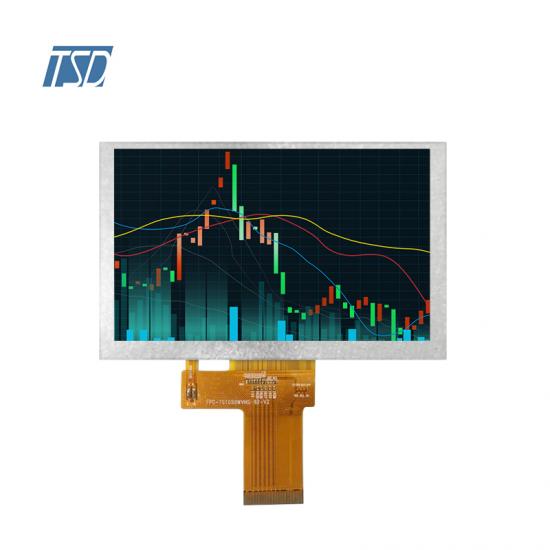

TSD 5 inch tft lcd display module 800x480 with LVDS interface

  • Model Name: TST050WVHS-92B
  • LCD Type: 5 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 650 cd/m2
  • Driver IC: ST7262A
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃





Description:



TST050WVHS-92B is 800x480 resolution 5 inch tft lcd module with LVDS interface. Outline dimension of LCM is 120.7x75.8x2.95mm, LCD active area is 108x64.8mm. It's IPS display with full viewing direction, LCD driver IC is ST7262A, standard brightness is around 500 cd/m2. Operating temperature is -30 to 80 degree, storage temperature is -30 to 80 degree.




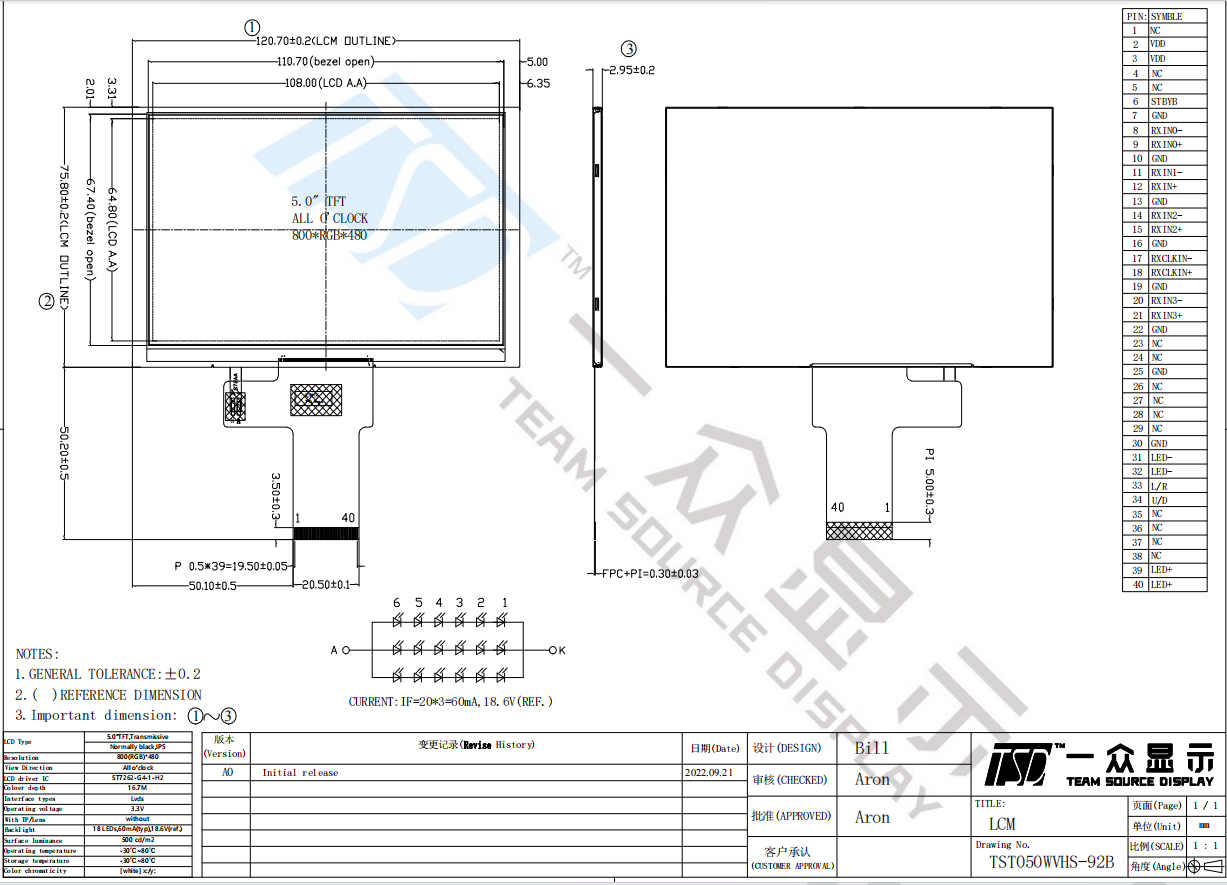

Drawing:



5 inch tft lcd


Specifications:



General Specification
Part No.  TST050WVHS-92B
Outline Dimension(mm)  120.7x75.8x2.95
Active Area(mm) 108x64.8
Resolution(dots) 800x480
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800(H)xRGBx480(V)
Touch panel  without
Brightness 650 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 5 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface LVDS
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 NC Common voltage
2 VDD Power voltage for digital circuit
3 VDD Power voltage for digital circuit
4 NC No connect
5 NC No connect

6

STBYB STBYB=1,Normal optationSTBYB=0,Standby mode.
7 GND Power ground
8 RXIN0- DE/SYNC mode select
9 RXIN0+ Data input enable
10 GND Power ground
11 RXIN1- Negative LVDS differential data input
12 RXIN1+ Positive LVDS differential data input
13 GND Power ground
14 RXIN2- Negative LVDS differential data input
15 RXIN2+ Positive LVDS differential data input
16 GND Power ground
17 RXCLKIN- Negative LVDS differential clock input
18 RXCLKIN+ Positive LVDS differential clock input
19 GND Power ground
20 RXIN3- Negative LVDS differential data input
21 RXIN3+ Positive LVDS differential data input
22 GND Power ground
23~24 NC No connect
25 GND Power ground
26~29 NC No connect
30 GND Power ground
31~32 LEDK LED Cathode
33 L/R Horizontal inversion
34 U/D Vertical inversion
35~38 NC No connect
39~40 LEDA LED Anode




Features:



TSD is committed to becoming a leader in smart vehicle displays and solutions. TSD's automotive displays cover products from 3.5 inches to 15 inches, including car center controls, instruments, rearview mirrors, audio-visual entertainment, head-up displays and other series. They feature high contrast, high color gamut, high integration (TDDI), narrow borders, and high Reliability and other characteristics. It has established project cooperation with dozens of domestic and foreign car manufacturers to provide customers with diversified, convenient and fast one-stop services, and is committed to becoming customers' closest partner.

  •
