TSD high definition 1920×1080 resolution 13.3 inch all viewing angle TFT LCD Display

  • Model Name: TST133FHBH-Z01
  • LCD Type: 13.3 inch TFT LCD display
  • Resolution: 1920*1080
  • Viewing angle: IPS all viewing angle
  • Brightness: 200 cd/m2
  • Interface: eDP
  • Touch Screen: without
  • Operating Temperature: -0 ~ +50℃
  • Storage Temperature: -20 ~ +60℃





Description:

TSD TFT item number TST133FHBH-Z01 is 13.3 inch, IPS TFT LCD, 1920×1080 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.



Specification
Part No. 13.3 inch IPS TFT
Outline Dimension(mm) 306.20x190.62x2.50
Active Area(mm)
293.76x165.24
Resolution(dots) 1920*RGB*1080
Operating temperature(°C)

-0~+50

Storage temperature(°C) -20~+60
Number of Pixel(pixels) 1920RGB(H)xRGBx1080(V)
Touch panel without/customization
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 13.3 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface Digital
Module lifetime(Hours) 50,000-100,000

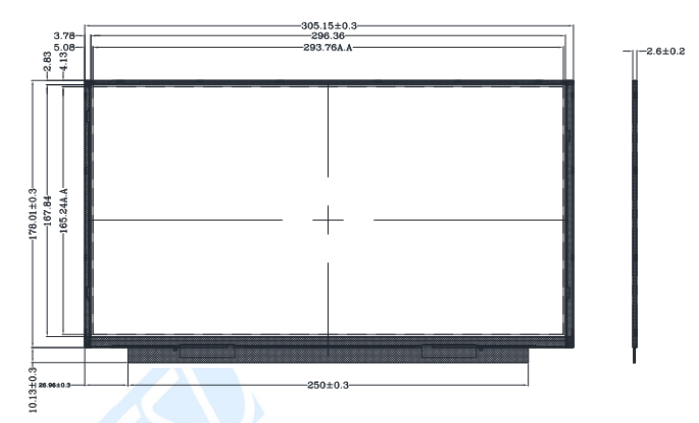

Drawing:

Interface Description:

Pin No.  Symbol Description
1 NC NC(Not use)
2 H GND high speed Ground
3 LANE1 N complement signal link lane 1
4 LANE1 P true  signal link lane 1
5 H GND high speed Ground
6 LANEO N

eDP RX Channel 0 Negative

7 LANEO P eDP RX Channel 0 Positive
8 H GND Ground
9 AUX CH P eDP AUX CH Positive
10 AUX CH N eDP AUX CH Negative
11 H GND high speed Ground
12 LCD VCC Power Supply, 3.3V (typ.)
13 LCD VCC Power Supply, 3.3V (typ.)
14 BIST Panel self test enable
15 H GND Ground
16 H GND Ground
17 HPD HPD Signal
18 BL GND High Speed Ground
19 BL GND High Speed Ground
20 BL GND High Speed Ground
21 BL GND High Speed Ground
22 BL EN Backlight on/off Control pin
23 BL PWM Back light PWM Dimming
24-25 NC No Connection
26-29 BL PWR Backlight power
30 NC No Connection

Applications:



For our 13.3 inch LCD display TST133FHBH-Z01, it's widely using in advertizing/monitor/ tablet application.

Product Features:

1.13.3 inch 1920*1080 res. with 30 pins LVDS interface

2. IPS lcd full viewing angle

3.FHD high definition

4.high contrast 3000:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
