TSD 13.3 inch full HD 1920×1080 resolution IPS TFT LCD Display with EDP interface

  • Model Name: TST133FHPD-03C
  • LCD Type: 13.3 inch TFT LCD display
  • Resolution: 1920*1080
  • Viewing angle: IPS all viewing angle
  • Brightness: 190 cd/m2
  • Interface: eDP
  • Touch Screen: with Pcap
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:

TSD TFT item number TST133FHPD-03C is 13.3 inch, IPS TFT LCD, 1920×1080 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.



Specification
Part No. 13.3 inch IPS TFT
Outline Dimension(mm) 306.20x190.62x2.50
Active Area(mm)
293.76x165.24
Resolution(dots) 1920*RGB*1080
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1920RGB(H)xRGBx1080(V)
Touch panel without/customization
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 13.3 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface Digital
Module lifetime(Hours) 50,000-100,000

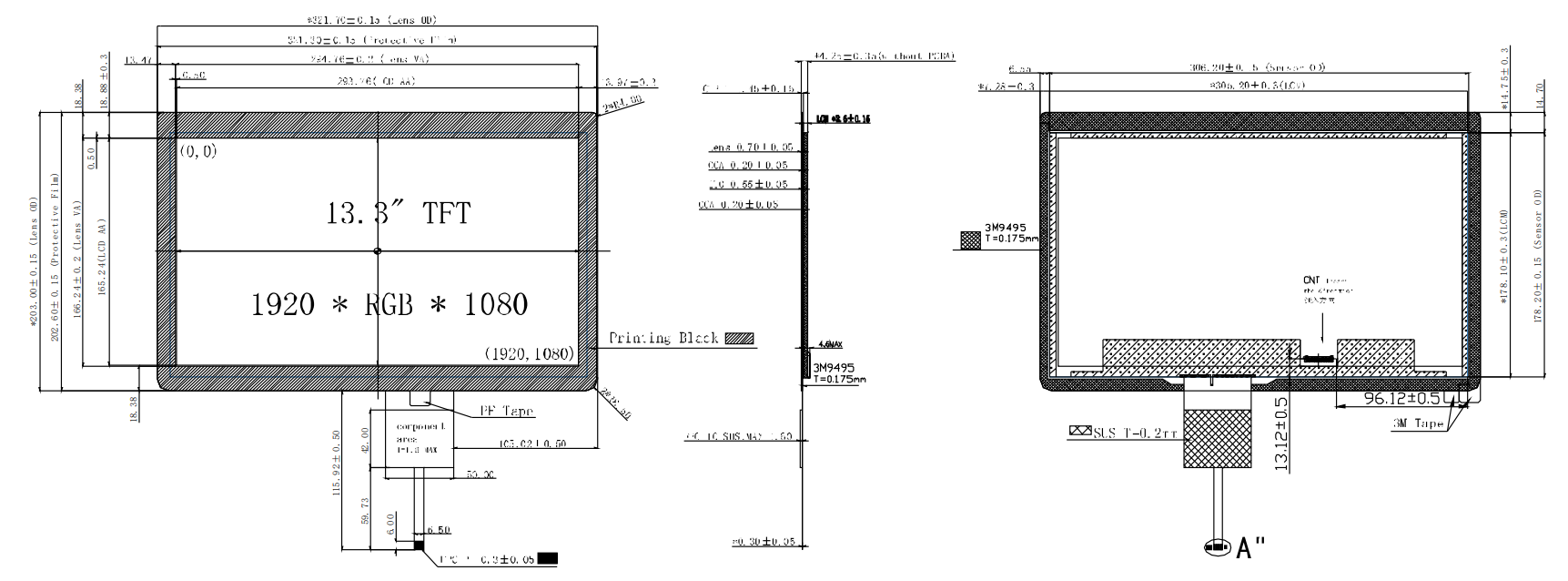

Drawing:

Interface Description:

Pin No.  Symbol Description
1 NC NC(Not use)
2 H GND high speed Ground
3 LANE1 N complement signal link lane 1
4 LANE1 P true  signal link lane 1
5 H GND high speed Ground
6 LANEO N

eDP RX Channel 0 Negative

7 LANEO P eDP RX Channel 0 Positive
8 H GND Ground
9 AUX CH P eDP AUX CH Positive
10 AUX CH N eDP AUX CH Negative
11 H GND high speed Ground
12 LCD VCC Power Supply, 3.3V (typ.)
13 LCD VCC Power Supply, 3.3V (typ.)
14 NC nc( not use)
15 H GND Ground
16 H GND Ground
17 HPD HPD Signal
18 LED-1 Backlight led-
19 LED-2 Backlight led-
20 LED-3 Backlight led-
21 LED-4 Backlight led-
22-27 NC No Connection
28 BL_PWR Backlight power
29 BL_PWR Backlight power
30 NC No Connection

Applications:



For our 13.3 inch LCD display TST133FHPD-03C, it's widely using in industrail grade application.

Product Features:

1.13.3 inch 1920*1080 res. with 30 pins LVDS interface

2. IPS lcd full viewing angle

3.FHD high definition

4.high contrast 3000:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
