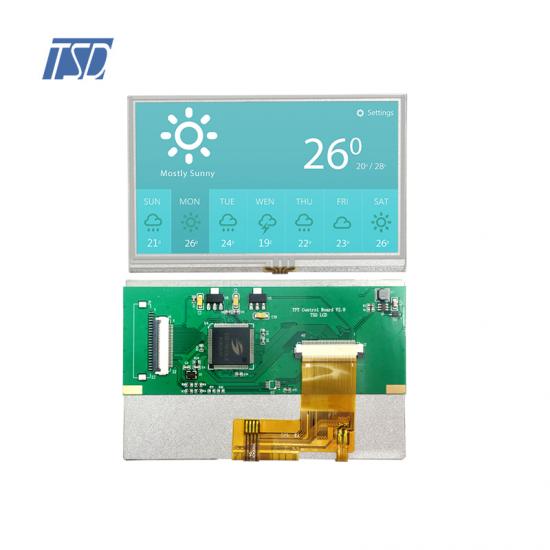

TSD 4.3 inch tft lcd SSD1963 board with Resistive Touch Screen Controller



  • Model Name: TSM043WQHS-72P
  • LCD Type: 4.3 inch IPS TFT display
  • Resolution: 480x272
  • Viewing angle: All o'clock
  • Brightness: 560~600 cd/m2
  • Driver IC: SSD1963
  • Interface: MCU
  • Touch Screen: with Resistive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST043WQHS-72P is a transmissive type color active matrix liquid crystal display (LCD) which use amorphous thik film transistor (TFT) as switching devices. This 4.3 inch LCD is composed of a TFT LCD panel, driver IC, FPC, and LED backlight unit, and a resistive touch screen to driving the circuit. The active display area is 4.3 inch diagonally measured and the native resolution is 480*272 WQVGA.

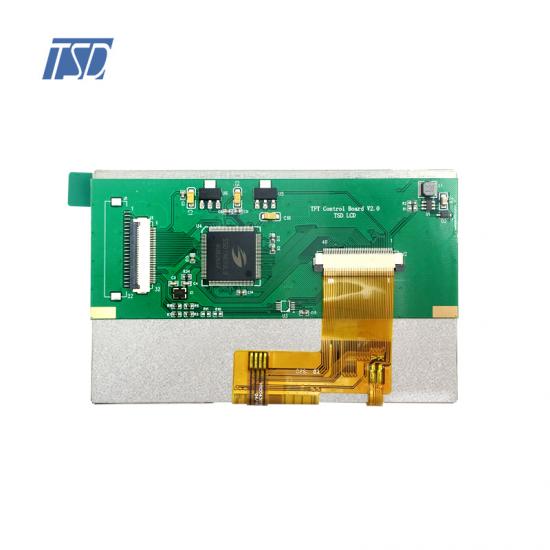

This model is coming out with MCU interface, driving by the SSD1963 controller board on the back side of display. Except for this 4.3 inch, we also have the other SSD1963 solution, such as 5 inch, 7 inch etc., customized design are available in TSD.

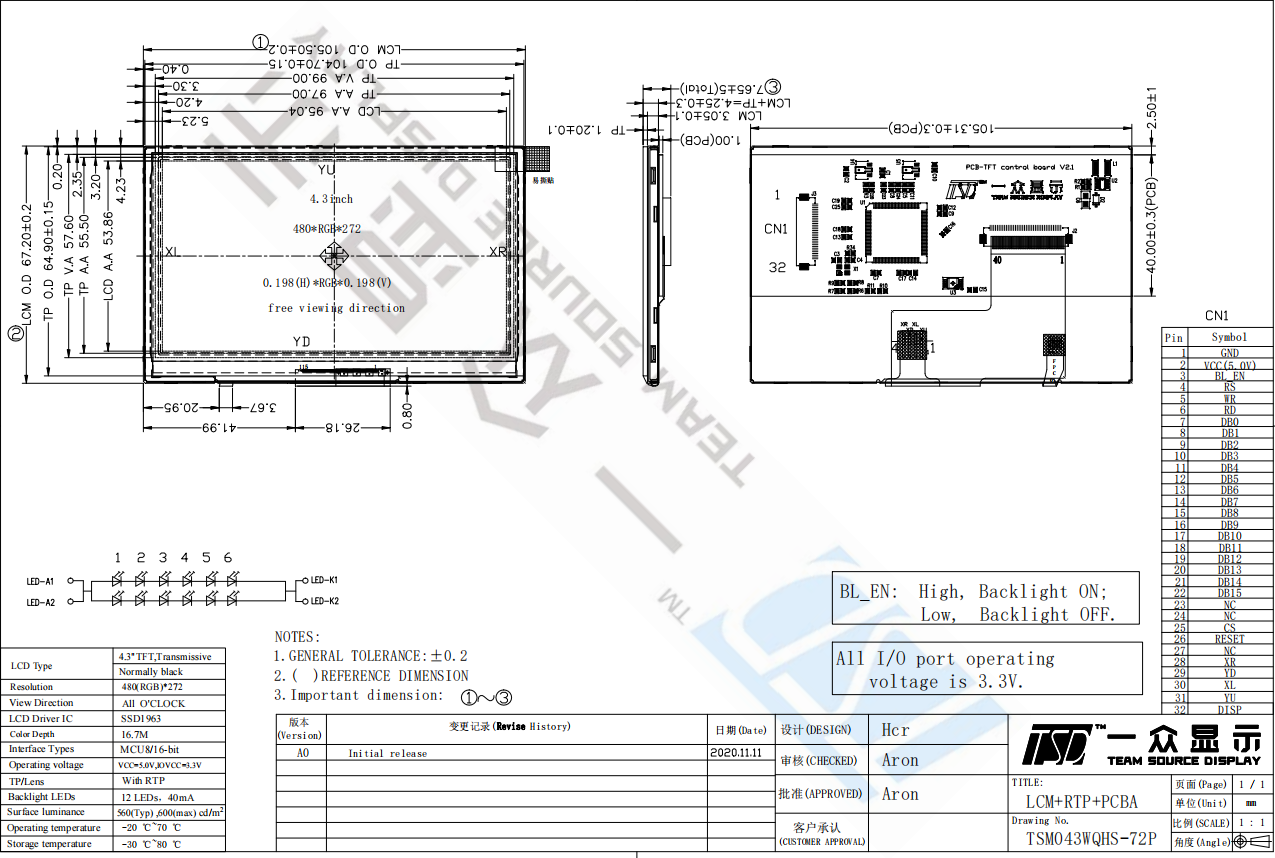

Drawing:




Specifications:



General Specification
Part No.  TSM043WQHS-72P
Outline Dimension(mm)

105.5(W)x67.2(H)x7.65(D)

Active Area(mm) 95.04(W) x 53.83(H)
Resolution(dots) 480x (RGB) × 272
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480RGB(H)xRGBx272V)
Touch panel  RTP
Driver IC SSD1963
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 Ground System Ground.(OV)
2 VCC (5V) Power supply +5.5V
3 BL_EN High, Backlight ON; Low, Backlight OFF
4 RS Data/Command Selection pin
5 WR Write signal
6 RD Read signal
7~22 DB0~DB15 MCU16-bit Data Bus
23 NC Not connection
24 NC Not connection
25 CS Chip select signal
26 RESET Reset input signal
27 NC Not connection
28 XR The touch panel × right
29 YD The touch panel Y down
30 XL The touch panel X left
31 YU The touch panel Y up
32 DISP

Standby mode control.(Normally pull high)

DISP="L", enter standby mode for power saving. Timingcontroller and source driver will turn off, all outputs are Hi-Z.DISP=H", normal operation.






Features:



SSD1963 is produced by Solomon, it's the display driver IC for TFT true color LCD display controller, integrates a 1215 KB frame indicator and supports the display of 24-bit true color images with 864*480 pixel. The chip supports direct inerconnection with ordinary RGB TFT LCD, and the color depth reaches 24 bits per pixel. Its specific features are as follows: integrated 1215K frame storage RAM, support TFT 18/24 bits RGB LCD interface; integrated PWM to adjust backlight brightness; programmable brightness, contrast and saturation; can be connected to MCU through interfaces of different widths, the width can be 8/9/16/18/bit; internal integration Clock generator; 4 GPIOs, can simulate different interfaces; core voltage +1.2V, and can work in sleep mode; IO and LCD power supply voltage is 1.65~3.6V.
