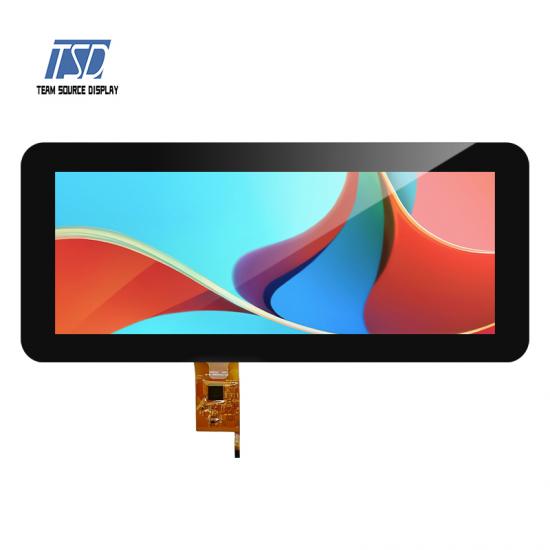

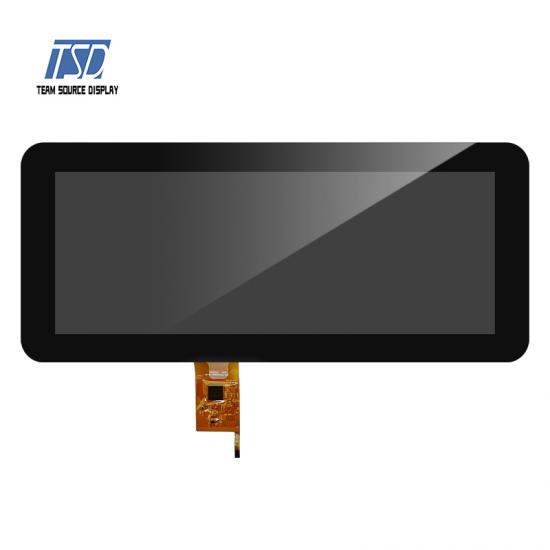

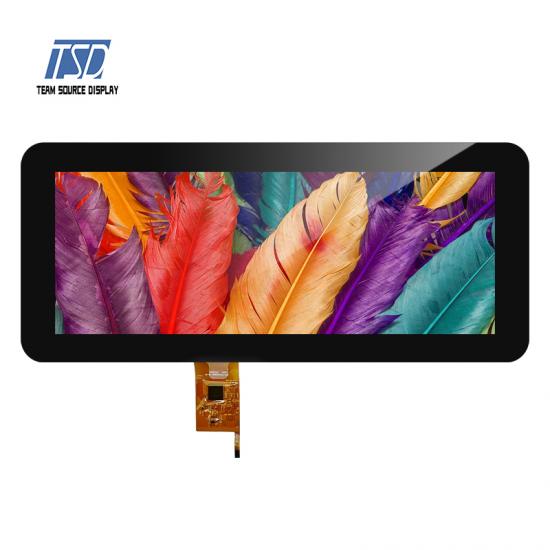

12.3 inch 1920X720 resolution Automotive Grade LCD Display Module

12.3 inch 1920X720 resolution lcd screen display

 12.3 inch 1920X720 resolution Automotive Grade LCD screen display

Specification
LCD type TFT, Transmissive
Display type 12.3 inch TFT lcd qvga, 16.7M color, normally black
Driver element a-si TFT Active matrix
Outline Dimension(mm) 302.53x123.54x6.51
A.A.(mm) 292.03x109.51
Driver IC -
Item 3.5 inch tft lcd panel with zif fpc connector
Resolution(dots)_ 1920*RGB*720
Viewing Direction ALL
Operating temperature(°C) -30-85
Storage temperature(°C) -40-90
Number of Pixel(pixels) 1920(H)x RGB x 720(V)
Surface Luminance 1000-1200
Operating Volatge 3.3v
Pixel arrangement RGB Stripe
Display mode Normally black
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 36 LEDs, 360mA, 27V
Touch screen
without
Interface LVDS
Module lifetime(Hours) -
