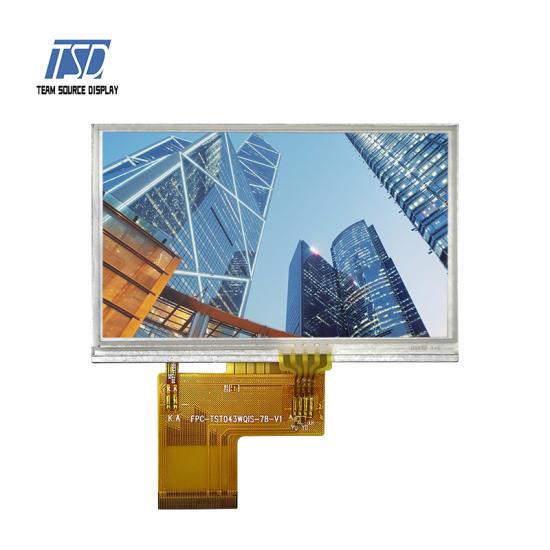

TSD 4.3 inch 480x272 TN LCD Module without touch panel

  • Model Name: TST043WQBS-37
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 480x272
  • Viewing angle: 12 o'clock
  • Brightness: 1000 cd/m2
  • Driver IC: ST7282
  • Interface: RGB 24 bits interface
  • Touch Screen: without touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

TST043WQBS-37 is 4.3 inch 480x272 resolution RGB 24 bit LCD display module. Backlight is 1000 nits, White LEDs is 16, backlight current is 40mA and backlight voltage is 24.85V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is ST7282, viewing direction is 12 o'clock, color depth is 16.7M, white backlight and transmissive mode.


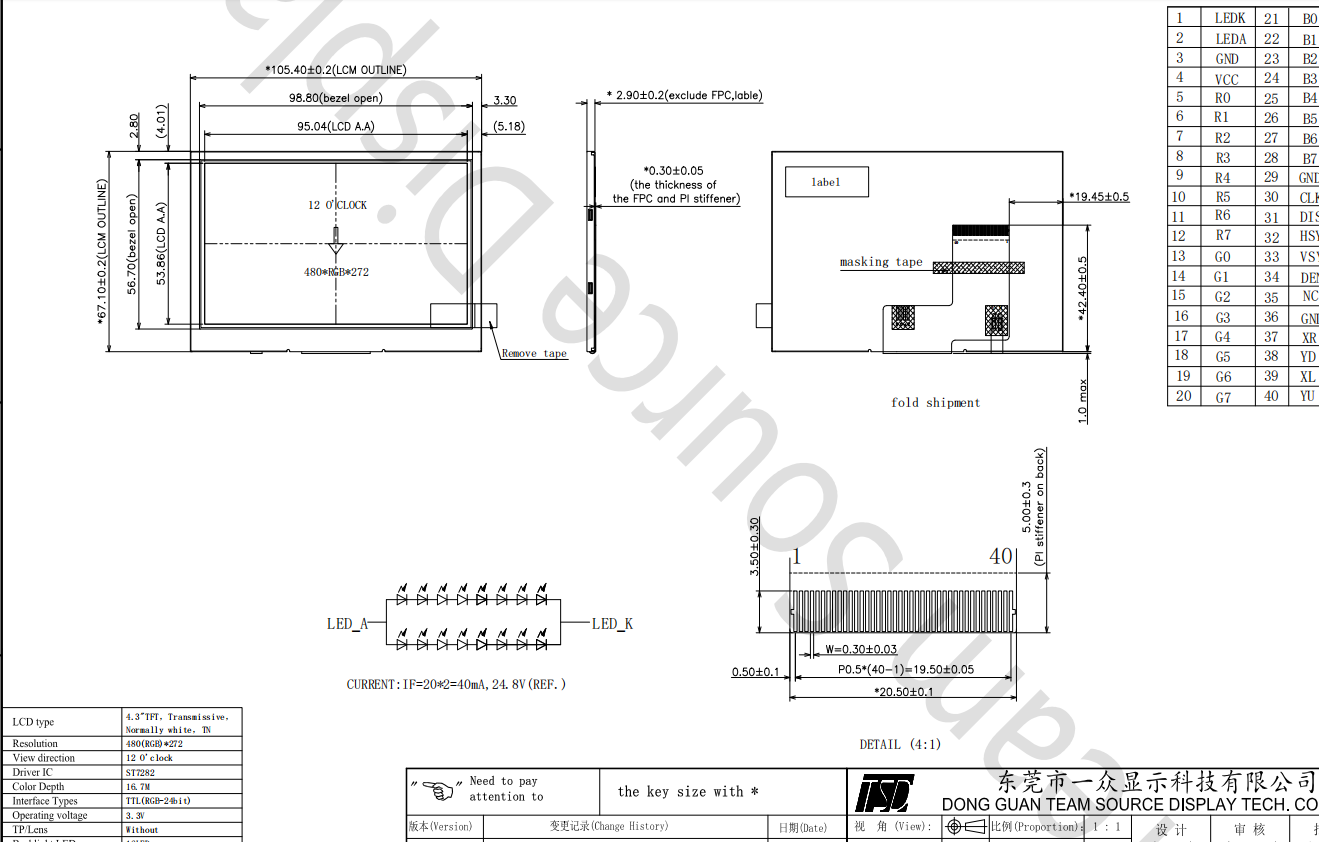

Drawing:

4.3 inch TN lcd display


Specifications:



General Specification
Part No.  TST043WQBS-37
Outline Dimension(mm)  105.5x67.2x2.9
Active Area(mm) 95.04x53.86
Resolution(dots) 480x272
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480(H)xRGBx272(V)
Touch panel  without CTP
Driver IC ST7282
Pixel arrangement RGB-stripe
Display mode Normal white, TN, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 24 bits
Module lifetime(Hours) 20,000-40,000





Pins Description
Pin No.  Symbol Description
1 LED- Cathode of LED backlight
2 LED+ Anode of LED backlight
3 GND Power ground
4 VDD Power voltage
5-12 R0-R7 Red data
13-20 G0-G7 Green data
21-28 B0-B7 Blue data
29 GND System Ground.(0V)
30 DCLK Pixel clock
31 DISP Display on/off
32 HSYNC Horizontal sync signal
33 VSYNC Vertical sync signal
34 DE Data enable
35 NC No connect
36 GND Power ground
37 XR No connect
38 YD No connect
39 XL No connect
40 YU No connect




Applications:



For our 4.3 inch 480x272 LCD display TST043WQBS-37, normally used in smart home product, such as smart thermostat, coffee machine, washing machine.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
