Description:

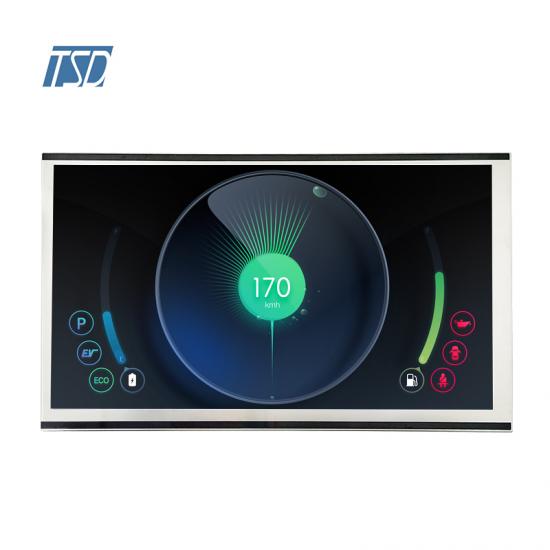

TST090WXHS-06 is 9 inch 1280x720 resolution IPS tft lcd display, coming out with 60 pins LVDS interface. It's landscape screen, normally black, transmissive TFT LCD module. Outline dimension of LCM is 210.7x126.5x5.0mm, active area is 198.91x111.89mm. Display contrast is 1000:1, luminance is 800 cd/m2 typically. Operating temperature is -40 to +85 degree, storage temperature is -40 to +90 degree.

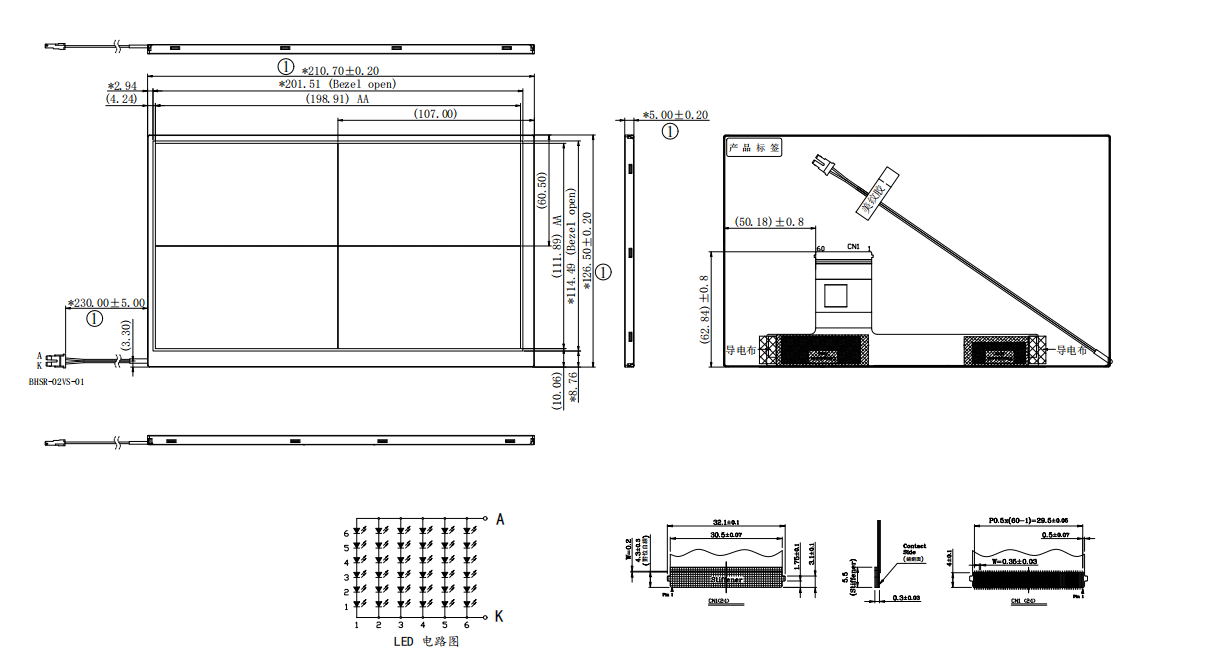

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST090WXHS-06 | |
| Outline Dimension(mm) | 210.7x126.5x5.0mm | |
| Active Area(mm) | 198.91x111.89mm | |
| Resolution(dots) | 1280x720 | |
| Operating temperature(°C) | -40 ~ +85°C | |
| Storage temperature(°C) | -40 ~ +90°C | |
| Number of Pixel(pixels) | 1280(H)xRGBx480(V) | |
| Touch panel | without | |
| Brightness | 800 cd/m2 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 9 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | LVDS | |
| Module lifetime(Hours) | 30,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | AGND | Analog ground |
| 2 | AVDD | Analog power |
| 3 | DVDD | Digital power |
| 4 | GND | Ground |
| 5 | NC | No connection |
| 6 | DVDD |
Digital power
|
| 7 | GND |
Ground
|
| 8~14 | NC | No connection |
| 15 | GND | Ground |
| 16 |
DVDD_LVDS
|
LVDS power |
| 17 | GND | Ground |
| 18 | PIND3 |
Positive LVDS differential data input
|
| 19 | NIND3 |
Negative LVDS differential data input
|
| 20 | GND | Ground |
| 21 |
PINC
|
Positive LVDS differential clock input
|
| 22 |
CINC
|
Negative LVDS differential clock input |
| 23 | GND | Ground |
| 24 | PIND2 |
Positive LVDS differential data input
|
| 25 | NIND2 |
Negative LVDS differential data input
|
| 26 | GND | Ground |
| 27 | PIND1 |
Positive LVDS differential data input
|
| 28 | NIND1 | Negative LVDS differential data input |
| 29 | GND | Ground |
| 30 | PIND0 |
Positive LVDS differential data input
|
| 31 | NIND0 | Negative LVDS differential data input |
| 32 | GND | Ground |
| 33 |
GND_LVDS
|
Digital ground |
| 34 | GRB | Global reset pin. Active low to enter reset state. Suggest to connecting with an RC reset circuit forstability. Normally pull high. (R=10KΩ , C=0.1µF) |
| 35 | STBYB | Standby mode, normally pull high. STBYB=”1”, normal operation. STBYB=”0”,timing control, source driver will turn off, all output are high-Z |
| 36 | SHLR |
Left or right display control
|
| 37 | DVDD | Digital power |
| 38 | UPDN |
Up / down display control
|
| 39 | AGND | Analog ground |
| 40 | AVDD |
Analog power
|
| 41~42 | NC | No connection |
| 43 | GND | Digital ground |
|
44 |
DVDD | Digital power |
| 45 | GND | Ground |
| 46 | NC | No connection |
| 47~50 | NC | Let it open. HSD used for SPI function |
| 51 | GND | Please connect to ground. (HSD used for EEPROM function) |
| 52 | Link2-NC | Negative LVDS differential data input |
| 53 | GND | Digital groun |
| 54 | DVDD | Digital power |
| 55 | SELB | 6bit/8bit mode select, SELB = “1”, LVDS input data is 8bits， SELB = “0”, LVDS input data is 6bits |
| 56 | VGH | Positive power for TFT |
| 57 | DVDD | Digital power for Gate IC |
| 58 | VGL | Negative power for TFT |
| 59 | GND | Ground |
| 60 | BIST | Normal operation/BIST pattern select. BIST="1": BIST mode. BIST="0": Normal operation. |
Features:
• Display Resolution: 1280 x RGB x 720
• Wide viewing angle (U/D/L/R): Free viewing direction
• Display up to 16.7M colours
LVDS interface
• Anti-glare front polarizer and front polarizer absorption axis angle is horizontal, rear polarizer absorption axis angle is vertical.
• White LED backlight
• “RoHS” compliance.
